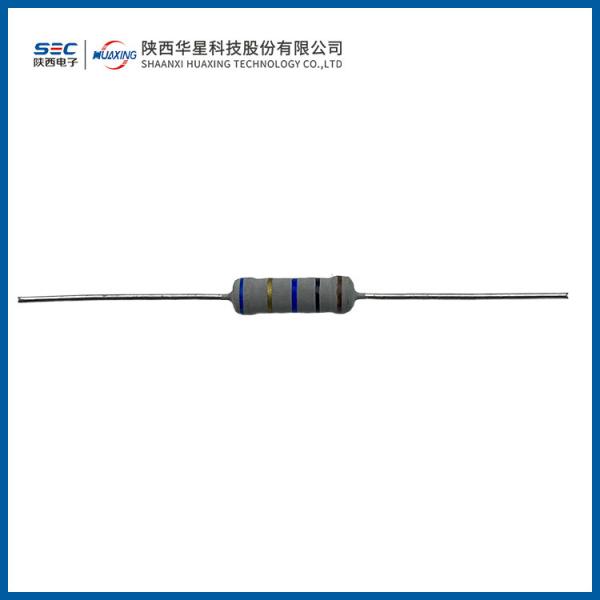

RI42 Type Glass Enamel Resistor
RI42 Type Glass Enamel Resistor
RI42 Type Glass Enamel Resistor
RI42 Type Glass Enamel Resistor
Specifications
Brand Name :
HUAXING
Model Number :
RI42
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Description

RI42 type glass enamel resistor

1. Purpose:

good temperature characteristics, high pressure resistance, good pulse resistance, used in DC, AC and pulse circuits.

2. Coating:

coated with gray insulating paint.

3. External size:

RI42 Type Glass Enamel Resistor

power (W)

ΦDmax

(mm)

 Lmax(mm) Φd(mm) l(mm)
0.5 2.7 7.0 0.5±0.1 28±3
1 4.0 10.0 0.56±0.1 28±3
2 5.5 13.0 0.7±0.1 28±3
3 6.5 16.0 0.7±0.1 28±3
5 7.5 18.5 0.7±0.1 35±3
7 9.5 26.0 0.7±0.1 35±3

4. Main technical indicators:

Rated power (W) at 70℃

temperature coefficient

ppm/℃

 Resistance range (Ω) Resistance tolerance deviation Component limit voltage (V) Insulation voltage (V)
1/2 ±300 1K-33M

±1%

±2%

±5%

 350 500
1 1K-56M 500 750
2 1K-56M 700 750
3 1K-100M 700 1000
5 1K-100M 1000 1000
7 1K-100M 1000 1000
