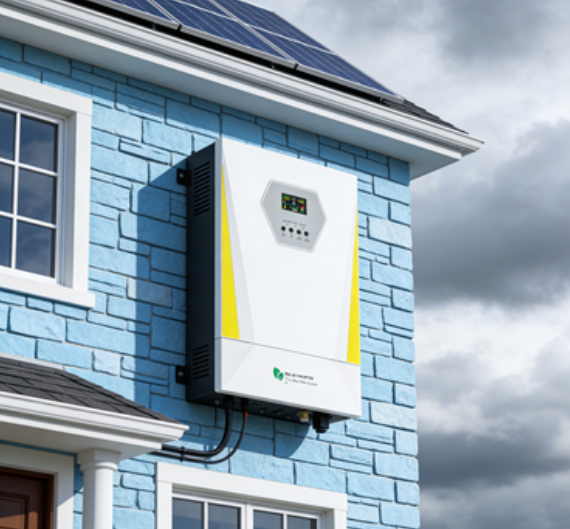

6.2kW Grid Tie Inverter Wide PV Input 100A Solar Power Inverter For Home
6.2kW Grid Tie Inverter Wide PV Input 100A Solar Power Inverter For Home
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$300-500
Payment Terms :
L/C,D/A,D/P,Western Union,T/T
Input Frequency  :
50/60Hz±5%
LCD Interface :
can display operating mode/load/input/output
Operating Temperature :
-10°C-50°C
Operating Humidity :
-10°C-60°C
Noise :
≤50dB
Max AC Charging Current :
100A
Description
6.2kW Grid-tie Solar Inverter
High-efficiency grid-tie solar inverter with wide PV input voltage range for home energy storage applications.
Product Highlights
  • Wide PV Input Voltage Range - Supports 60-500V input, compatible with various solar panel configurations for enhanced application adaptability
  • External WiFi Module - Enables remote monitoring and control through wireless networks
  • High Conversion Efficiency - Delivers superior energy conversion with minimal power loss, optimizing photovoltaic system performance
  • Multiple Battery Type Compatibility - Flexible energy storage system configurations to meet diverse application requirements
  • Sturdy & Compact Structure - Lightweight, durable casing design for easy installation and space efficiency
Application Scenarios
  • Small household photovoltaic systems for on-site self-consumption and surplus power storage
  • Remote area power solutions for villages and mountainous regions with limited grid access
  • Emergency backup power supply for households and small commercial establishments
Additional Advantages
  • Factory Direct Supply - Direct manufacturing and order processing for stable, efficient supply chain
  • Flexible Production - Support for small-batch trial orders with minimum order quantity of 1 unit
  • Customization Service - Customizable voltage, interfaces, and other parameters to meet specific requirements
6.2kW Grid Tie Inverter Wide PV Input 100A Solar Power Inverter For Home
Technical Specifications
Model CH-ED6248EMH
AC Input Voltage 220VAC (Normal) / 110VAC (Customize)
Input Voltage Range 90-280VAC±3V (Normal Mode)
170-280VAC±3V (UPS Mode)
Input Frequency 50/60Hz±5%
Rated Power 6200W
Output Voltage 220/230/240VAC±5%
Output Frequency 50/60Hz±0.1%
Output Wave Pure Sine Wave
Transfer Time ≤10ms (UPS) / ≤20ms (INV)
Peak Power 12400VA
Grid Voltage Range 170-265VAC
Power Factor Range >0.99
Peak Efficiency (DC/AC) 98%
Battery Rated Voltage 48Vdc
Max PV Input Power 6200W
MPPT Input Voltage Range 60-500Vdc
Max PV Input Voltage 500Vdc
Max PV Input Current 18A
Operating Temperature -10°C to 50°C
Noise Level ≤50dB
