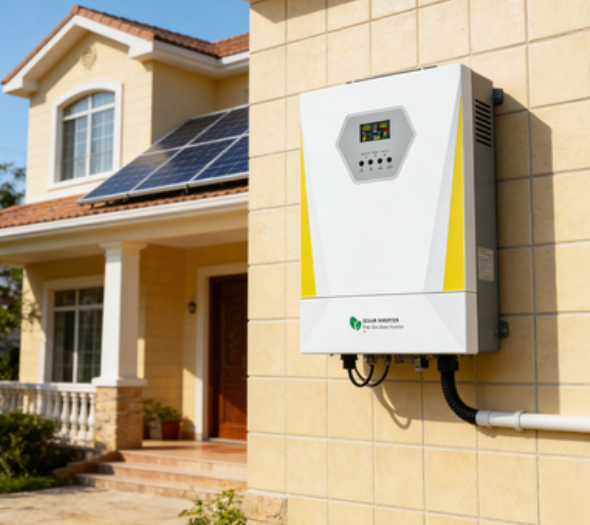

220VAC 110VAC Grid Tie Solar Inverter 4kW Home Solar Inverter
220VAC 110VAC Grid Tie Solar Inverter 4kW Home Solar Inverter
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$220-$500
Payment Terms :
L/C,D/A,T/T,Western Union,D/P
Output Voltage :
220/23024VVAC
Rated Power  :
4000W
Noise :
≤50dB
RS232 :
Baud Rate 2400
Max PV Charging Current :
120A
Max PV Input Voltage :
500Vdc
Description
4kW Grid-Tie Solar Inverter for Home Energy Storage System
Product Highlights
  • Wide PV Input Voltage Range: Supports 50-400V PV input, compatible with solar panels of different powers with strong adaptability
  • External WiFi Module: Supports external WiFi, enabling remote monitoring and operation of the device via wireless network
  • High Conversion Efficiency: Features high conversion efficiency with low power loss, improving the overall energy efficiency of the PV energy storage system
  • Compatible with Multiple Battery Types: Flexible energy storage configuration options
  • Robust and Compact Design: Adopts a lighter and stronger body design, easy to install and space-saving
Application Scenarios
  • Suitable for small household PV systems to achieve self-consumption and surplus power storage, reducing reliance on mains power
  • Supplies power to small household appliances and lighting equipment in remote areas such as villages and mountainous regions with inconvenient mains power access
  • Used as emergency power supply for households and small shops to ensure operation of critical equipment during mains power failures
Additional Features

Factory Direct Supply: Own production base with direct order processing to ensure supply efficiency

Flexible Production Capacity: Support for small batch trial orders (MOQ 1 unit)

Customization Service: Product parameters (such as voltage, interface) can be customized according to customer requirements

220VAC 110VAC Grid Tie Solar Inverter 4kW Home Solar Inverter
Technical Specifications
Model GD4024SMH
AC Input Voltage AC Input: 220VAC (Normal) / 110VAC (Customize)
Input Voltage Range: 90~280VAC±3V (Normal Mode)
170~280VAC±3V (UPS Mode)
Input Frequency 50/60Hz±5%
Rated Power 4000W
Photovoltaic Inverter Output Power 4500W
Output Voltage 220/230/240VAC±5%
Output Frequency 50/60Hz±0.1%
Output Wave Pure Sine Wave
Transfer Time ≤10ms (UPS Mode) / ≤20ms (INV Mode)
Peak Power 8000VA
Overload Ability Battery Mode: 1s@105%-150% Load
2s@150%-200% Load
400ms@200% Load
Grid-connected Operation Output Voltage: 220/230/240VAC
Grid Voltage Range: 170-265VAC
Grid Frequency Range: 49-51±Hz/59-61±Hz
Rated Output Current: 17.4A
Power Factor Range: >0.99
(DC/AC) Peak Efficiency: 98%
Battery Rated Voltage: 24Vdc
Configurable Voltage: 28.2Vdc
Charging Voltage: 27Vdc
Charger PV Charging Mode: MPPT
Max PV Input Power: 6500W
MPPT Input Voltage Range: 60-500Vdc
Optimal Vmp Range: 300-400Vdc
Max PV Input Voltage: 500Vdc
Max PV Input Current: 27A
Max PV Charging Current: 120A
Max AC Charging Current: 100A
Max Charging Current: 120A
Display LCD Interface: can display operating mode/load/input/output
Interface RS232: Baud Rate 2400
Expansion Slot Communication Interface: Lithium Battery BMS Communication Card, WIFI/Pitch2.54mm
Parallel interface: Not support Parallel
Ambient Temperature Operating Temperature: -10°C-50°C
Operating Environment Humidity: -10°C-60°C
Storage Temperature: 20%-90% Non Condensing
Noise ≤50dB
