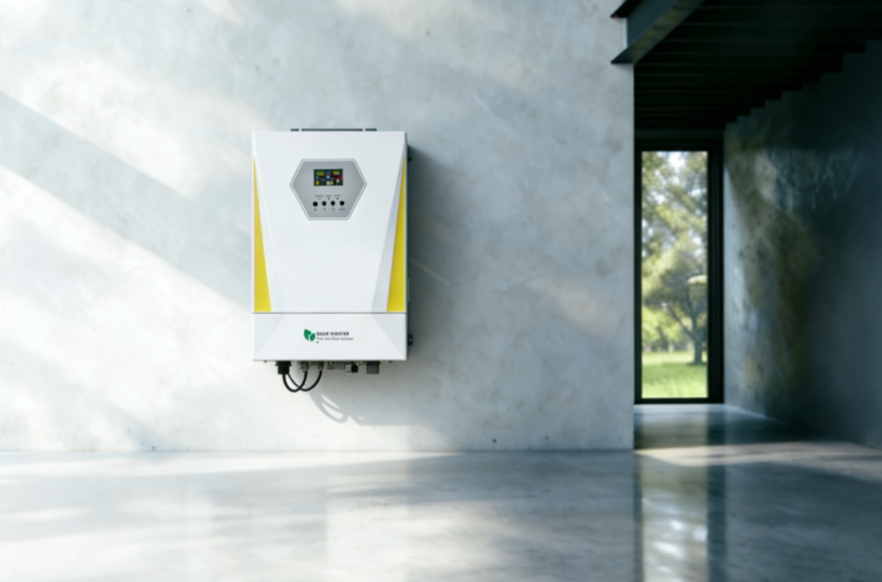

48Vdc Grid Tied House Solar Inverter 6200W Pure Sine Wave Inverter
48Vdc Grid Tied House Solar Inverter 6200W Pure Sine Wave Inverter
Specifications
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$300-500
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Rated Voltage :
48Vdc
Float Charging Voltage (Adjustable) :
54Vdc
Max PV Input Power :
6200W
Max PV Input Voltage :
500Vdc
Max AC Charging Current :
100A
RS232 :
Baud Rate 2400
Description

6200W Solar Inverter – Pure Sine Wave with MPPT Controller, Grid-Tied Support for Home & Commercial Use

Product Description
  • Wide PV Input Voltage Range – Supports 60–500VDC input, compatible with various solar panel configurations for enhanced application adaptability
  • External WiFi Module – Enables remote monitoring and control through wireless networks
  • High Conversion Efficiency – Delivers up to 98% peak efficiency with minimal power loss, optimizing photovoltaic system performance
  • Multiple Battery Type Compatibility – Supports lithium battery BMS communication, flexible energy storage system configurations to meet diverse application requirements
  • Sturdy & Compact Structure – Lightweight, slim body design for easy installation and space efficiency
  • Pure Sine Wave Output – 6200W rated power, 12400VA peak power, suitable for air conditioners, pumps, refrigerators, and other inductive loads
Product Features
  • Low No-Load Loss: Lower than high-frequency machines with the same power rate
  • Pure Sine Wave Output: Suitable for different loads
  • Adjustable Parameters: Multiple parameters can be adjusted according to user needs
  • Slim Body: Convenient installation and transportation
  • Battery Reverse Connection Protection with Fuse-Free Switch: Safer installation
  • Built-in MPPT Solar Controller
  • High Output Voltage Precision: Take care of your appliances
  • WiFi / Lithium Battery BMS Communication Support
48Vdc Grid Tied House Solar Inverter 6200W Pure Sine Wave Inverter
Model CH—ED6248EMH
AC Input AC Input Voltage 220VAC (Standard) / 110VAC (Custom)
Input Voltage Range 90~280VAC±3V(Normal Mode)
170~280VAC±3V(UPS Mode)
Input Frequency 50/60Hz±5%
Rated Output Power (Battery Mode) 6200W
Output Rated Output Power (PV Mode) 6200W
Output Voltage 220/230/240VAC±5%
Output Frequency 50/60Hz±0.1%
Output Wave Pure Sine Wave
Transfer Time ≤10ms(UPS Mode)/≤20ms(INV Mode)
Peak Power 12400VA
Overload Ability Battery Mode:1ls@105%-150% Load
2s@150%-200% Load 400ms@200% Load
Grid-connected Operation Output Voltage 220/23024VVAC
Grid-Tied Voltage Range 170-265VAC
Grid-Tied Frequency Range 49-51±Hz/59-61±Hz
Rated Output Curren 26.9A
Power Factor Range >0.99
Peak Efficiency (DC/AC) 98%
Battery Rated Voltage 48Vdc
Constant Charging Voltage (Adjustable) 56.4Vdc
Float Charging Voltage (Adjustable) 54Vdc
Charger PV Charging Mode MPPT
Max PV Input Power 6200W
MPPT Input Voltage Range 60-500Vdc
Optimal VMP Range 400-400Vdc
Max PV Input Voltage 500Vdc
Max PV Input Current 18A
Max PV Charging Current 120A
Max AC Charging Current 100A
Max Charging Current 120A
Display LCD Interface Can display operating mode/load/input/output
Interface RS232 Baud Rate 2400
Expansion Slot Communication Interface Lithium Battery BMS Communication Card, WIFI/Pitch2.54mm
Parallel Interface / Parallel Port Not support Parallel
Ambient Temperature Operating Temperature -10°C-50°C
Operating Humidity -10°C-60°C
Storage Temperature 20%-90% Non Condensing
Noise ≤50dB
