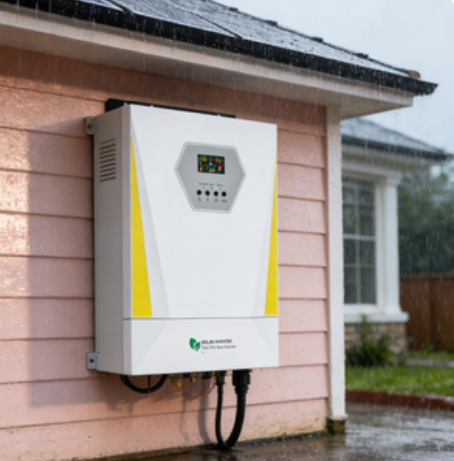

11kW Grid Tie Solar Inverter Household Solar Inverter With External WiFi
11kW Grid Tie Solar Inverter Household Solar Inverter With External WiFi
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$500-700
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Expansion Slot Communication Interface :
Lithium Battery BMS Communication Card, WIFI/Pitch2.54mm
 Max PV Input Power  :
25000W
Optimal VMP Range :
300-400Vdc
Max PV Input Voltage :
500Vdc
Constant Charging Voltage (Adjustable) :
56.4Vdc
Grid-Tied Voltage Range :
170-265VAC
Description

11kW Grid Tie Solar Inverter Household Solar Inverter With External WiFi

11kW Grid-Tie Solar Inverter
High-efficiency grid-tied solar inverter with wide PV input voltage, exceptional conversion efficiency, and external WiFi connectivity. Ideal for residential energy storage and industrial PV-storage-charging integrated systems.
Product Overview
This high-performance 11kW solar hybrid inverter from the ED Series delivers stable and efficient energy conversion for residential energy storage and industrial PV-storage-charging integration. Featuring advanced MPPT technology, pure sine wave output, and flexible grid-tie operation modes.
  • 98% peak conversion efficiency for optimal energy utilization
  • Dual-MPPT charge controller with wide PV input voltage range (60-500VDC)
  • Maximum PV charging power of 6200W
  • 48Vdc battery system with configurable parameters
  • Lithium battery BMS communication support
  • Excellent overload capacity (200% load for 400ms)
  • Comprehensive safety protections including battery reverse connection protection
  • Slim, compact design for easy installation and maintenance
Monitoring & Control
Equipped with LCD display and WiFi remote monitoring capabilities for real-time system performance tracking, parameter adjustment, and fault diagnosis.
Environmental Specifications
Designed for reliable operation in various climate conditions with operating temperature range of -10°C to 60°C, humidity range of 20%-90% non-condensing, and low noise operation (≤50dB).
Technical Specifications
Model CH-ED11048EMH
AC Input Voltage 220VAC (Normal) / 110VAC (Customizable)
Input Voltage Range 90-280VAC±3V (Normal Mode)
170-280VAC±3V (UPS Mode)
Input Frequency 50/60Hz±5%
Rated Power 11000W
Output Rated Power 12000W
Output Voltage 220/230/240VAC±5%
Output Frequency 50/60Hz±0.1%
Output Wave Pure Sine Wave
Transfer Time ≤10ms (UPS) / ≤20ms (INV)
Peak Power 22000VA
Overload Ability Battery Mode: 1s@105%-150% Load
2s@150%-200% Load
400ms@200% Load
Grid-connected Operation Output Voltage: 220/230/240VAC
Grid Voltage Range: 170-265VAC
Grid Frequency Range: 49-51±Hz/59-61±Hz
Rated Output Current: 47.8A
Power Factor Range: >0.99
Peak Efficiency (DC/AC): 98%
Battery Specifications Rated Voltage: 48Vdc
Configurable Voltage: 56.4Vdc
Charging Voltage: 54Vdc
Charger Specifications PV Charging Mode: MPPT
Max PV Input Power: 25000W
MPPT Input Voltage Range: 90-500Vdc
Optimal Vmp Range: 300-400Vdc
Max PV Input Voltage: 500Vdc
Max PV Input Current: 18A/18A
Max PV Charging Current: 150A
Max AC Charging Current: 150A
Max Charging Current: 150A
Display & Interface LCD Interface: Operating mode/load/input/output display
RS232: 2400 Baud Rate
Expansion Slot: Lithium Battery BMS Communication Card, WIFI/Pitch2.54mm
Parallel Support: Yes
Environmental Conditions Operating Temperature: -10°C to 50°C
Operating Environment Humidity: -10°C to 60°C
Storage Temperature: 20%-90% Non-Condensing
Noise: ≤50dB
Manufacturing Advantages
Factory Direct Supply
Own production base with direct order processing ensures stable and efficient supply chain.
Flexible Production
Small-batch trial orders supported with minimum order quantity of 1 unit.
Customization Service
Technical specifications including voltage, interfaces, and other parameters can be customized to meet specific requirements.
