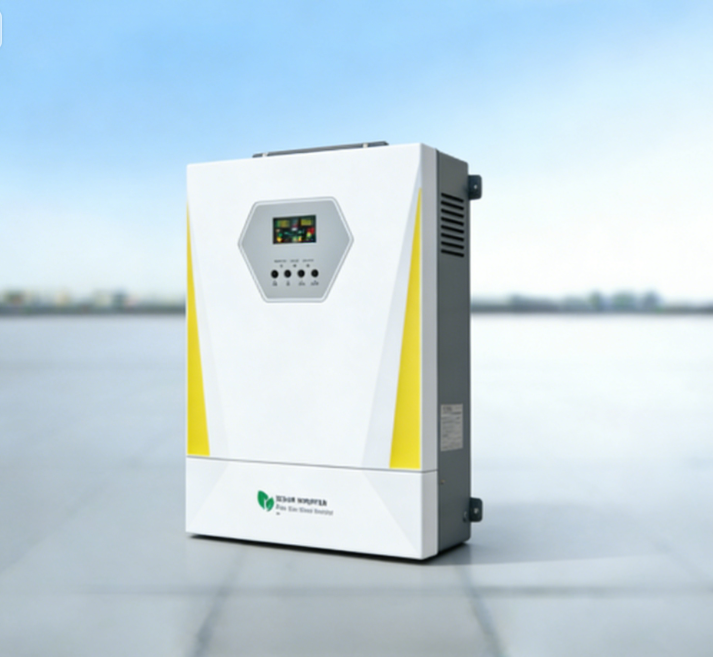

4000W Grid Tie Inverter 4KW Pure Sine Wave Inverter With MPPT Controller For Home
4000W Grid Tie Inverter 4KW Pure Sine Wave Inverter With MPPT Controller For Home
Specifications
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$220-$500
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Rated Output Power (PV Mode) :
4500W
Output Frequency :
50/60Hz±0.1%
Grid-Tied Voltage Range :
170-265VAC
Power Factor Range :
>0.99
Constant Charging Voltage (Adjustable) :
28.2Vdc
Max PV Input Power :
5000W
Description
Grid-tie Solar Inverter – 4KW Pure Sine Wave Inverter with MPPT Controller
The ED Series Grid-tie Solar Inverter delivers 4000W rated output power with 8000VA peak capacity, designed for residential and small commercial applications. Featuring pure sine wave output for broad load compatibility and built-in MPPT solar controller for intelligent power management.
Key Features
  • Low no-load loss for improved energy efficiency
  • Pure sine wave output suitable for sensitive electronics
  • Adjustable parameters for customized operation
  • Slim body design for easy installation and transportation
  • Battery reverse connection protection with fuse-free switch
  • Built-in MPPT solar controller
  • High output voltage precision for appliance protection
  • WiFi and lithium battery BMS communication support
4000W Grid Tie Inverter 4KW Pure Sine Wave Inverter With MPPT Controller For Home
Technical Specifications
Model CH--ED4024EMH
AC Input
AC Input Voltage 220VAC (Standard) / 110VAC (Custom)
Input Voltage Range 90~280VAC±3V (Normal Mode)
170~280VAC±3V (UPS Mode)
Input Frequency 50/60Hz±5%
Output
Rated Output Power (Battery Mode) 4000W
Rated Output Power (PV Mode) 4500W
Output Voltage 220/230/240VAC±5%
Output Frequency 50/60Hz±0.1%
Output Wave Pure Sine Wave
Transfer Time ≤10ms (UPS Mode) / ≤20ms (INV Mode)
Peak Power 8000VA
Overload Ability 1s@105%-150% Load
2s@150%-200% Load
400ms@200% Load
Grid-connected Operation
Output Voltage 220/230/240VAC
Grid-Tied Voltage Range 170-265VAC
Grid-Tied Frequency Range 49-51±Hz/59-61±Hz
Rated Output Current 17.4A
Power Factor Range >0.99
Peak Efficiency (DC/AC) 98%
Battery & Charger
Rated Voltage 24Vdc
Constant Charging Voltage (Adjustable) 28.2Vdc
Float Charging Voltage (Adjustable) 27Vdc
PV Charging Mode MPPT
Max PV Input Power 5000W
MPPT Input Voltage Range 60-500Vdc
Optimal VMP Range 300-400Vdc
Max PV Input Voltage 500Vdc
Max PV Input Current 18A
Max PV Charging Current 120A
Max AC Charging Current 100A
Max Charging Current 120A
Display & Interface
LCD Interface Displays operating mode, load, input, output
RS232 Baud Rate 2400
Expansion Slot Communication Interface Lithium Battery BMS Communication Card, WIFI/Pitch2.54mm
Parallel Interface Not support Parallel
Environmental
Operating Temperature -10°C to 50°C
Operating Humidity 20%-90% Non-Condensing
Storage Temperature -10°C to 60°C
Noise ≤50dB
