11000W Solar Hybrid Inverter Pure Sine Wave Inverter MPPT Charge Controller
11000W Solar Hybrid Inverter Pure Sine Wave Inverter MPPT Charge Controller
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$500-700
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Expansion Slot Communication Interface :
Lithium Battery BMS Communication Card, WIFI/Pitch2.54mm
Transfer Time :
≤10ms（UPS）/≤20ms（INV）
Description
11000W 48V Pure Sine Wave Solar Hybrid Inverter
High-efficiency 11kW solar inverter with 98% peak conversion efficiency, dual-MPPT, pure sine wave output, and grid operation. Ideal for residential energy storage and industrial PV-storage-charging systems.
Product Overview
This high-performance 11kW solar hybrid inverter from the ED Series delivers reliable and efficient energy conversion for residential energy storage and industrial PV-storage-charging integration. It combines advanced MPPT technology, pure sine wave output, and flexible grid-tie operation modes for modern solar energy systems.
Key Features
  • 98% peak conversion efficiency maximizes solar energy utilization
  • Dual-MPPT charge controller with wide PV voltage range (60-500VDC)
  • Maximum PV charging power of 6200W
  • 48Vdc battery system with configurable charging/discharging parameters
  • Robust overload capacity (200% load for 400ms)
  • Battery reverse connection protection with fuse switch
  • LCD display and WiFi remote monitoring capabilities
  • Wide environmental adaptability (-10°C to 60°C)
  • Low noise operation (≤50dB)

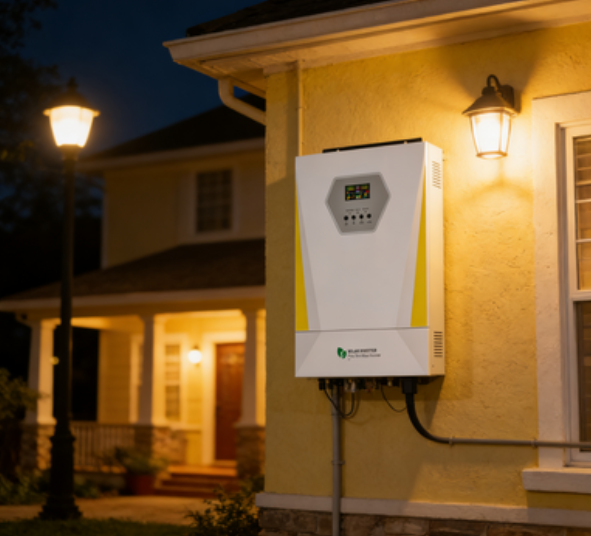

11000W Solar Hybrid Inverter Pure Sine Wave Inverter MPPT Charge Controller
Technical Specifications
Model CH-ED11048EMH
AC Input Voltage 220VAC (Normal) / 110VAC (Customize)
Input Voltage Range 90-280VAC±3V (Normal Mode)
170-280VAC±3V (UPS Mode)
Input Frequency 50/60Hz±5%
Rated Power 11000W
Output Rated Power 12000W
Output Voltage 220/230/240VAC±5%
Output Frequency 50/60Hz±0.1%
Output Wave Pure Sine Wave
Transfer Time ≤10ms (UPS) / ≤20ms (INV)
Peak Power 22000VA
Overload Ability Battery Mode: 1s@105%-150% Load
2s@150%-200% Load
400ms@200% Load
Grid-connected Output Voltage 220/230/240VAC
Grid Voltage Range 170-265VAC
Grid Frequency Range 49-51±Hz/59-61±Hz
Rated Output Current 47.8A
Power Factor Range >0.99
Peak Efficiency (DC/AC) 98%
Battery Rated Voltage 48Vdc
Configurable Voltage 56.4Vdc
Charging Voltage 54Vdc
PV Charging Mode MPPT
Max PV Input Power 25000W
MPPT Input Voltage Range 90-500Vdc
Optimal Vmp Range 300-400Vdc
Max PV Input Voltage 500Vdc
Max PV Input Current 18A/18A
Max PV Charging Current 150A
Max AC Charging Current 150A
Max Charging Current 150A
LCD Interface Displays operating mode, load, input, output
RS232 2400 Baud Rate
Expansion Slot Lithium Battery BMS Communication Card, WIFI/Pitch 2.54mm
Parallel Support Supported
Operating Temperature -10°C to 50°C
Operating Environment Humidity 20%-90% Non-Condensing
Storage Temperature -10°C to 60°C
Noise Level ≤50dB
Additional Advantages
  • Factory Direct Supply: Own production base with direct order handling for stable and efficient supply
  • Flexible Production: Support for small-batch trial orders with minimum order quantity of 1 unit
  • Customization Service: Customizable specifications including voltage, interfaces and other parameters
