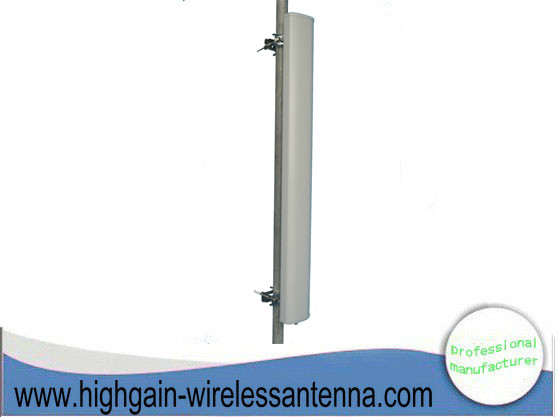

Directional 15DBi Base Station Antenna
Directional 15DBi Base Station Antenna
Specifications
Type :
Base Station Antenna
Feature :
High Gain,H or V Polarization
Pole diamete(mm) :
50～75
Rated Wind Velocit(m/s) :
60
Application :
Public wireless hot signal coverage/2.4GHz ISM
Beamwidth(0°) :
H:120 V:7
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
Model Number :
RSP-2400-15
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Description

Directional 15DBi Base Station Antenna

Feature:


● High Gain
● H or V Polarization
● Full day for working
● Durable, corrosion resistance
● Optimized dimension

Application:


● 2.4 GHz WIFI WLAN System
● 2.4GHz ISM applications
● Public wireless hot signal coverage
● Base station &Repeater station system

Specifications

RSP-2400-15

Electric Specifications

Frequency rang

2400-2500

Polarization

Vertical

Gain(DBi)

15

Beamwidth(0°)

H:120 V:7

F/B ratio(DB)

≥25

Input Impedance(Ω)

50

VSWR

≤1.5

Max power(W)

200

Mechanical Specifications

Connector model

N Female

antenna size (mm)

1210*114*54

Packing size(mm)

1240*125*105

Antenna weight (kg)

6.5

Radome material

UPVC

Radome color

Gray

Mechanical tilt(°)

0～10

Working Temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Pole diameter(mm)

50～75

Antenna details :

Application Example :

Install demonstration

View of us ;
