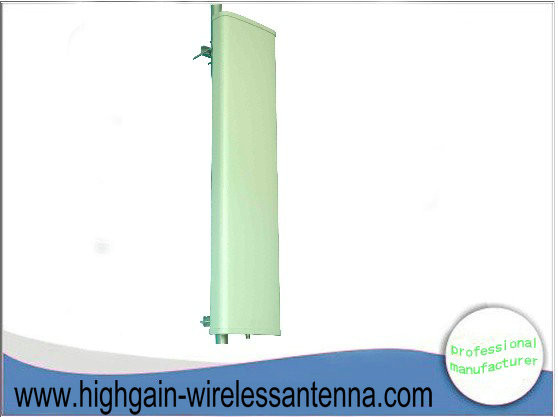

Multiband 17DBi GSM Base Station Antennas / Wireless High Gain Antenna
Multiband 17DBi GSM Base Station Antennas / Wireless High Gain Antenna
Specifications
Model Number :
RSP-800-2500-17
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Type :
Base Station Antenna
Feature :
High Gain,Durable, corrosion resistance
Pole diamete(mm) :
50～75
Rated Wind Velocit(m/s) :
60
Application :
GSM/CDMA/PCS/3G/WLAN System
Input Impedance(Ω) :
50
Description

Multiband 17DBi GSM Base Station Antennas / Wireless High Gain Antenna

Application:


● GSM/CDMA/PCS/3G/WLAN System
● Sector signal coverage
● Base station &Repeater station system
● Wireless telecommunication &Data transmission system

Feature:


● High Gain
● H or V Polarization
● Full day for working
● Durable, corrosion resistance
● Optimized dimension

Specifications

RSP-800-2500-17

Electric Specifications

Frequency rang

806～960

1710～2000

2200～2500

Polarization

Vertical

Gain(DBi)

15

17

17

Beamwidth(0°)

H:65 V:60

H:65 V:38

H:65 V:30

F/B ratio(DB)

≥25

≥25

Input Impedance(Ω)

50

VSWR

≤1.5

≤1.5

Max power(W)

400

200

Mechanical Specifications

Connector model

N Female

antenna size (mm)

1200*280*80

Packing size(mm)

1235*315*150

Antenna weight (kg)

7.4

Radome material

UPVC

Radome color

Gray

Mechanical tilt(°)

0～10

Working Temperatu(°c)

-40～60

Rated Wind Velocit(m/s)

60

Pole diamete(mm)

50～75

Antenna details :

Application Example :

Install demonstration

View of us ;
