800MHZ Mobile 18 DBi Base Station Antennas / Sector signal Directional Panel Antenna
800MHZ Mobile 18 DBi Base Station Antennas / Sector signal Directional Panel Antenna
800MHZ Mobile 18 DBi Base Station Antennas / Sector signal Directional Panel Antenna
800MHZ Mobile 18 DBi Base Station Antennas / Sector signal Directional Panel Antenna
Specifications
Model Number :
RSP-900-18
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Type :
Base Station Antenna
Feature :
High Gain,Durable, corrosion resistance
Pole diamete(mm) :
50～75
Rated Wind Velocit(m/s) :
60
Application :
Base station &Repeater station system
Polarization :
Vertical
Description


800MHZ Mobile 18DBi Base Station Antennas / Sector signal Directional Panel Antenna


Application:
● 800&900MHZ Mobile System
● Sector signal coverage
● Base station &Repeater station system
● Wireless telecommunication &Data transmission system


Feature:
● High Gain
● H or V Polarization
● Full day for working
● Durable, corrosion resistance
● Optimized dimension


Specifications


RSP-900-18

Electric Specifications

Frequency rang

806-960

Polarization

Vertical

Gain(DBi)

18

Beamwidth(0°)

H:65 V:60

F/B ratio(DB)

≥25

Input Impedance(Ω)

50

VSWR

≤1.5

Max power(W)

400

Mechanical Specifications

Connector model

N Female

antenna size (mm)

1300*280*80

Packing size(mm)

Antenna weight (kg)

8.3

Radome material

UPVC

Radome color

Gray

Mechanical tilt(°)

0～10

Working Temperatu(°c)

-40～60

Rated Wind Velocit(m/s)

60

Pole diamete(mm)

50～75

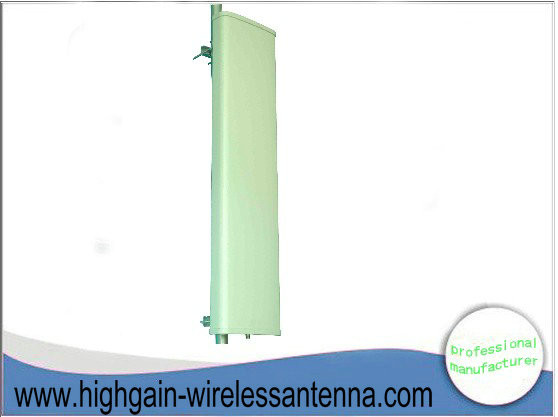

Antenna details :



















Application Example :

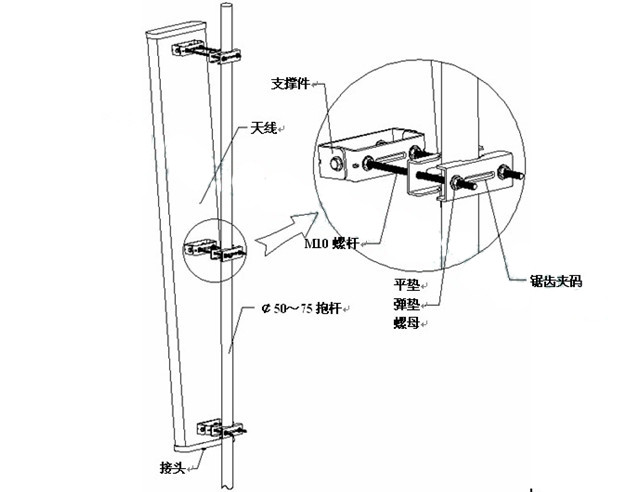

Install demonstration




View of us ;






























































Product tags

4g panel antenna

,

basestation antenna

,

2.4g panel antenna
