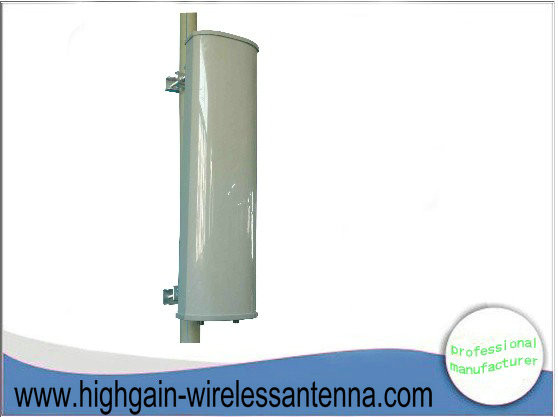

Gray WCDMA PCS Base Station Antennas High Gain 15DBi 2 x N Female Connector
Gray WCDMA PCS Base Station Antennas High Gain 15DBi 2 x N Female Connector
Specifications
Model Number :
RSP-1710-2200-15
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Type :
Base Station Antenna
Feature :
High Gain,H or V Polarization
Pole diamete(mm) :
50～75
Rated Wind Velocit(m/s) :
60
Application :
WCDMA/PCS/3G System
Beamwidth(0°) :
H:62 V:15
Description

Gray WCDMA PCS Base Station Antennas High Gain 15DBi 2 x N Female Connector


Feature:
● High Gain
● H or V Polarization
● Full day for working
● Durable, corrosion resistance
● Optimized dimension


Application:
● WCDMA/PCS/3G System
● Public wireless hot signal coverage
● Base station &Repeater station system


Specifications

RSP-1710-2200-15

Electric Specifications

Frequency rang

1710～2200

Polarization

±45°

Gain(DBi)

15

Beamwidth(0°)

H:62 V:15

F/B ratio(DB)

≥25

Input Impedance(Ω)

50

VSWR

≤1.5

Max power(W)

200

Lightning protection

DC Ground

Mechanical Specifications

Connector model

2*N Female

antenna size (mm)

650*175*80

Packing size(mm)

680*200*150

Antenna weight (kg)

4

Radome material

UPVC

Radome color

Gray

Mechanical tilt(°)

0～15

Working Temperature(°c)

-40～60

Rated Wind Velocit(m/s)

60

Pole diamete(mm)

50～75



Antenna details :



















Application Example :




Install demonstration




View of us ;
