Waterproof 2.4GHz WIFI Antenna for Base Station 18DBi High Frequency 2500MHZ 100W
Waterproof 2.4GHz WIFI Antenna for Base Station 18DBi High Frequency 2500MHZ 100W
Waterproof 2.4GHz WIFI Antenna for Base Station 18DBi High Frequency 2500MHZ 100W
Waterproof 2.4GHz WIFI Antenna for Base Station 18DBi High Frequency 2500MHZ 100W
Specifications
Model Number :
RSP-2400-18
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Type :
Base Station Antenna
Feature :
H or V Polarization
Pole diamete(mm) :
50～75
Rated Wind Velocit(m/s) :
60
Application :
2.4 GHz WIFI WLAN System
Description


Waterproof 2.4GHz WIFI Antenna for Base Station 18DBi High Frequency 2500MHZ 100W


Application:

● 2.4 GHz WIFI WLAN System
● 2.4GHz ISM applications
● Public wireless hot signal coverage
● Base station &Repeater station system


Feature:
● High Gain
● H or V Polarization
● Full day for working
● Durable, corrosion resistance
● Optimized dimension

Specifications

Electric Specifications

Frequency rang

2400-2500

Polarization

Vertical

Gain(DBi)

18

Beamwidth(0°)

H:65 V:38

F/B ratio(DB)

≥25

Input Impedance(Ω)

50

VSWR

≤1.5

Max power(W)

100

Mechanical Specifications

Connector model

N N Female

antenna size (mm)

870*175*80

Packing size(mm)

900*200*150

Antenna weight (kg)

4.2

Radome material

UPVC

Radome color

Gray

Mechanical tilt(°)

0～10

Working Temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Pole diameter(mm)

50～75

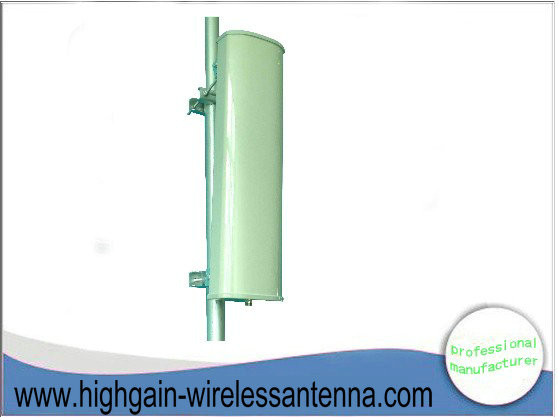

Antenna details :



















Application Example :

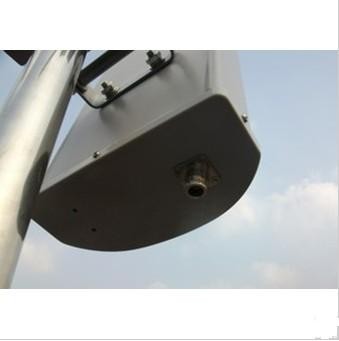

Install demonstration




View of us ;
