ISM 2.4G Wifi Directional Panel Base Station Antennas 14DBi Horizontal 120°
ISM 2.4G Wifi Directional Panel Base Station Antennas 14DBi Horizontal 120°
ISM 2.4G Wifi Directional Panel Base Station Antennas 14DBi Horizontal 120°
ISM 2.4G Wifi Directional Panel Base Station Antennas 14DBi Horizontal 120°
Specifications
Model Number :
RSP-2400-14
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Type :
Base Station Antenna
Feature :
High Gain,Durable, corrosion resistance
Pole diamete(mm) :
50～75
Application :
2.4 GHz WIFI WLAN System
Gain(DBi) :
14
Antenna weight (kg) :
3.8
Description


ISM 2.4G Wifi Directional Panel Base Station Antennas 14DBi Horizontal 120°



Feature:

● High Gain
● H or V Polarization
● Full day for working
● Durable, corrosion resistance
● Optimized dimension


Application:

● 2.4 GHz WIFI WLAN System
● 2.4GHz ISM applications
● Public wireless hot signal coverage
● Base station &Repeater station system


Specifications

RSP-2400-14

Electric Specifications

Frequency rang

2400-2500

Polarization

Vertical

Gain(DBi)

14

Beamwidth(0°)

H:120 V:30

F/B ratio(DB)

≥25

Input Impedance(Ω)

50

VSWR

≤1.5

Max power(W)

100

Mechanical Specifications

Connector model

N Female

antenna size (mm)

650*175*80

Packing size(mm)

680*200*150

Antenna weight (kg)

3.8

Radome material

UPVC

Radome color

Gray

Mechanical tilt(°)

0～10

Working Temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Pole diameter(mm)

50～75

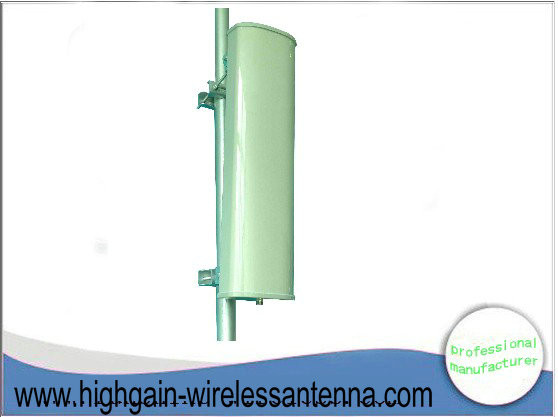

Antenna details :



















Application Example :

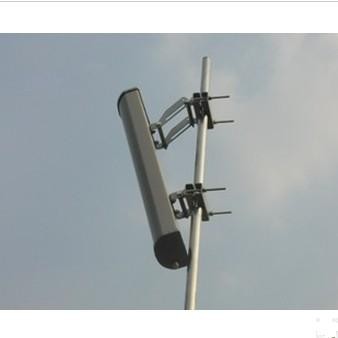

Install demonstration




View of us ;
