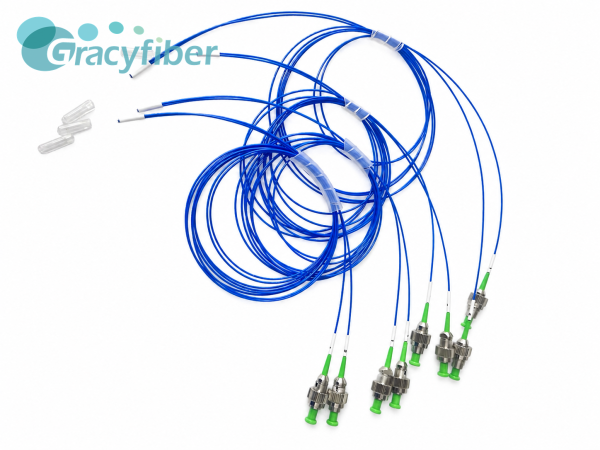

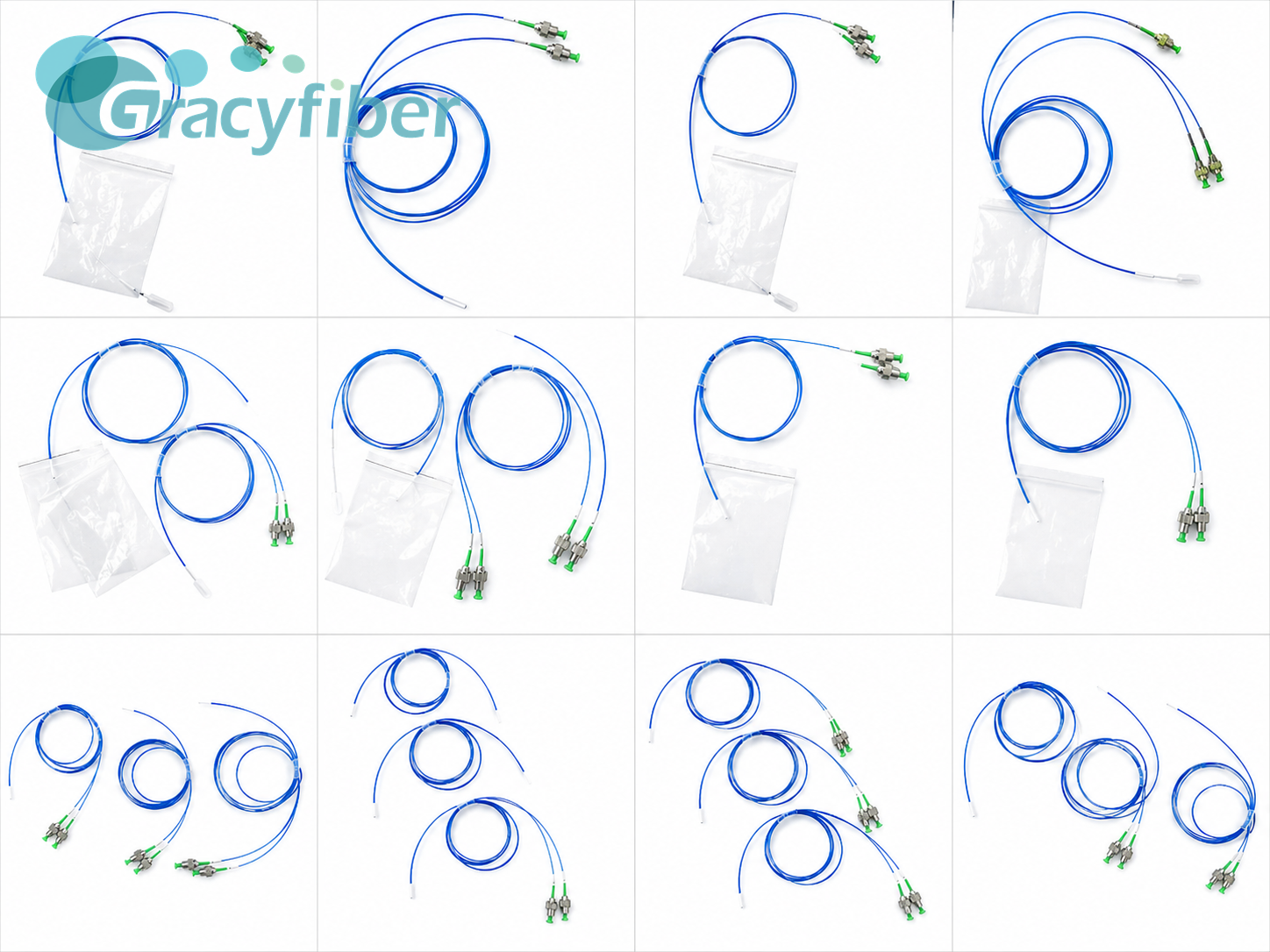

Custom 1CH PMFA Block (0.753mm Thickness) | Slow Axis Aligned FC/APC | PM1550 0.9mm Blue Tube | Component for Coherent Comm
Custom 1CH PMFA Block (0.753mm Thickness) | Slow Axis Aligned FC/APC | PM1550 0.9mm Blue Tube | Component for Coherent Comm
Custom 1CH PMFA Block (0.753mm Thickness) | Slow Axis Aligned FC/APC | PM1550 0.9mm Blue Tube | Component for Coherent Comm
Custom 1CH PMFA Block (0.753mm Thickness) | Slow Axis Aligned FC/APC | PM1550 0.9mm Blue Tube | Component for Coherent Comm
Specifications
Model Number :
910001701-04
Channel Spacing :
OK
Polishing Angle :
OK
Package Dimensions :
8*2.5*0.753 mm
Insertion Loss :
≤0.3 dB
Description
Custom 1CH PMFA Block (0.753mm Thickness) | Slow Axis Aligned FC/APC | PM1550 0.9mm Blue Tube | Component for Coherent Comm
1. Product Overview

Gracyfiber manufactures high-precision single-channel polarization-maintaining fiber arrays (1CH PMFAs) using high-quality quartz glass substrates, specifically designed for precision polarization control in compact spaces.

2. Product Features

Parameters Unit Spec. Value
Channel / 24 OK
Material / Quartz Glass OK
Channel Spacing μm 127 OK
Polishing Angle Degree 0° OK
Package(L)X(W)X(H) mm 12*5.7*1.5 OK
Insertion Loss dB ≤0.3
Extinction Ratio dB ≥18 25
FA PM Fiber Alignment / PMII OK
Connctor PM Fiber Alignment / Slow Axis
Alignment Key		 OK
Fiber Type / PM1550(Corning) OK
Fiber Tube mm 0.9 OK
Tube Color / Blue OK
Length m 1±0.1 OK
Connector / FC/APC OK
Operating Temperature (℃) 0～65 OK
Storage Temperature (℃) -40～85 OK
  • Ultra-low insertion loss (< 0.3 dB)
  • Ultra-high extinction ratio (> 18 dB, typical 25 dB)
  • Corning PM1550 polarization-maintaining fiber
  • FC/APC connector (slow-axis keying for precise positioning)
  • High-precision 0° end-face grinding (A0°)
  • 8*2.5*0.753mm ultra-thin quartz glass package
  • PM II fiber array polarization alignment process
3. Applications
  • Coherent optical communication system packaging
  • Fiber optic gyroscopes (FOGs) and precision optical sensing
  • Silicon photonic integrated circuit (PIC) coupling
  • High-performance polarization-maintaining waveguide device integration
  • Ultra-compact high-speed optical module internal connections
Custom 1CH PMFA Block (0.753mm Thickness) | Slow Axis Aligned FC/APC | PM1550 0.9mm Blue Tube | Component for Coherent Comm
