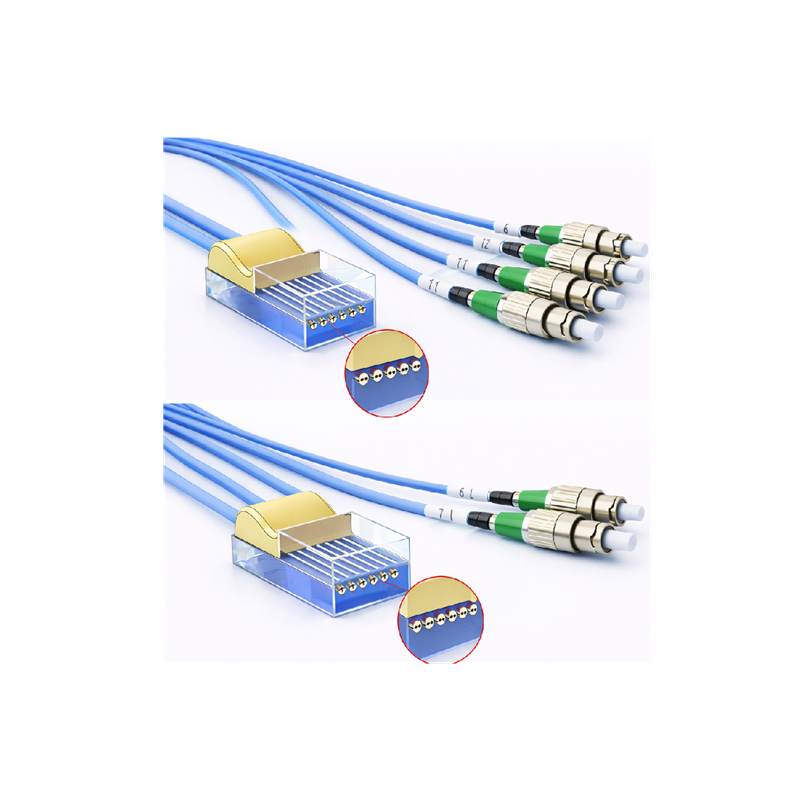

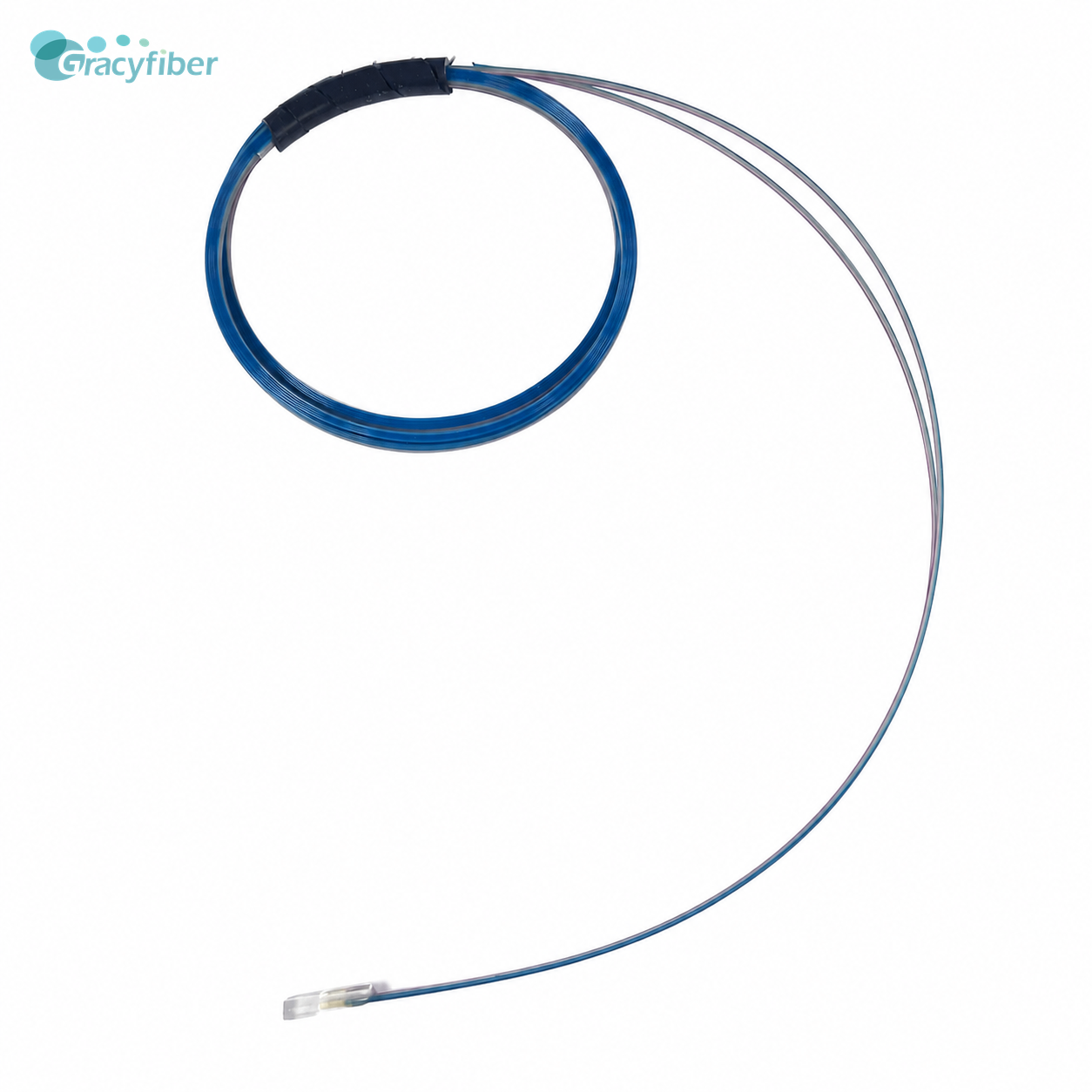

This product utilizes Panda PM fiber as its standard configuration while also supporting custom Bow-tie fiber options, offering excellent polarization-maintaining performance and axial consistency. The insertion loss is ≤0.5 dB (typically 0.3 dB), and the extinction ratio (PER) reaches ≥20 dB (typically ≥23 dB); select high-channel-count versions also maintain excellent PER performance. The product supports referencing to either the slow or fast axis, with selectable axial orientations of 0°, 45°, 90°, or custom angles; axial alignment precision is controlled within ±2° (typically ±1°). It supports both UPC and APC polishing styles, achieving return losses of ≥45 dB and ≥55 dB, respectively, making it suitable for systems with stringent requirements regarding polarization control, reflection suppression, and coupling stability. This product is widely applicable in projects involving silicon photonics chips, PLCs, AWGs, coherent devices, polarization-maintaining array packaging, and OEM optical communication modules.

• Supports various polarization-maintaining array configurations ranging from 1 to 128 channels
• Compatible with multiple operating wavelength bands from 460 nm to 1950 nm
• Supports both standard Panda PM fiber and optional Bow-tie fiber configurations
• Extinction Ratio (PER) reaches ≥20 dB (typically ≥23 dB)
• Supports slow-axis/fast-axis referencing and custom axial orientations of 0°, 45°, or 90°
• Axial alignment precision ≤±2° (typically ±1°)
• Insertion loss ≤0.5 dB (typically 0.3 dB)
• Supports customization of various materials, fiber pitch, polishing angles, and connectors

• Silicon Photonics Chip Coupling
• PLC Optical Splitters
• AWG Wavelength Division Devices
• Polarization-Maintaining Fiber Array Packaging
• Coherent Optical Communication Modules
• Optical Test Platforms
• High-Density Optical Interconnect Systems
• OEM Optical Communication Components
