Ultra-Compact Lidless PM Fiber Array Quartz V-Groove 1-64CH 127um Pitch High ER Polarization Maintaining Array For Silicon Photonics Coherent Modules OEM

1. Product Overview

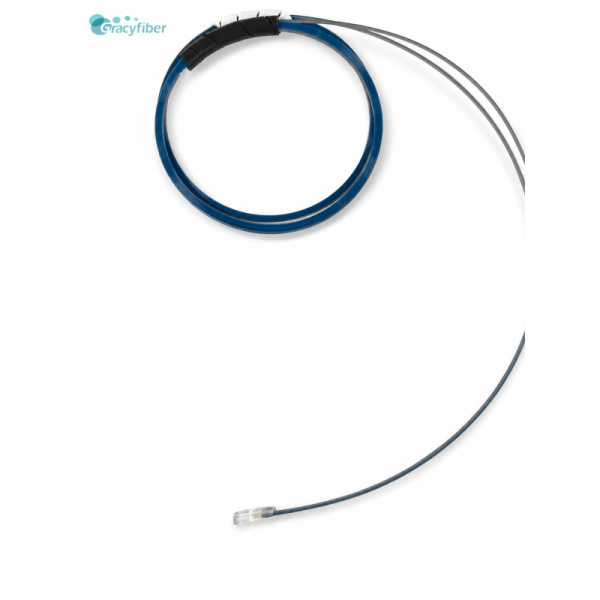

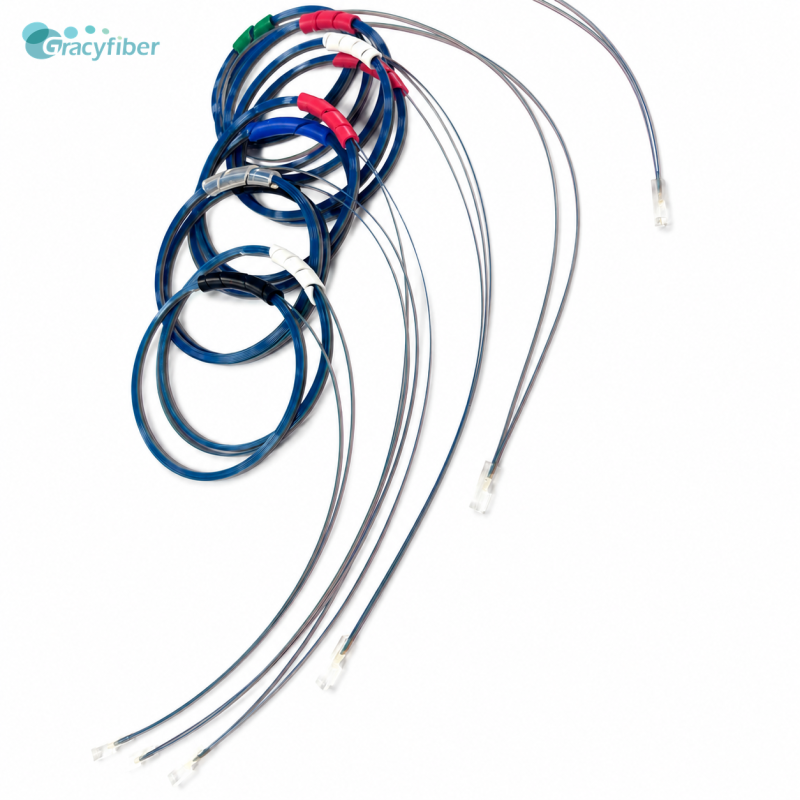

High-quality polarization-maintaining lidless fiber arrays. These products are typically made of quartz and feature an extremely compact design (no top cover), making them particularly suitable for integrated optics applications with thickness or space constraints.

Compact Lidless PM Fiber Array Quartz V-Groove 1-64CH 127um Pitch High ER Polarization Maintaining Fiber Array OEM

Key Features:

Ultra-thin/Lidless Design

High Pitch Accuracy

Polarization Maintaining Performance


2. Product Features (Key Features)

Material

Quartz& Silicon

V-groove core pitch

μm

127/250/500(±0.5)or customer specified

wavelength


460 780 980 1060 1310

Polishing angle

degree

90°(±0.3°)

Number of channels

1

2

4

8

16

32

64

Channel spacing

μm

　

250

127

127

127

127

127

Package
(L)X(W)X(H)

mm

6x2.5x2.5

10x2.5x2.5

10x2.5x2.5

10x2.5x2.5

12x3.5x2.5

12x5.7x2.5

12X9.7X2.5

Extinction ratio

dB

≥25

≥25

≥23

≥21

≥20

≥16

≥15

PM Fiber Alignment

PM orientation Ⅱ

Fiber Type

Corning PM15-U25D

Fiber Length

1+/-0.1m

Connector

FC/APC(Slow Axis Alignment Key)

Operating Temperature (℃)

-5～65

Storage Temperature (℃)

-40～85
3. Applications

Array Waveguide Gratings (AWG)

Planar Splitters / PLC Splitters

Integrated Fiber Optic Components

Especially suitable for edge or surface coupling of silicon photonic chips.

For coherent communication modules requiring extremely low profile packaging.
