PM V Groove Fiber Array 8 Degree Quartz Silicon 1 To 64 Channel For PM Collimator Photonic Waveguide / Laser
PM V Groove Fiber Array 8 Degree Quartz Silicon 1 To 64 Channel For PM Collimator Photonic Waveguide / Laser
Specifications
Brand Name :
Gracyfiber
Certification :
ISO CE RoSH
Place of Origin :
China
Name :
V Groove Fiber Array
Fiber type :
250um Panda PM fiber
Fiber pitch :
250 µm standard
Operating temperature :
-40°C to 85°C
Operating wavelength :
1260 nm to 1625 nm
Insertion loss :
< 0.3 dB
Return loss :
> 55 dB
MOQ :
100pcs
Payment Terms :
T/T
Description
PM Fiber Array Polarization Maintaining V Groove Fiber Array 8 Degree Quartz Silicon 1 To 64 Channel For PM Collimator Photonic Waveguide And Laser
PM Fiber Array

A Polarization Maintaining Fiber Array (PM-FA) is a multi-channel optical component that precisely positions an array of Polarization Maintaining (PM) fibers. Its primary function is twofold:

Spatial Alignment: To accurately position the fiber cores at precise, uniform intervals (pitch) for coupling to other devices, similar to a standard Fiber Array.

Polarization Alignment: Crucially, to align the polarization axes (stress rods) of all fibers in the array to a designated plane or reference point. This ensures that the light's polarization state, once launched into the correct axis, is maintained consistently across all channels.

1. Applications
  • PM photonic waveguide devices
  • PM-collimator arrays [PM combiner]
  • Multi-PM fiber collimators
  • Different laser sources
PM V Groove Fiber Array 8 Degree Quartz Silicon 1 To 64 Channel For PM Collimator Photonic Waveguide / Laser
2. PM Fiber Alignment
PM V Groove Fiber Array 8 Degree Quartz Silicon 1 To 64 Channel For PM Collimator Photonic Waveguide / Laser

PM Fiber Array

Material

Quartz& Silicon

V-groove core pitch

μm

127/250/500(±0.5)or customer specified

Polishing angle

degree

8°(±0.3°)

Fiber type

　

250um Panda PM fiber

Number of channels

1

2

4

8

16

32

64

Channel spacing

μm

　

250

250

250

127

127

127

Package
(L)X(W)X(H)

mm

6x2.5x2.5

10x2.5x2.5

10x2.5x2.5

10x2.5x2.5/
10x3.5x2.5

12x3.5x2.5

12x5.7x2.5

12X9.7X2.5

Extinction ratio

dB

≥25

≥25

≥23

≥21

≥18

≥16

≥15

Connector

FC/SC/LC or Customized

Operating Temperature (℃)

-5～65

Storage Temperature (℃)

-40～85
PM V Groove Fiber Array 8 Degree Quartz Silicon 1 To 64 Channel For PM Collimator Photonic Waveguide / Laser

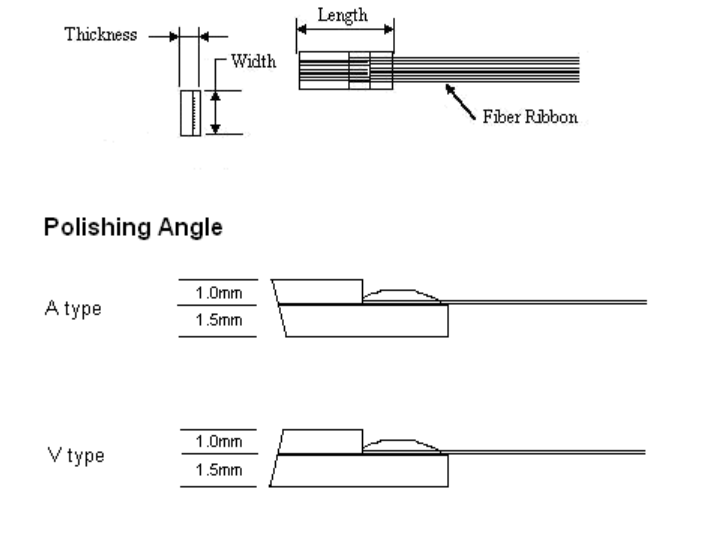

Notes:

Channels number / Operating Wavelength and Device Dimension can be customer specified.

4. Ordering information
PM Single-Channel Fiber Array

PMSFA-

XX-

X-

XX-

X-

X-

X

PM=Polarization

Maintaining

Channel Count

Materials

Fiber Length

Fiber Type

Fiber Color

Polishing Angle

S=Single

01=D type capillary

Q=Quartz

12=1.2m

B=250μm Bare Fiber

C=Clear

A= +8°

F=Fiber

02=Quadrate capillary

S= Silicon

15=1.5m

L=900μm Loose Tube

W=White

V= -8°

A=Array

03=V groove

X=Customized

T=900μm Tight Buffer

B=Blue

N=0°

　

　

　

　

X=Customized

X=Customized
PM Multi-Channel Fiber Array

PMGFA-

XX-

X-

XX-

XX-

X-

X

PM=Polarization

Maintaining

Channel Count

Materials

Core Pitch

Ribbon Fiber Length

Ribbon Fiber Color

Polishing Angle

G=Gracyfiber

02=2 channels

Q= Quartz

25= 250μm

12=minimum 1.2m

S=Gigalight Standard

A= +8°

F=Fiber

04=4 channels

S= Silicon

12= 127μm

15=minimum 1.5m

X=Customized

V= -8°

A=Array

08=8 channels

..........

　

N=0°

　

..........

　

　

　

　

X= Customized

　

64=64 channels

　

　

　

　

　
Send your message to this supplier
Send Now

PM V Groove Fiber Array 8 Degree Quartz Silicon 1 To 64 Channel For PM Collimator Photonic Waveguide / Laser

Ask Latest Price
Product Detail
Brand Name :
Gracyfiber
Certification :
ISO CE RoSH
Place of Origin :
China
Name :
V Groove Fiber Array
Fiber type :
250um Panda PM fiber
Fiber pitch :
250 µm standard
Contact Supplier
PM V Groove Fiber Array 8 Degree Quartz Silicon 1 To 64 Channel For PM Collimator Photonic Waveguide / Laser

Shenzhen Gracyfiber Technology Co., Ltd.

Verified Supplier
2 Years
guangdong, shenzhen
Since 2014
Business Type :
Manufacturer
Main Products :
Polarization Maintaining, WDM & Optical Filtering, Optical Fiber Array
Employee Number :
150~200
Certification Level :
Verified Supplier
