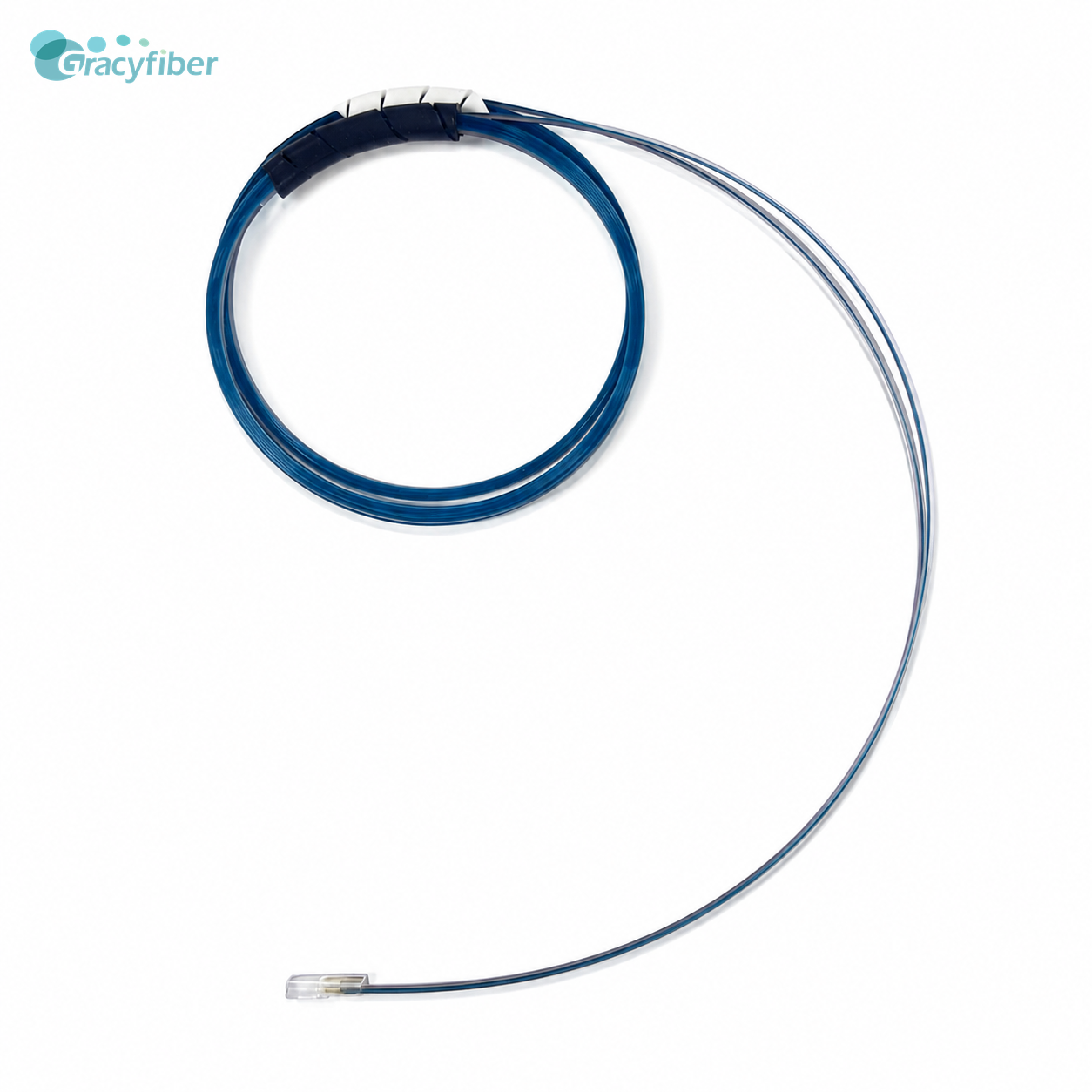

Polarization Maintaining Fiber Array PM V Groove Fiber Array High Precision Quartz Pyrex Silicon 1 To 64 Channel
Polarization Maintaining Fiber Array PM V Groove Fiber Array High Precision Quartz Pyrex Silicon 1 To 64 Channel
Specifications
Brand Name :
Gracyfiber
Certification :
ISO CE RoSH
Place of Origin :
China
Fiber pitch :
250 µm
Operating temperature :
-40°C to 85°C
Operating wavelength :
1260 nm to 1625 nm
Insertion loss :
< 0.3 dB
Return loss :
> 55 dB
Extinction ratio :
≥25 dB
Name :
Fiber V Groove Array
MOQ :
100pcs
Payment Terms :
T/T
Description

Polarization Maintaining Fiber Array PM V Groove Fiber Array High Precision Quartz Pyrex Silicon 1 To 64 Channel For Coherent Communication PM Waveguide And Sensing

1. Product Overview

High-quality polarization-maintaining fiber arrays consist of multiple polarization-maintaining fibers with their polarization axes aligned and arranged in the same plane. Made of Quartz, Pyrex glass, or Silicon, these arrays offer high precision, high reliability, and low cost.

Key Features:
  • High Pitch Accuracy: < 0.5µm.
  • Polarization Axis Alignment: Precise alignment of the fiber's polarization axis (fast or slow axis).
  • Diverse Configurations:
    • Number of Channels: Up to 64 channels (standard stock includes 1, 2, 4, 8, 16, 32, and 64 channels).
    • Fiber Spacing: 127µm or 250µm.
    • Polishing Angle: 0 degrees (flat) or 8 degrees (beveled).
    • Fiber Types: Covers various wavelengths including PM1550, PM980, PM780, PM850, PM-S630-HP, and PM-S405-XP.
    • PM Orientation: Offers different alignment methods such as Orientation I and Orientation II.
2. Product Features (Key Features)

Material

Quartz& Silicon

V-groove core pitch

μm

127/250/500(±0.5)or customer specified

wavelength

460 780 980 1060 1310

Polishing angle

degree

90°(±0.3°)

Number of channels

1

2

4

8

16

32

64

Channel spacing

μm

　

250

127

127

127

127

127

Package
(L)X(W)X(H)

mm

6x2.5x2.5

10x2.5x2.5

10x2.5x2.5

10x2.5x2.5

12x3.5x2.5

12x5.7x2.5

12X9.7X2.5

Extinction ratio

dB

≥25

≥25

≥23

≥21

≥20

≥16

≥15

PM Fiber Alignment

PM orientation Ⅱ

Fiber Type

Corning PM15-U25D

Fiber Length

1+/-0.1m

Connector

FC/APC(Slow Axis Alignment Key)

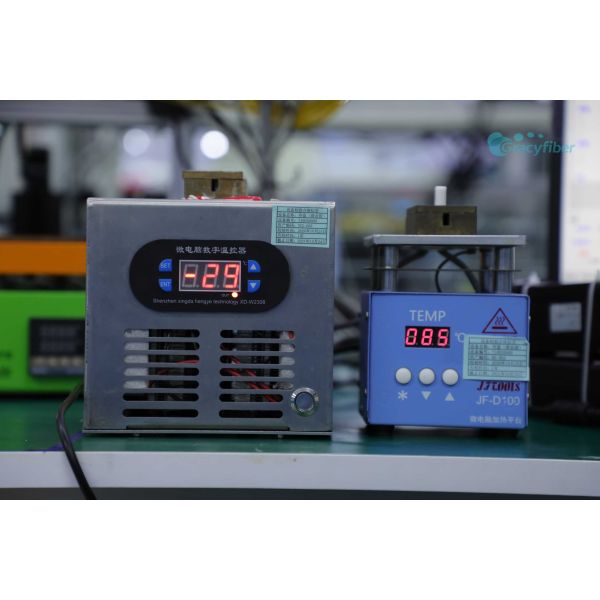

Operating Temperature (℃)

-5～65

Storage Temperature (℃)

-40～85
3. Applications

Polarization-maintaining fiber arrays are primarily used in polarization-sensitive optical systems:

  • Polarization-maintaining waveguide devices (PM Photonic Waveguide Devices)
  • Planar Splitters
  • Integrated Fiber Optic Components
  • Coherent Communication Systems
  • Fiber Optic Sensing Systems
