Multi Channel PM Fiber Array V Groove For PM Collimator Photonic Waveguide And Laser
Multi Channel PM Fiber Array V Groove For PM Collimator Photonic Waveguide And Laser
Specifications
Brand Name :
Gracyfiber
Certification :
ISO CE RoSH
Place of Origin :
China
Material :
High-quality silica glass fibers with polymer coating
Fiber type :
250um Panda PM fiber
Channels :
1 2 4 8 16 32 64
V-groove core pitch :
127/250/500(±0.5)μm
Operating temperature :
-40°C to 85°C
Operating wavelength :
1260 nm to 1625 nm
MOQ :
100pcs
Payment Terms :
T/T
Description
PM Fiber Array Polarization Maintaining V Groove Fiber Array Quartz Silicon 1 To 64 Channel High Extinction Ratio For PM Collimator Photonic Waveguide And Laser
PM Fiber Array

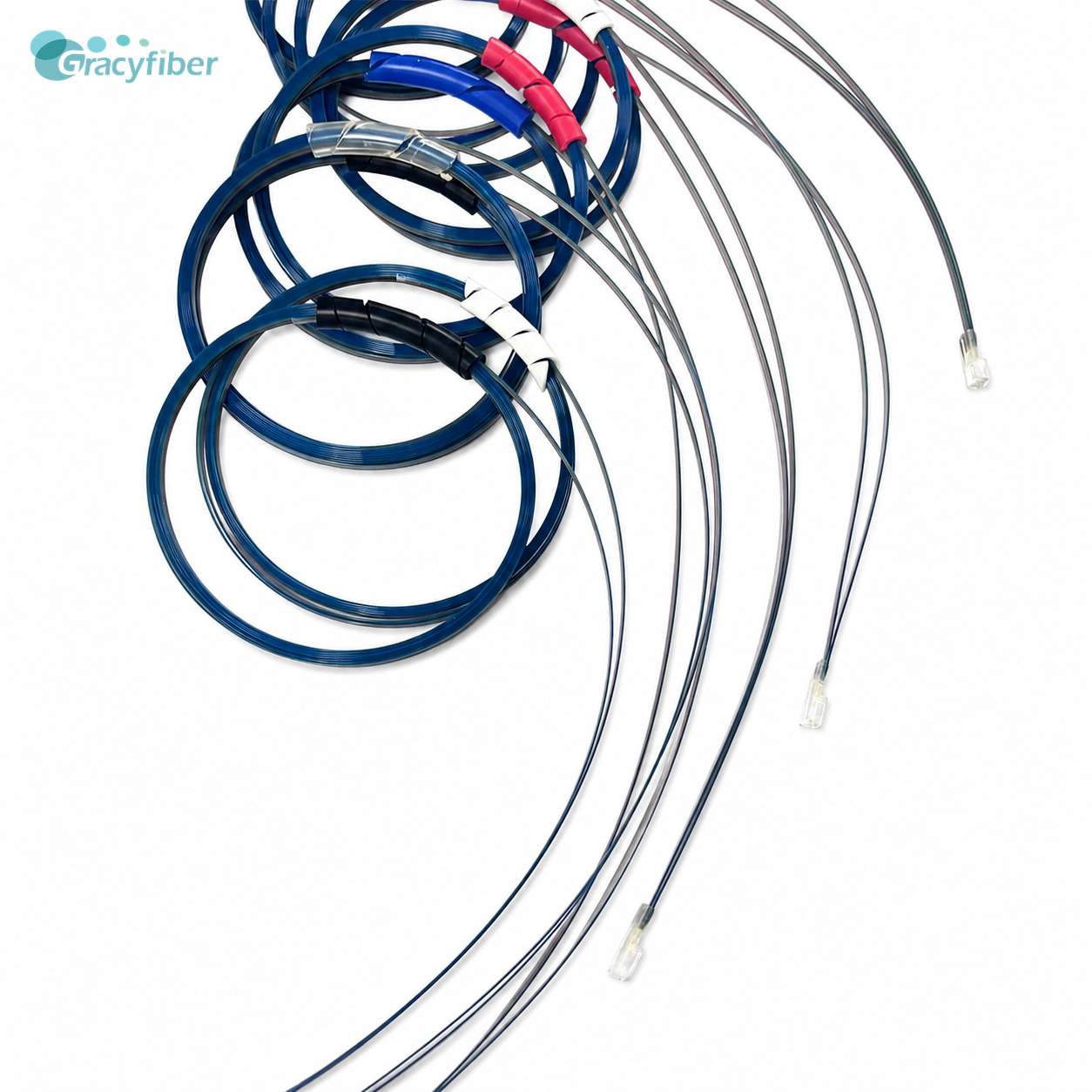

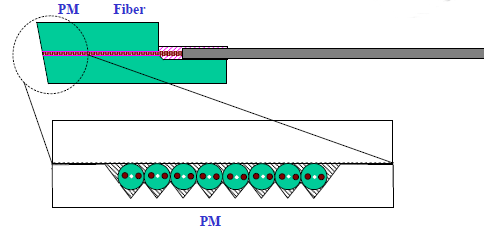

The PM Fiber Array is a critical component designed to manage and maintain the polarization state of light across multiple parallel channels. Unlike standard fiber arrays, the PM-FA features Polarization-Maintaining (PM) fibers precisely mounted within a high-accuracy V-Groove substrate (typically Quartz or Silicon). Its core function is not only the sub-micron alignment of fiber cores but, crucially, the accurate angular alignment of the fiber's stress-rods (polarization axes) relative to the array plane. This dual-precision capability is paramount for achieving a high Extinction Ratio (ER), low insertion loss, and stable performance required in next-generation coherent optical systems.

1. Applications
  • PM photonic waveguide devices
  • PM-collimator arrays [PM combiner]
  • Multi-PM fiber collimators
  • Different laser sources

Multi Channel PM Fiber Array V Groove For PM Collimator Photonic Waveguide And Laser

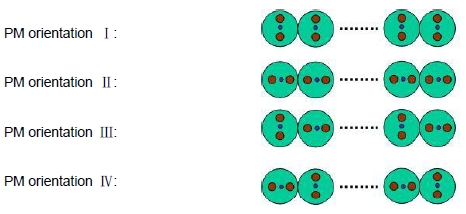

2. PM Fiber Alignment

Multi Channel PM Fiber Array V Groove For PM Collimator Photonic Waveguide And Laser

2. PM Fiber Alignment

PM Fiber Array

Material

Quartz& Silicon

V-groove core pitch

μm

127/250/500(±0.5)or customer specified

Polishing angle

degree

90°(±0.3°)

Fiber type

　

250um Panda PM fiber

Number of channels

1

2

4

8

16

32

64

Channel spacing

μm

　

250

127

127

127

127

127

Package
(L)X(W)X(H)

mm

6x2.5x2.5

10x2.5x2.5

10x2.5x2.5

10x2.5x2.5

12x3.5x2.5

12x5.7x2.5

12X9.7X2.5

Extinction ratio

dB

≥25

≥25

≥23

≥21

≥20

≥16

≥15

PM Fiber Alignment

PM orientation Ⅱ

Fiber Type

Corning PM15-U25D

Fiber Length

1+/-0.1m

Connector

FC/APC(Slow Axis Alignment Key)

Operating Temperature (℃)

-5～65

Storage Temperature (℃)

-40～85

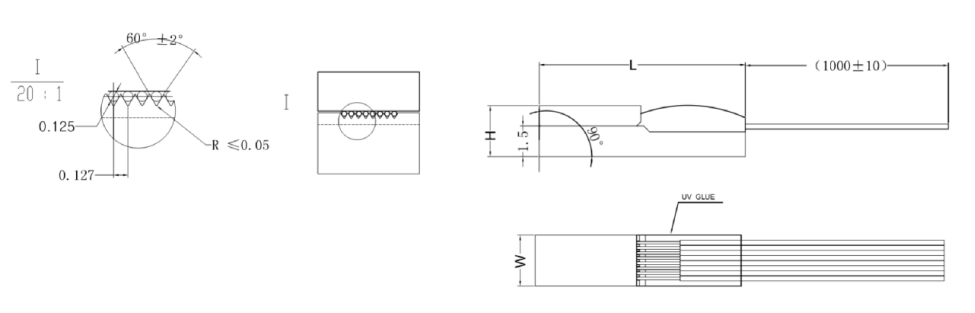

　Multi Channel PM Fiber Array V Groove For PM Collimator Photonic Waveguide And Laser

Notes:
Channels number/Operating Wavelength and Device Dimension can be customer specified.

4. Ordering information

PM Single-Channel Fiber Array

PMSFA-

XX-

X-

XX-

X-

X-

X

PM=Polarization
Maintaining

Channel Count

Materials

Fiber Length

Fiber Type

Fiber Color

Polishing Angle

S=Single

01=D type capillary

Q=Quartz

12=1.2m

B=250μm Bare Fiber

C=Clear

A= +8°

F=Fiber

02=Quadrate capillary

S= Silicon

15=1.5m

L=900μm Loose Tube

W=White

V= -8°

A=Array

03=V groove

X=Customized

T=900μm Tight Buffer

B=Blue

N=0°

　

　

　

　

X=Customized

X=Customized

PM Multi-Channel Fiber Array

PMGFA-

XX-

X-

XX-

XX-

X-

X

PM = Polarization
Maintaining

Channel Count

Materials

Core Pitch

Ribbon Fiber Length

Ribbon Fiber Color

Polishing Angle

G= Gracy fiber

02=2 channels

Q= Quartz

25= 250μm

12= minimum 1.2m

S = Standard

X= +8°

F = Fiber

04=4 channels

S= Silicon

12= 127μm

15= minimum 1.5m

X = Customized

V= -8°

A = Array

08=8 channels

..........

　

N=0°

　

..........

　

　

　

　

X= Customized

　

64=64 channels

　

　

　

　

　
