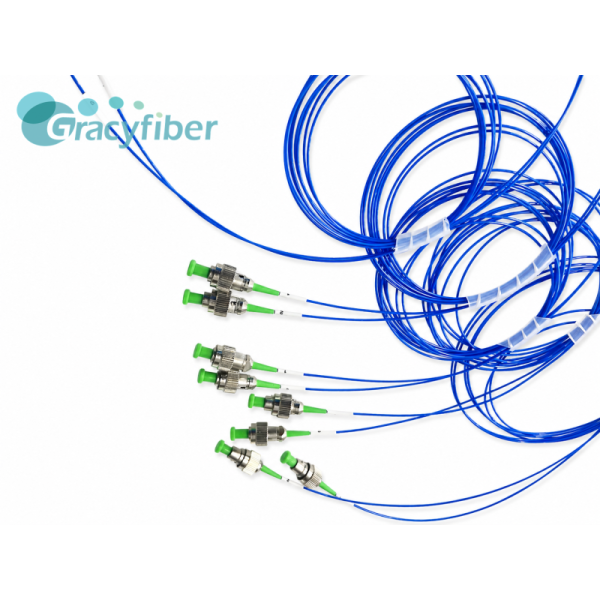

High-Density 14-Channel Polarization Maintaining FA | PM1550 Fiber, 0 Degree | PM II+I Standard | Low IL ≤0.3dB Optical Array
High-Density 14-Channel Polarization Maintaining FA | PM1550 Fiber, 0 Degree | PM II+I Standard | Low IL ≤0.3dB Optical Array
High-Density 14-Channel Polarization Maintaining FA | PM1550 Fiber, 0 Degree | PM II+I Standard | Low IL ≤0.3dB Optical Array
High-Density 14-Channel Polarization Maintaining FA | PM1550 Fiber, 0 Degree | PM II+I Standard | Low IL ≤0.3dB Optical Array
Specifications
Model Number :
910001714-01
Channel Count :
14
Channel Spacing :
127μm
Insertion Loss :
≤0.3dB
Extinction Ratio :
≥18dB
Description
High-Density 14-Channel Polarization Maintaining FA | PM1550 Fiber, 0 Degree | PM II+I Standard | Low IL ≤0.3dB Optical Array
1. Product Overview

Gracyfiber, leveraging its core team's over 25 years of expertise in the optical communication industry, has launched a 14-channel polarization-maintaining fiber array (14CH PM FA) specifically designed for high-density optoelectronic integrated systems.

2. Core Product Features
Parameters Unit Spec. Value
Channel / 24 OK
Material / Quartz Glass OK
Channel Spacing μm 127 OK
Polishing Angle Degree 0° OK
Package(L)X(W)X(H) mm 12*5.7*1.5 OK
Insertion Loss dB ≤0.3
Extinction Ratio dB ≥18 25
FA PM Fiber Alignment / PMII OK
Connctor PM Fiber Alignment / Slow Axis
Alignment Key		 OK
Fiber Type / PM1550(Corning) OK
Fiber Tube mm 0.9 OK
Tube Color / Blue OK
Length m 1±0.1 OK
Connector / FC/APC OK
Operating Temperature (℃) 0～65 OK
Storage Temperature (℃) -40～85 OK

  • 14-channel quartz glass substrate array, 127μm standard channel pitch, A0° end face polishing

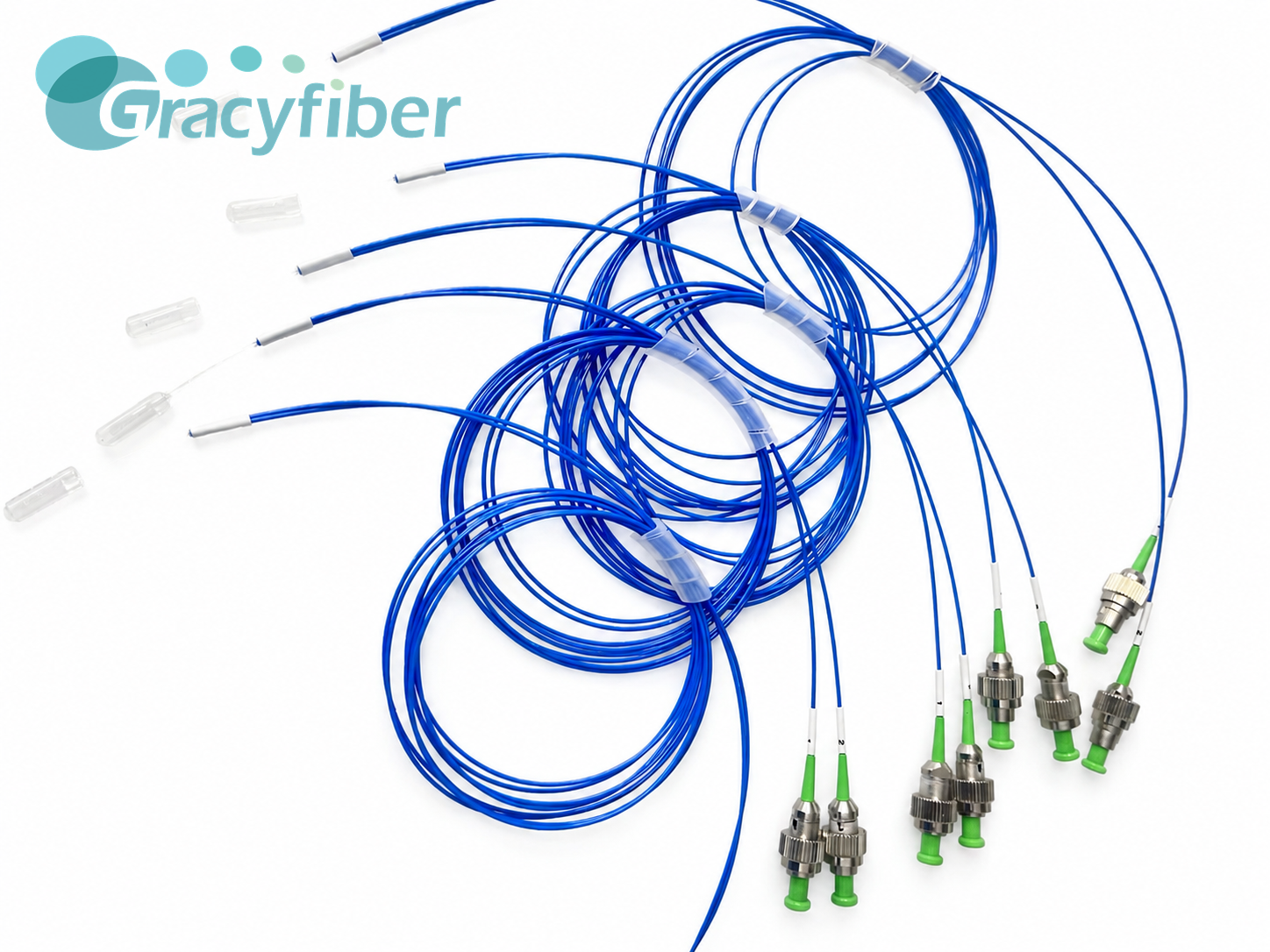

  • Utilizes Corning PM1550 polarization-maintaining fiber (PM II+I arrangement), fitted with 0.9mm blue loose tubes
  • Ultra-low insertion loss (≤0.3dB) and high extinction ratio (typical 25dB, ≥18dB)
  • High-precision polarization alignment of FC/APC connectors (strict alignment of slow axis key)
  • Miniature compact package design (15*3*1.125mm), equipped with customized self-adhesive paper and foam shockproof packaging
High-Density 14-Channel Polarization Maintaining FA | PM1550 Fiber, 0 Degree | PM II+I Standard | Low IL ≤0.3dB Optical Array
3. Application Areas
  • High-density interconnection within high-speed coherent optical communication modules
  • Silicon photonics and PIC coupling packaging
  • Multi-channel polarization-maintaining waveguide devices and polarization-maintaining splitters (PM PLCs) Customized Splitter Connectivity
  • High-Density, High-Precision Fiber Optic Sensing Networks and Coherent Detection Systems
  • Advanced Polarization-Sensitive Multichannel Optical Test Instruments and Measurement Equipment
