16CH PM Fiber Array | 127μm Pitch, 0° Flat Quartz Block | PM1550 Fiber, Slow Axis to Key | High ER 25dB PMFA | Gracyfiber

This product is a 16-channel polarization-maintaining fiber array (PMFA), using quartz glass and Corning PM1550 polarization-maintaining fiber. The channel spacing is 127 μm, and the polishing angle is 0°.

• 16-Channel High-Density Array Design
  Supports a 16-channel structure with a channel spacing of 127 μm, suitable for multi-channel optical signal parallel coupling and high-density integrated packaging.
• Low Insertion Loss Performance
  Insertion loss IL < 0.3 dB, effectively reducing optical link loss and improving optical signal transmission efficiency and system stability.
• High Extinction Ratio Polarization Maintaining Capability
  Extinction ratio ER > 18 dB, using Corning PM1550 polarization-maintaining fiber, meeting the requirements of polarization-sensitive optical communication and precision optical systems.
• Precision FA Structure Design
  The FA dimensions are 12 × 3.5 × 2 mm, using Quartz Glass material, ensuring structural stability and precise dimensions, facilitating internal integration of optical modules and devices.
• Comprehensive Connection and Protection Configuration

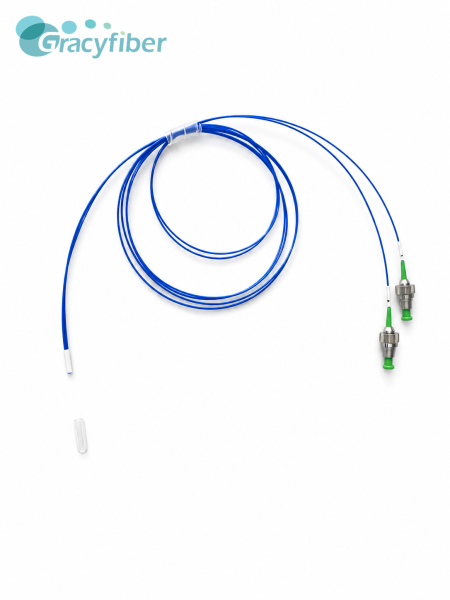

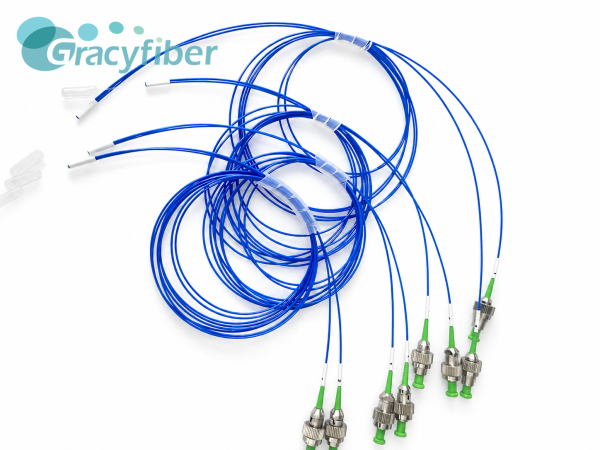

  Equipped with FC/APC connectors, slow-axis key pair, 200±10 cm in length including the head, and externally fitted with 0.9 mm blue loose tubing for easy system connection, testing, and assembly.

• 1550 nm polarization-maintaining fiber optic communication systems
• Coherent optical communication modules
• Multi-channel optical modules and transceiver packaging
• Silicon photonic chip coupling and photonic integration packaging
• Fiber optic sensing, interferometer, and polarization control systems
• Optical path coupling for lasers, modulators, and detectors
• Laboratory optical path testing platforms and high-precision optical equipment
