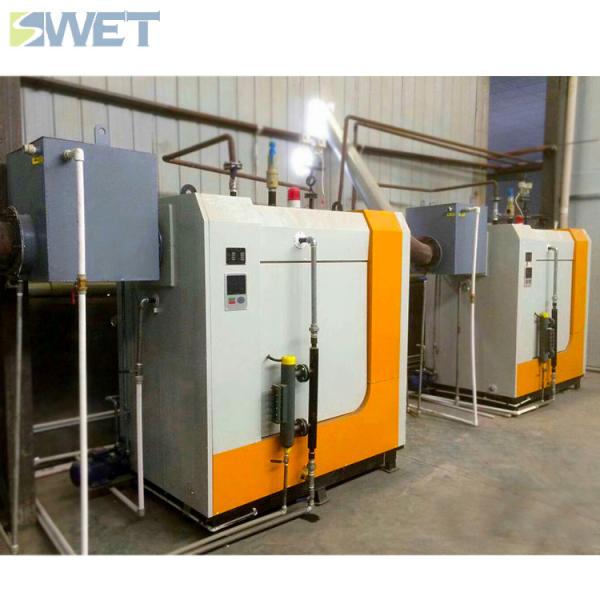

0.7 ton 490kw small 700kg home waste oil burner heating boiler
0.7 ton 490kw small 700kg home waste oil burner heating boiler
0.7 ton 490kw small 700kg home waste oil burner heating boiler
0.7 ton 490kw small 700kg home waste oil burner heating boiler
Specifications
Brand Name :
Swet
Model Number :
YDZ0.7-0.7-Y
Certification :
ISO9001
Place of Origin :
Henan Province, China
MOQ :
1
Price :
14000USD-16800USD
Supply Ability :
1500 sets per year
Delivery Time :
15-30 days after payment received
Packaging Details :
The boiler is covered with a waterproof film and the transport package is a wooden box.
Rated evaporation :
0.7t/h
Rated pressure :
0.7Mpa
Rated steam temperature :
171℃
Thermal efficiency :
90%
Fuel consumption :
50kg/h
Approx dimensions :
2700*1600*2400mm
Approx weight :
3.7 ton
Water capacity :
<29L
Style :
horizontal
Design fuel :
oil
Output :
steam
Type :
water tube
Description

0.7 ton 490kw small 700kg home waste oil burner heating boiler

The boiler safety is equipped with multi-level interlock protection: pressure switch protection (automatic shutdown and alarm above set pressure), low water level protection (water level in boiler body is lower than warning water level, automatic power off and alarm), safety valve protection (boiler) The pressure exceeds the working pressure, and the air pressure is automatically reduced.) Ensure that the boiler is safe under all working conditions and safe to get home.
Technical parameters
Fuel Cost analysis (Take 100 kg per hour as an example)

Equipment selection

Steam volume

Energy consumption

Unit Price

Operating costs

Electrothermal steam boiler

100kg

72 kw/h

0.08 USD/kw

10.91 USD

Fuel steam boiler

100kg

7 kg/h

0.53 USD/kg

7.42 USD

Gas steam boiler

100kg

8 m³/h natural gas

0.34 USD/m³

5.45 USD

Biomass steam boiler

100kg

20 kg/h wood pellet

0.08 USD/kg

3.03 USD

oil steam boiler technical parameters

Rated evaporation

Rated pressure

Rated steam tempe

rature

Design thermal efficiency

Water capacity

Steam outlet

water intake

Drain valve

Dimensions

Shipping weight

Full load light diesel oil consumption

L

W

H

Kg/h

Mpa

℃

%

L

DN

DN

DN

mm

mm

mm

T

kg/h

300

0.7

170

93

<29

25

25

25

2400

1500

1600

1.9

18.8

400

0.7

170

93

<29

32

25

25

2400

1500

1800

2

25

500

0.7

170

93

<29

32

25

25

2700

1600

2400

3.6

31.3
700 0.7 170 93 <29 40 25 25 2700 1600 2400 3.7 50

1000

0.7

170

93

<29

50

25

25

2800

1600

2400

3.8

62.5
Rapid steam generation in five minutes, the thermal efficiency can reach more than 90%, the pressure is stable, and the running cost is low.
Low noise, low concentration of smoke and dust, no black smoke, fully in line with national first-class regional emission standards, environmentally friendly and reliable.
Fully automatic control system with automatic high and low water level protection, saving manpower.
Packaging & Shipping
Application
For food industry: food factory, beverage factory, bakery, high temperature milk sterilization, steamed soy milk, steamed steamed buns.
For pharmaceutical industry: hospital disinfection, hospital canteen, hospital bath, pharmaceutical equipment heating, cooking medicine.
For biological equipment industry: sterilizer, school laboratory, thermal test.
Our engineering case
OUR FACTORY
Our main products include circular fluidized bed (CFB) boilers, gas boilers, coal boilers, biomass boilers, oil boilers, power plant boilers, energy efficient boilers, slag boilers, efficient boilers, electric boilers, high pressure boilers, fully automatic Control of boilers, wood vapors biomass boilers, chain grate, condensing boilers, natural gas steam boilers, water pipe boilers, fire pipe boilers, all artificial intelligence boilers, biomass steam generators, refractory materials, boiler accessories and so on.
OUR ADVANTAGES
The China’s first circular flow bed (CFB)boiler manufacturer.
China 's top ten boiler manufacturing enterprises.
Shanghai Industrial Boiler Research Institute Industrial Boiler Technology Development Relying on the unit.
North China Water Conservancy and Hydropower University teaching and research base.
Chinese Academy of Sciences circulating fluidized bed boiler research and development base.
