Low nitrogen 10t/h oil gas fired steam boiler for industrial production
Low nitrogen 10t/h oil gas fired steam boiler for industrial production
Low nitrogen 10t/h oil gas fired steam boiler for industrial production
Low nitrogen 10t/h oil gas fired steam boiler for industrial production
Low nitrogen 10t/h oil gas fired steam boiler for industrial production
Low nitrogen 10t/h oil gas fired steam boiler for industrial production
Specifications
Brand Name :
SWET
Model Number :
WNS
Certification :
ISO9001
Place of Origin :
Henan China
MOQ :
1set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram，Cash or on the basis of mutual agreement
Supply Ability :
2000 set
Delivery Time :
30 days after receipt of deposit
Packaging Details :
Waterproof plastic packing wooden case.
Rated capacity :
10t/h
Working pressure :
1.25/1.6Mpa
Steam temperature :
194/204℃
Feed temperature :
20℃
Testing efficiency :
96.75%
Diesel consumption :
732kg/h
Application :
Industrial
Certificate :
ISO9001
Description

Low nitrogen 10t/h oil gas fired steam boiler for industrial production

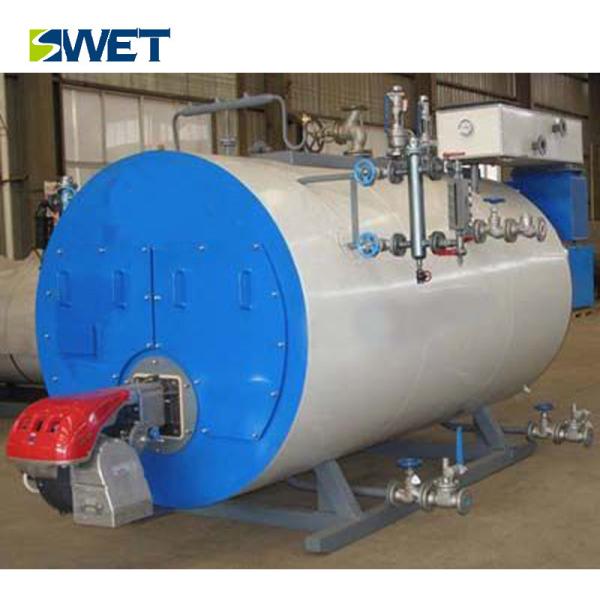

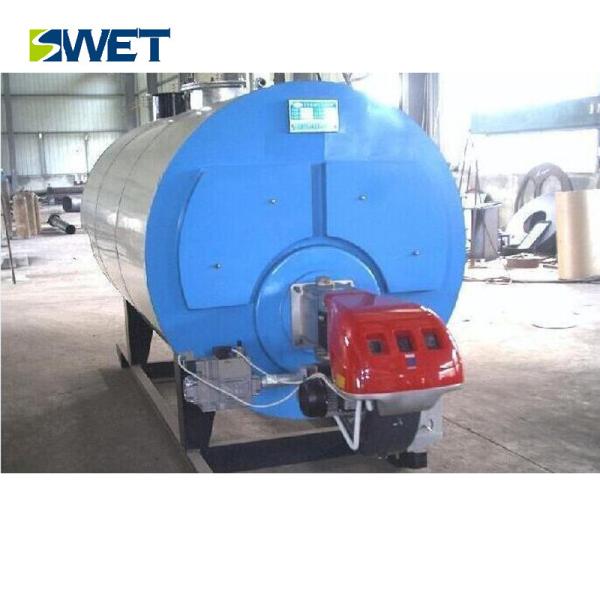

1.The WNS horizontal automatic fuel steam boiler is a horizontal quick-loading internal combustion three-pass fire tube boiler.

2.The bias furnace bile wet back structure is adopted. The second and third return smoke pipes are flushed by the high-temperature flue gas sequentially, and then discharged into the atmosphere from the rear smoke chamber through the chimney.

3.The boiler is equipped with active front and rear smokebox covers to facilitate boiler overhaul.

Technical Parameters

Model Unit WNS10-1.25(1.6)-Q(Y)
Rated capacity t/h 10
Working pressure Mpa 1.25/1.6
Steam temperature ℃ 194/204
Feed temperature ℃ 105
Testing efficiency ％ 96.75
Diesel consumption Kg/h 732.59
Gas consumption Nm³/h 837.25
Outline dimension mm(L*W*H) 6370*2812*3514

FAQ

1. Would it be possible for us to visit your factory?
Of course, we welcome you at any time.

2. Will your company supply samples?
Yes,we do.The sample expense will be deducted from the value of your order.

3. Which payment terms are you accept?
T/T, LC, Western Union, etc.
