Low pressure 5.6 MW Gas Oil Boiler for Food Industry , high efficiency oil boiler
Low pressure 5.6 MW Gas Oil Boiler for Food Industry , high efficiency oil boiler
Low pressure 5.6 MW Gas Oil Boiler for Food Industry , high efficiency oil boiler
Low pressure 5.6 MW Gas Oil Boiler for Food Industry , high efficiency oil boiler
Low pressure 5.6 MW Gas Oil Boiler for Food Industry , high efficiency oil boiler
Low pressure 5.6 MW Gas Oil Boiler for Food Industry , high efficiency oil boiler
Low pressure 5.6 MW Gas Oil Boiler for Food Industry , high efficiency oil boiler
Low pressure 5.6 MW Gas Oil Boiler for Food Industry , high efficiency oil boiler
Specifications
Brand Name :
SWET
Model Number :
WNS
Certification :
ISO9001
Place of Origin :
Henan,China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20000 Ton Per Year
Delivery Time :
25-30 works day
Packaging Details :
Wood care plus tarpaulin packaging
Rated capacity :
5.6MW
Working pressure :
0.7(1.0)(1.25)Mpa
Steam temperature :
95（115）（130）℃
Feed temperature :
70℃
Testing efficiency :
96.57%
Outline dimension :
5950*2556*3120mm
Usage :
Industrial
Structure :
Fire Tube,Water Tube
Pressure :
Low Pressure,High Pressure
Fuel :
Oil-fired,Gas-fired
Application :
food,textile,School,Machinery Industry
Description

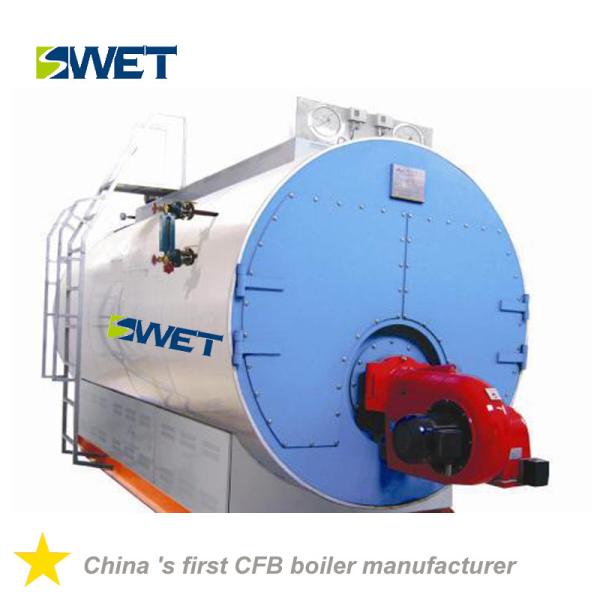

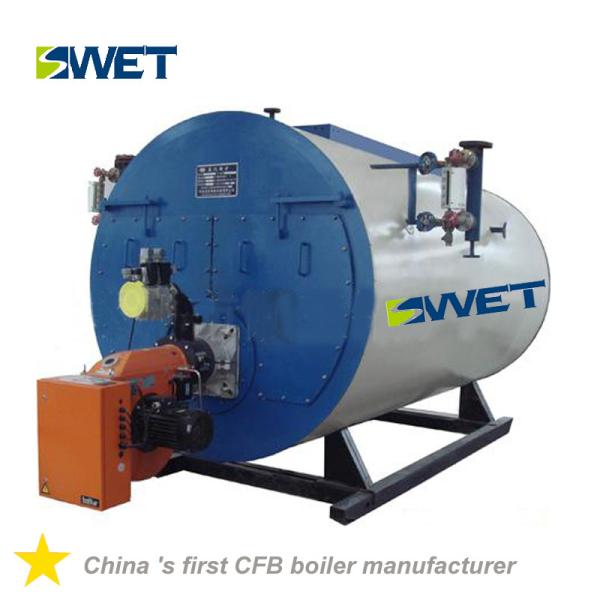

Low pressure 5.6 MW gas oil hot water boiler for Food Industry

Product Description

WNS series automatic fuel (gas) horizontal hot water boiler (utility model patent) adopts horizontal three-way wet back structure, which improves the boiler operating environment and improves the boiler combustion efficiency and service life.

The entire flue gas passage of the boiler is placed in the water, with a hot water tank in the tail and a well-designed thermal insulation outsourcing design. The smoke box seal adopts a labyrinth structure to avoid the occurrence of smoke leakage in the smoke box.

Technical Parameters

Model Unit WNS5.6
Rated capacity MW 5.6
Working pressure Mpa 0.7(1.0)(1.25)
Steam temperature ℃ 95(115)(130)
Feed temperature ℃ 70
Testing efficiency ％ 96.57
Diesel consumption Kg/h 541.80
Gas consumption Nm³/h 619.2
Outline dimension mm(L*W*H) 5950*2556*3120

Low pressure 5.6 MW Gas Oil Boiler for Food Industry , high efficiency oil boiler

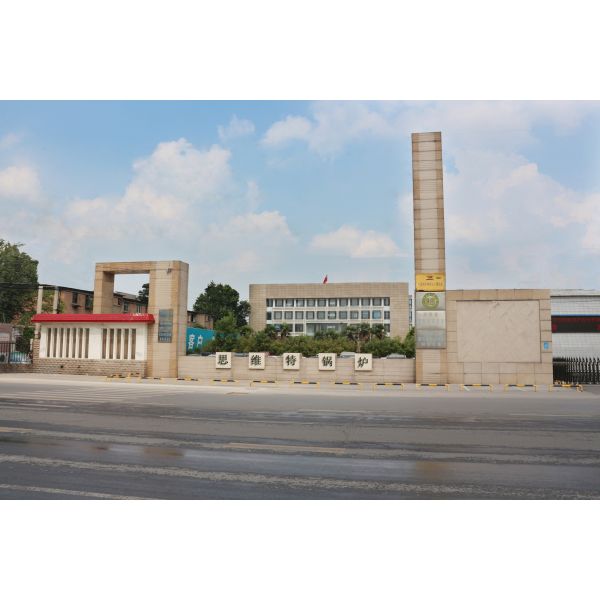

Factory Photo

Low pressure 5.6 MW Gas Oil Boiler for Food Industry , high efficiency oil boiler

Focus on the achievement of quality, Professional to create the future.
