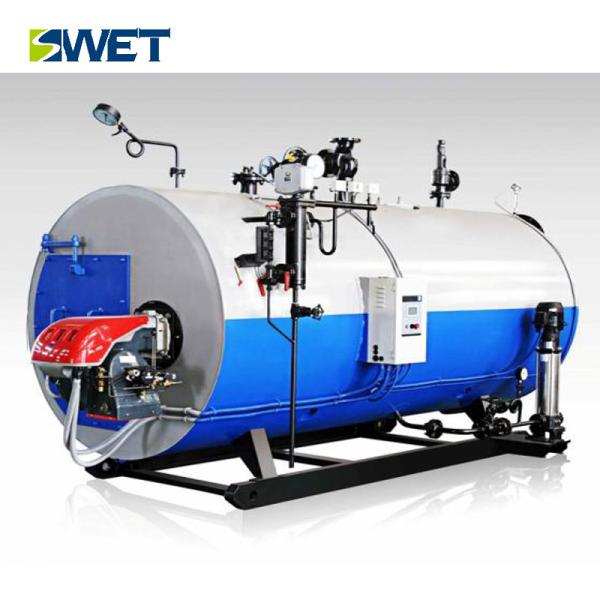

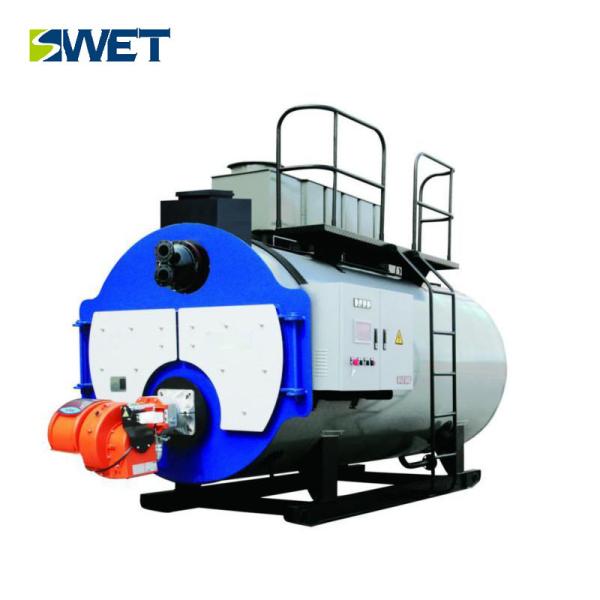

Quick loading 10t/h Gas Oil Boiler for Paper industry , high efficiency gas steam boiler
Quick loading 10t/h Gas Oil Boiler for Paper industry , high efficiency gas steam boiler
Quick loading 10t/h Gas Oil Boiler for Paper industry , high efficiency gas steam boiler
Quick loading 10t/h Gas Oil Boiler for Paper industry , high efficiency gas steam boiler
Quick loading 10t/h Gas Oil Boiler for Paper industry , high efficiency gas steam boiler
Quick loading 10t/h Gas Oil Boiler for Paper industry , high efficiency gas steam boiler
Specifications
Brand Name :
SWET
Model Number :
WNS
Certification :
ISO9001
Place of Origin :
Henan,China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 Set Per Year
Delivery Time :
25-30 works day
Packaging Details :
Wood care plus tarpaulin packaging
Rated capacity :
10t/h
Working pressure :
1.25/1.6Mpa
Steam temperature :
194/204℃
Feed temperature :
20℃
Testing efficiency :
96.75%
Oil consumption :
730kg/h
Outline dimension :
6370*2812*3514mm
Usage :
Industrial,hospital chemical industry school,Industry or Power Station,Steam Outputing
Application :
food,textile,School,Machinery Industry
Structure :
Fire Tube,Water Tube
Description

Quick loading 10t/h oil fired industrial steam boiler for Paper industry

Product Description

1. .The WNS horizontal automatic fuel steam boiler is a horizontal quick-loading internal combustion three-pass fire tube boiler.

2.The bias furnace bile wet back structure is adopted. The second and third return smoke pipes are flushed by the high-temperature flue gas sequentially, and then discharged into the atmosphere from the rear smoke chamber through the chimney.

3.The boiler is equipped with active front and rear smokebox covers to facilitate boiler overhaul.

Advantage

1 Boiler with light oil and natural gas as design fuel can also burn city gas or liquefied petroleum gas with wide adaptability, high efficiency and low energy consumption.
2 The boiler body adopts full butt weld wet back structure, low-profile full-wave furnace, boiler structure flexibility and heat-retractable, safe and reliable.
3 The use of 80mm thick aluminum silicate fiber insulation layer, light weight, good thermal insulation, heat loss.
4 Boiler computer control, high degree of automation, all kinds of safety protection device is complete, easy to operate, safe and reliable operation.
5 Boiler automation instrumentation and auxiliary equipment is reasonable, advanced and reliable.
6 The boiler body resistance is small, stable operation, saving power consumption, low noise.
7. Quick-mounted overall structure, small size, compact structure, easy installation.
8 There is no smoke in the boiler discharge, the emission concentration of SO2 and NOx is extremely low, and the environmental benefit is remarkable.

Technical Parameters

Model Unit WNS10-1.25(1.6)-Q(Y)
Rated capacity t/h 10
Working pressure Mpa 1.25/1.6
Steam temperature ℃ 194/204
Feed temperature ℃ 105
Testing efficiency ％ 96.75
Diesel consumption Kg/h 732.59
Gas consumption Nm³/h 837.25
Outline dimension mm(L*W*H) 6370*2812*3514
