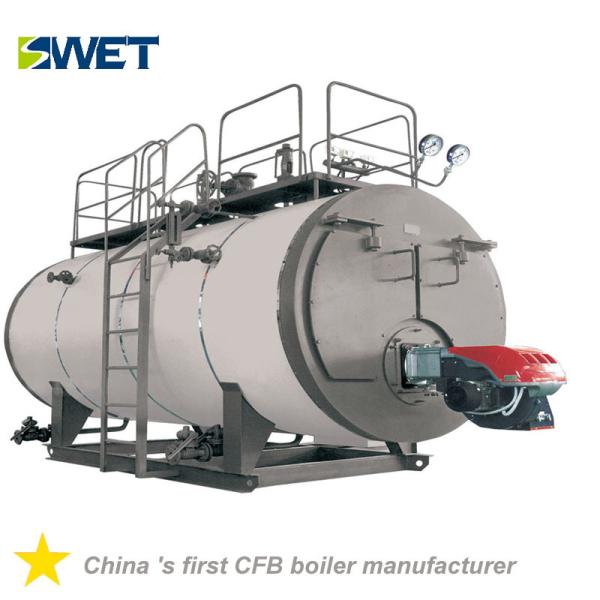

High efficiency 8.4 MW gas oil hot water boiler for Food Industry
High efficiency 8.4 MW gas oil hot water boiler for Food Industry
High efficiency 8.4 MW gas oil hot water boiler for Food Industry
High efficiency 8.4 MW gas oil hot water boiler for Food Industry
High efficiency 8.4 MW gas oil hot water boiler for Food Industry
High efficiency 8.4 MW gas oil hot water boiler for Food Industry
Specifications
Brand Name :
SWET
Model Number :
WMS
Certification :
ISO9001
Place of Origin :
Henan,China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20000 Ton Per Year
Delivery Time :
25-30 works day
Packaging Details :
Wood care plus tarpaulin packaging
Rated capacity :
8.4MW
Working pressure :
0.7(1.0)(1.25)Mpa
Steam temperature :
95（115）（130）℃
Feed temperature :
70℃
Testing efficiency :
96.92%
Outline dimension :
6605*2710*1728mm
Description

High efficiency 8.4 MW gas oil hot water boiler for Food Industry

Product Description

The entire flue gas passage of the boiler is placed in the water, with a hot water tank in the tail and a well-designed thermal insulation outsourcing design. The smoke box seal adopts a labyrinth structure to avoid the occurrence of smoke leakage in the smoke box.

Advantage

This series boiler is three return fire tube steam boiler.It equipped with good performance burner and advanced techniques.The burning control,water feed,programs run,etc,is full automatic.This fantasy boiler is safe and reliable,and also has the advantage of compact structure,simple operation,easy installation,high efficiency,less pollution and noise,etc.
The series boiler is three-return fire tube hot water boiler.
Atmosphere through three-return smoke tube, smoke chamber.
It equipped with good performance burner and advanced techniques
Simple operation, easy installation, high efficiency, less pollution and noise, etc
It is widely used for factory, hotel, hospital, office building, etc

Technical Parameters

Model Unit WNS8.4
Rated capacity MW 8.4
Working pressure Mpa 0.7(1.0)(1.25)
Steam temperature ℃ 95(115)(130)
Feed temperature ℃ 70
Testing efficiency ％ 96.92
Diesel consumption Kg/h 791.88
Gas consumption Nm³/h 905
Outline dimension mm(L*W*H) 6605*2710*1728

High efficiency 8.4 MW gas oil hot water boiler for Food Industry
