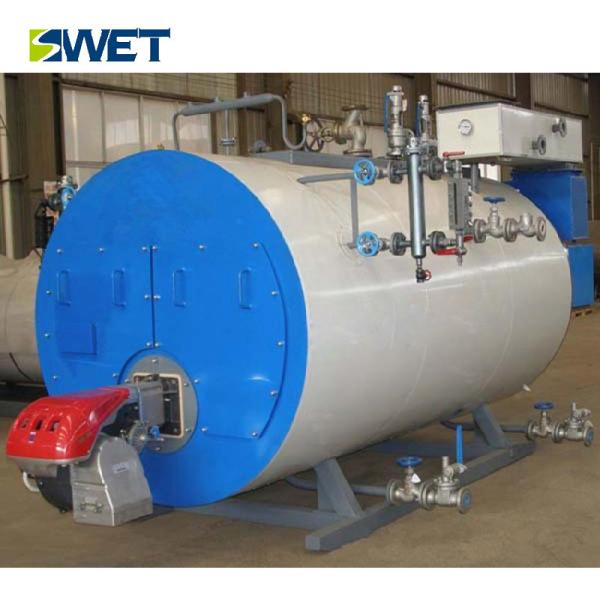

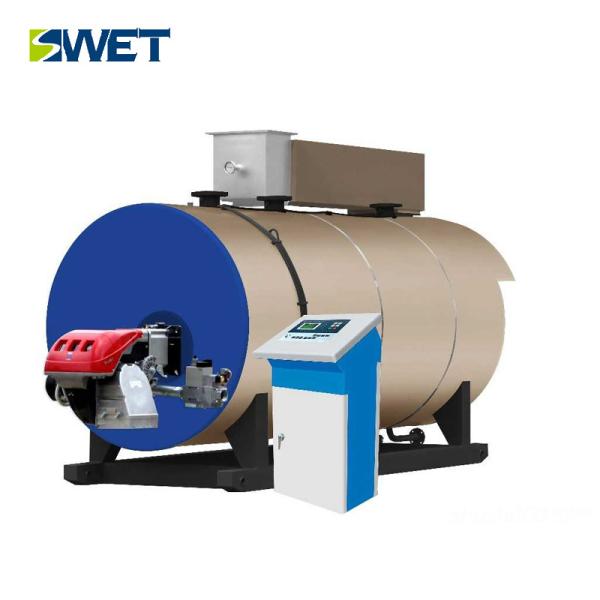

Product Description
WNS series hot water boiler adopts the most sophisticated three returns all wet back structure,thread smoke tube structure weld joint with high quality.
Reasonable boiler combustor design, suitable for different fuels such as diesel, natural gas, town gas and mazout, the fuels can burn completely and increasing the radiation heating furnace area,reducing the NOX emissions.
100% corrugated furnace and spirally corrugated tube, can absorb flame heat effectively, thermal efficiency can be more than 96%.
Key Features
Technical Parameters
Model | Unit | WNS1.4 |
Rated capacity | MW | 1.4 |
Working pressure | Mpa | 0.7(1.0) |
Steam temperature | ℃ | 95(115) |
Feed temperature | ℃ | 20 |
Testing efficiency | % | 95.52 |
Diesel consumption | Kg/h | 138.34 |
Gas consumption | Nm³/h | 158.1 |
Outline dimension | mm(L*W*H) | 3270*1850*1930 |

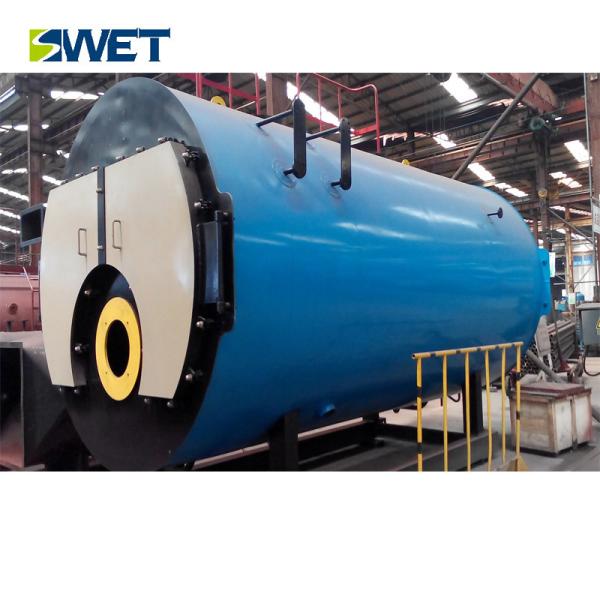

Factory Photo
Focus on the achievement of quality, Professional to create the future.
