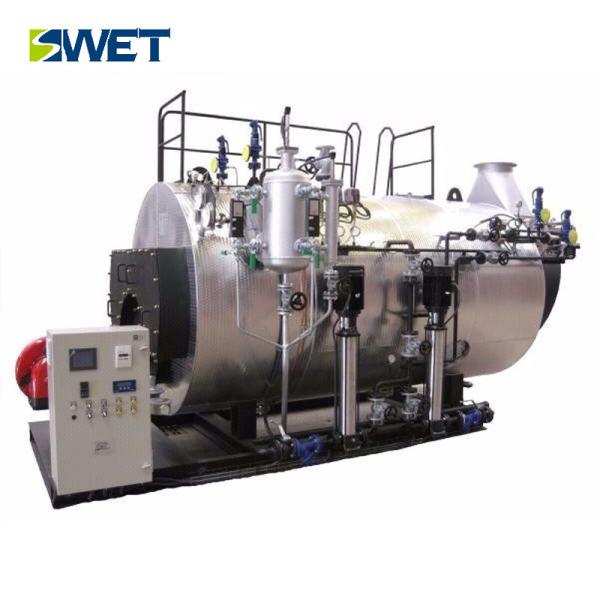

Gas oil hot water boiler Environmentally friendly WNS 2.1 MW 200kg/h Diesel Consumption
Gas oil hot water boiler Environmentally friendly WNS 2.1 MW 200kg/h Diesel Consumption
Gas oil hot water boiler Environmentally friendly WNS 2.1 MW 200kg/h Diesel Consumption
Gas oil hot water boiler Environmentally friendly WNS 2.1 MW 200kg/h Diesel Consumption
Gas oil hot water boiler Environmentally friendly WNS 2.1 MW 200kg/h Diesel Consumption
Gas oil hot water boiler Environmentally friendly WNS 2.1 MW 200kg/h Diesel Consumption
Specifications
Brand Name :
SWET
Model Number :
WNS
Certification :
ISO9001
Place of Origin :
Henan,China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 Set Per Year
Delivery Time :
25-30 works day
Packaging Details :
Wood care plus tarpaulin packaging
Rated capacity :
2.1MW
Working pressure :
0.7(1.0)Mpa
Steam temperature :
95(115)℃
Feed temperature :
20℃
Testing efficiency :
95.6℃
Diesel consumption :
200kg/h
Gas consumption :
229Nm3/h
Outline dimension :
4580*2045*2260mm
Description

Environmentally friendly WNS 2.1 MW gas oil fired hot water boiler

Product Description

1. Oil gas boiler with light oil and gas for fuel, can also be used for city gas or liquefied petroleum gas, wide fuel adaptability, high efficiency and energy saving, low operation cost.

2. The oil gas boiler adopts full butt welding wet back structure, low layout of whole corrugated furnace boiler structure, elastic and thermal expansion good, safe and reliable.

3. Using 80mm thick aluminum silicate fiber insulation layer, light weight, good heat insulation effect, small heat loss.

4. The oil gas boiler computer control, high degree of automation, all kinds of safety protection device is complete, easy to operate, safe and reliable operation.

5. The oil gas boiler automation instrument and auxiliary reasonable, advanced and reliable.

Advantage

This series boiler is three return fire tube steam boiler.It equipped with good performance burner and advanced techniques.The burning control,water feed,programs run,etc,is full automatic.This fantasy boiler is safe and reliable,and also has the advantage of compact structure,simple operation,easy installation,high efficiency,less pollution and noise,etc.
The series boiler is three-return fire tube hot water boiler.
Atmosphere through three-return smoke tube, smoke chamber.
It equipped with good performance burner and advanced techniques
Simple operation, easy installation, high efficiency, less pollution and noise, etc
It is widely used for factory, hotel, hospital, office building, etc

Technical Parameters

Model Unit WNS2.1
Rated capacity MW 2.1
Working pressure Mpa 0.7(1.0)
Steam temperature ℃ 95(115)
Feed temperature ℃ 20
Testing efficiency ％ 95.6
Diesel consumption Kg/h 200.38
Gas consumption Nm³/h 229
Outline dimension mm(L*W*H) 4580*2045*2260

Gas oil hot water boiler Environmentally friendly WNS 2.1 MW 200kg/h Diesel Consumption

Factory Photo

Focus on the achievement of quality, Professional to create the future.

Gas oil hot water boiler Environmentally friendly WNS 2.1 MW 200kg/h Diesel Consumption
