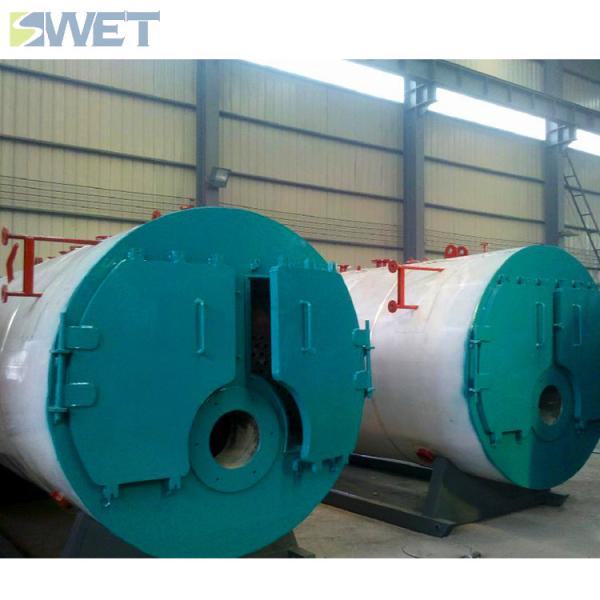

1.25mpa 10t/H Water Tube Diesel Steam Boiler WNS Series
1.25mpa 10t/H Water Tube Diesel Steam Boiler WNS Series
Specifications
Brand Name :
Swet
Model Number :
WNS10-1.25-Y
Certification :
ISO9001
Place of Origin :
Henan Province, China
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
1500 sets per year
Delivery Time :
15-30 days after payment received
Packaging Details :
The boiler is covered with a waterproof film and the transport package is a wooden box.
Rated evaporation :
10000 kg/h
Full load oil consumption :
688kg/h
Rated pressure :
1.25Mpa
Rated steam temperature :
194℃
Thermal efficiency :
92.43%
Dimensions :
7250*2860*3300 (mm)
Shipping weight :
23241kg
Power consumption :
37kw
Exhaust gas temperature :
136.3 degree celsius
Fuel :
light diesel, oil
Power supplly :
380V 50Hz (can be customized)
Description

WNS series 1.25mpa 10t/h water tube diesel steam boiler

The main body of WNS series steam boiler is a shell-type full wet back and three-pass pyrotechnic pipe structure. The flame burns in a large combustion chamber with slight positive pressure, and the combustion is sufficient, the furnace heat load is low, and the emissions of harmful substances SOX and NOX are small.
The structure of the corrugated furnace and the threaded smoke tube not only improves the strength and strengthens the heat transfer effect, but also satisfies the needs of thermal expansion of each part. The use of new thermal insulation materials, light weight, less heat loss, and good thermal insulation performance.
The water level alarm uses stainless steel as the electrode rod and polytetrafluoroethylene as the insulating material. Insert from above, it is not easy to hang dirt, reliable performance and long service life. The front and rear smoke boxes are connected by hinges, which can be opened easily, and the maintenance is convenient and quick.
Technical parameters
Model WNS10-1.25-Y
Rated evaporation (t/h) 10
Rated working pressure (Mpa) 1.25
Rated steam temperature (°C) 194
Design thermal efficiency (%) 92.43
Rated oil consumption (Nm³/h) 688
Power consumption (KW) 37.0
Applicable fuel Light diesel, Natural gas, Liquid Alcohol-based fuel
Applicable power supply (AC) 380V 50HZ
Combustion method Room combustion, Slightly positive pressure combustion
Exhaust temperature (°C) 136.3
Approx shipping weight (kg) 23241
Approx shipping size (mm) 7250*2860*3300
Note: Please contact us to confirm the relevant data before prefabrication, reservation and boiler room design.
Packaging & Shipping
Production Process
Application
Textile industry: shrinking machine, dryer, washing machine, dehydration machine, printing, ironing machine and other equipment.
Food machinery industry: steamer, packaging machines, paint equipment, sealing machines and other equipment.
Other industries: automotive steam cleaning industry,hotels, schools, enterprises and other hot water supply and other industries.
Company Information
It’s the national designated A-class boilers and D1, D2 class pressure vessel manufacturing key enterprises and has passed ISO9001 international quality management certification system certification.
It holds level 1 boiler installation permit ,National special equipment manufacturing license ,National special equipment installation remould maintenance permits and so on.
In 1979 the world's first circulating fluidized bed boiler developed by the Austrian company in Finland. In 1987 China's first circulating fluidized bed boiler was born in our factory. In 2016 In order to meet current emissions and reduce energy consumption requirements, our company launched efficient low-emission energy-saving circulating fluidized bed boiler, has been identified by the national institute of special equipment.
China 's top ten boiler manufacturing enterprises. Chinese Academy of Sciences circulating fluidized bed boiler research and development base.
Other Products
Pls tell us below to confirm a boiler model and offer the right boiler price:
1) What is the application of the boiler?
2) What is the capacity per hour do you need?
3) Which fuel do you want to use for your boiler, coal, biomass, gas & oil, or others?
4) What is the pressure of your boiler?
