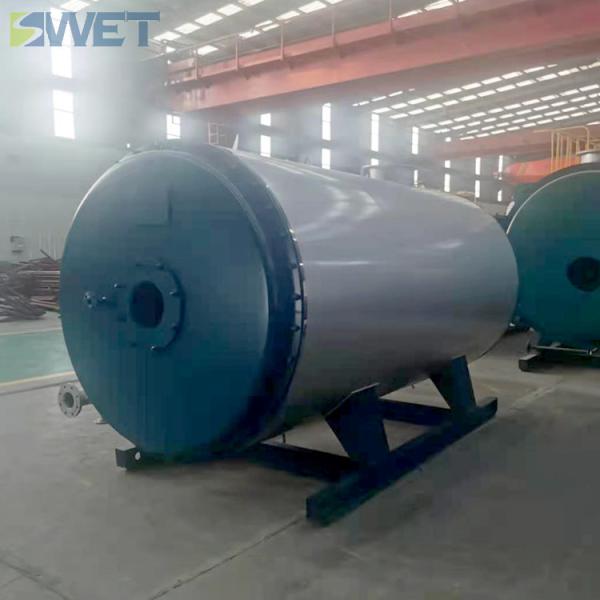

Four Pass Thermal Heating Diesel Steam Boiler 1.0Mpa Forced Circulation
Four Pass Thermal Heating Diesel Steam Boiler 1.0Mpa Forced Circulation
Specifications
Brand Name :
Swet
Model Number :
YYW-240YQ
Certification :
ISO9001
Place of Origin :
Henan Province, China
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
1500 sets per year
Delivery Time :
15-30 days after payment received
Packaging Details :
The boiler is covered with a waterproof film and the transport package is a wooden box.
Rated thermal power :
200000kcal
Rated pressure :
1.0Mpa
Maximum working temperature :
310℃
Thermal efficiency :
92.1%
Exhaust gas temperature :
149.7 degree celsius
Description

Four Pass Thermal Heating Diesel Steam Boiler 1.0Mpa Forced Circulation

Product Description
YYW series oil thermal heater boiler is forced-circulation fuel oil (gas) boiler.
This boiler have large heating area and compact structure. The heating surface is composed of inner, middle, outer (or inner, outer) coil pipes. Inner coil pipe is the radiation heating surfae. Middle and outer pipe and the outer surface of inner pipe form the convection heating surface.
The fuel burner in the combustion chamber which is composed of inner coil pipe. After absorbing most of heat by the radiation heating surface, high temperature smoke enters the convection heating surface and makes heat transfer.
The efficient four-pass design enables comprehensive and uniform heating, with low thermal inertia. The air comes from the front of the burner into the boiler. Then through the jacket between the boiler's inner and outer layers, it reaches the rear and participates in combustion. In the process the smoke experiences four passes and finally is discharged from the chimney.
Process technology
Case
Technical Parameters
Model YYW-120YQ YYW-240YQ YYW-350YQ YYW-500YQ YYW-700YQ YYW-1000YQ YYW-1200YQ
Rated thermal power(kw) 120 240 350 500 700 1000 1200
Thermal efficiency(%) 92.6 92.1 92.6 92.5 92.2 92.4 92.9
Design pressure(Mpa) 1.0 1.0 1.0 1.0 1.0 1.0 1.0
Maximum working temperature(℃) 310 310 310 310 310 310 310
Furnace content oil volume(m³) 0.08 0.23 0.29 0.35 0.42 0.59 0.73
Piping connection port(DN) 32 65 65 80 80 100 100
Exhaust smoke temperature(℃) 119.2 149.7 147.2 148.7 147.1 123.2 132.6
Circulating oil volume(m³/h) 9.66 19.3 20.5 40.27 56.37 80.5 96.6
Applicable fuel light diesel oil, natural gas, liquid alcohol based fuel
Maximum shipping size(mm) 1760*1170*1450 2420*1440*1740 2450*1440*1880 2730*1590*2100 3100*1690*2180 3300*1800*2300 3780*1900*2160
Model YYW-1400YQ YYW-1900YQ YYW-2400YQ YYW-2900YQ YYW-4100YQ YYW-4700YQ YYW-6000YQ
Rated thermal power(kw) 1400 1900 2400 2900 4100 4700 6000
Thermal efficiency(%) 92.2 92.1 92.2 92.8 92.3 93.03 92.6
Design pressure(Mpa) 1.0 1.0 1.0 0.8 0.8 0.8 0.8
Maximum working temperature(℃) 310 310 310 310 320 320 320
Furnace content oil volume(m³) 1.07 1.4 1.7 2.29 3.52 5.4 8.9
Piping connection port(DN) 125 150 150 200 200 200 250
Exhaust smoke temperature(℃) 128 148.9 136.2 135.4 137.1 126.8 132.6
Circulating oil volume(m³/h) 112.7 153.1 193.3 233.5 219.66 251.8 321.5
Applicable fuel light diesel oil, natural gas, liquid alcohol based fuel
Maximum shipping size(mm) 4400*2000*2570 4550*1940*2920 4900*2270*2520 5500*2320*2620 6750*2830*3100 6820*3100*3280 7740*3400*3500
Packing and Shipping
Company Information
Henan swetboiler CO.,Ltd. has more than 60 years of boiler manufacturing experience.
The company has a complete quality assurance system.
The company is well equipped, such as advanced detectors and the most advanced flaw detectors in China.
FAQ
How to get a boiler price list?
Please be advise these information of the boiler you need, we will send you quotation after confirmation.
What is the application of the boiler?
What is the capacity per hour do you need?
Which fuel do you want to use for your boiler, coal, biomass, gas & oil, or others?
What is the pressure of your boiler?
Our Customer Visit
Our Services
Technical services
According to the user's technical requirements, at any time to design units user units to provide technical services.
Provide detailed design and installation of technical parameters for the user unit.Providing technical services in the installation engineering for the user units and providing on-site technical support.
After installation, the boiler host can be debugged free of charge. The company is free to send experts to the boiler for the use of units of fireman on-site technical training, training content including operation, maintenance, maintenance.
Quality assurance
The design and manufacture of the products are strictly carried out in accordance with the "GB" standard and the factory quality assurance system of China, and are strictly monitored according to the national standards of China.
Provide the quality guarantee issued by the competent department to the use unit.
After the product is put into operation, it can guarantee the user to achieve the required output and stable and reliable operation.
Any Question, Please contact us ,we serve you 24 hours !
