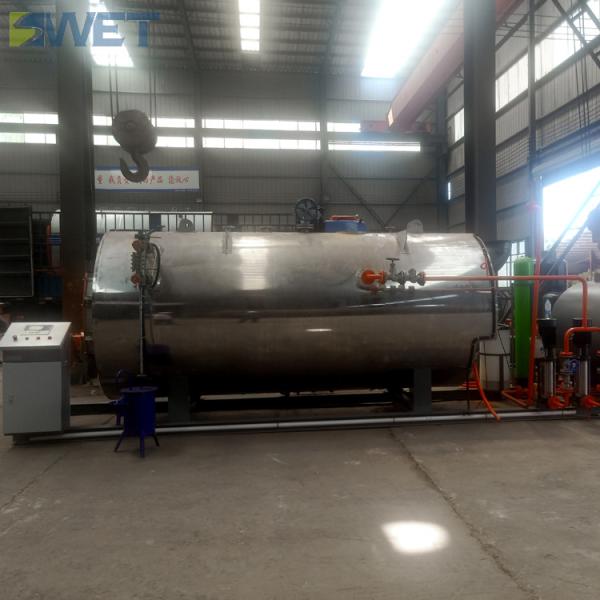

Sterilization Tank 6000kg/H Diesel Steam Boiler 1.25mpa
Sterilization Tank 6000kg/H Diesel Steam Boiler 1.25mpa
Specifications
Brand Name :
Swet
Model Number :
WNS6-1.25-Q
Certification :
ISO9001
Place of Origin :
Henan Province, China
MOQ :
1
Payment Terms :
T/T, Western Union
Supply Ability :
1500 sets per year
Delivery Time :
15-30 days after payment received
Packaging Details :
The boiler is covered with a waterproof film and the transport package is a wooden box.
Rated evaporation :
6ton/hr (6000kgs/hr)
Rated pressure :
1.25Mpa
Rated steam temperature :
194℃
Thermal efficiency :
92.47%
Full load gas consumption :
498 standard cubic meter per hour
Approx dimensions :
6.2*2.24*2.69m
Approx weight :
13505kg
Exhaust gas temperature :
129.5 degree celsius
Description

1.25mpa Chinese Factory 6000kg/Hr Best Steam Boiler

The body of this type of steam boiler is a shell type full-wet-back parallel flow three pass smoke tube structure, the combustion is sufficient. Heat load of the boiler chamber is low.
Reasonable boiler combustor design, suitable for different fuels such as diesel, natural gas, town gas and mazout, the fuels can burn completely and increasing the radiation heating furnace area,reducing the NOX emissions.
The new type thermal insulation material is light in weight, less in heat loss, and also has good insulation properties. The rational internal equipments configuration ensures the high quality steam output.
Technical parameters
Model WNS6-1.25-Q
Rated evaporation (t/h) 6
Rated working pressure (Mpa) 1.25
Rated steam temperature (°C) 194
Design thermal efficiency (%) 92.47
Rated gas consumption (Nm³/h) 498
Power consumption (KW) 27
Applicable fuel Light diesel, Natural gas, Liquid Alcohol-based fuel
Applicable power supply (AC) 380V 50HZ (can be customized)
Combustion method Room combustion, Slightly positive pressure combustion
Exhaust temperature (°C) 129.5
Approx shipping weight (kg) 13505
Approx shipping size (m) 6.2*2.24*2.69
Note: Please contact us to confirm the relevant data before prefabrication, reservation and boiler room design.
Application
Textile industry: shrinking machine, dry cleaning machine, dryer, washing machine, dehydration machine, printing and other equipment.
Food machinery industry: steamer, sterilization tank, packaging machines, paint equipment and other equipment.
Other industries: automotive steam cleaning industry, hotels, schools, enterprises and other hot water supply, railway concrete conservation and other industries.
Packaging & Shipping
Production Process
Company Information
Henan Swet (original name Desheng) Boiler Co.Ltd was established in 1954 ,We have continued to provide customers with more than 60 years of quality service, known as the king of China's boiler.
It’s the national designated A-class boilers and D1, D2 class pressure vessel manufacturing key enterprises and has passed ISO9001 international quality management certification system certification.
It holds level 1 boiler installation permit ,National special equipment manufacturing license ,National special equipment installation remould maintenance permits and so on.
Chinese Academy of Sciences circulating fluidized bed boiler research and development base.
Pls tell us below to confirm a boiler model and offer the right boiler price:
1) What is the application of the boiler?
2) What is the capacity per hour do you need?
3) Which fuel do you want to use for your boiler, coal, biomass, gas & oil, or others?
4) What is the pressure of your boiler?
