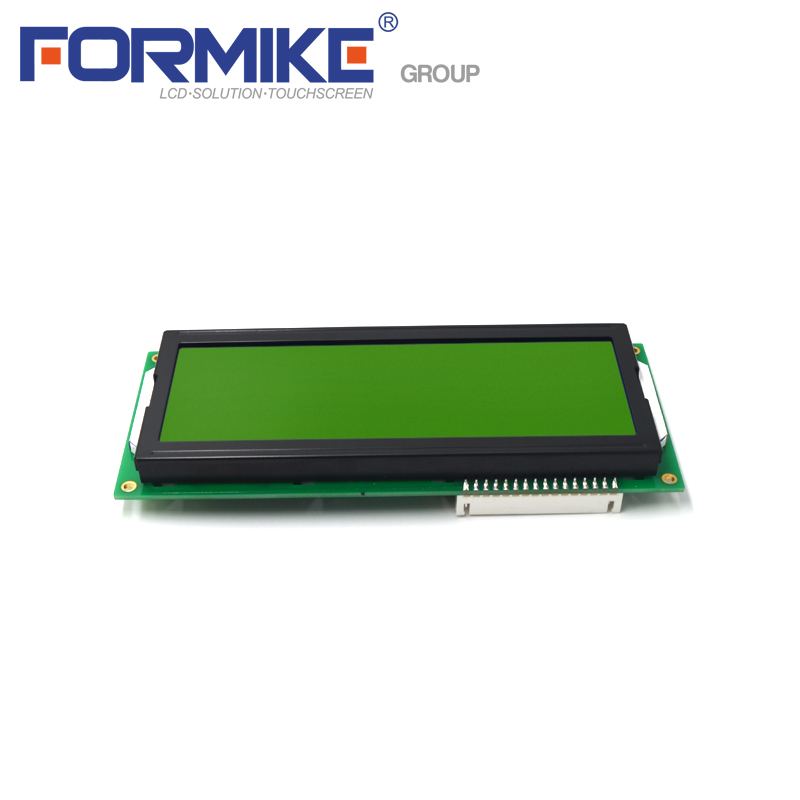

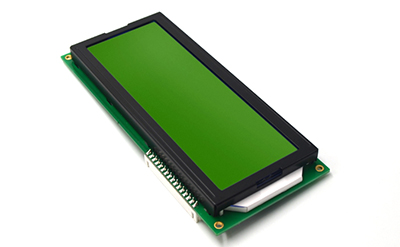

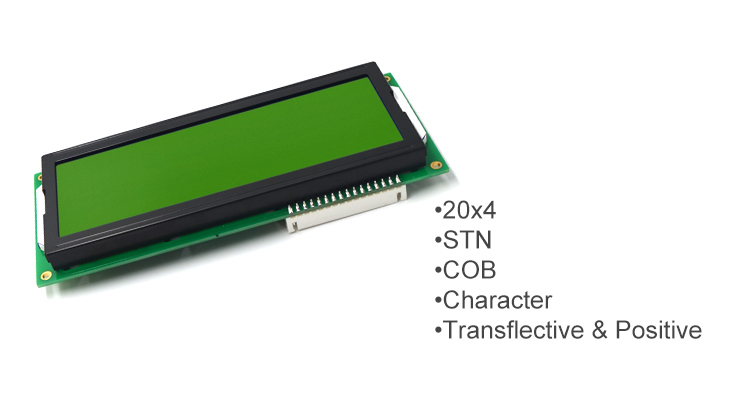

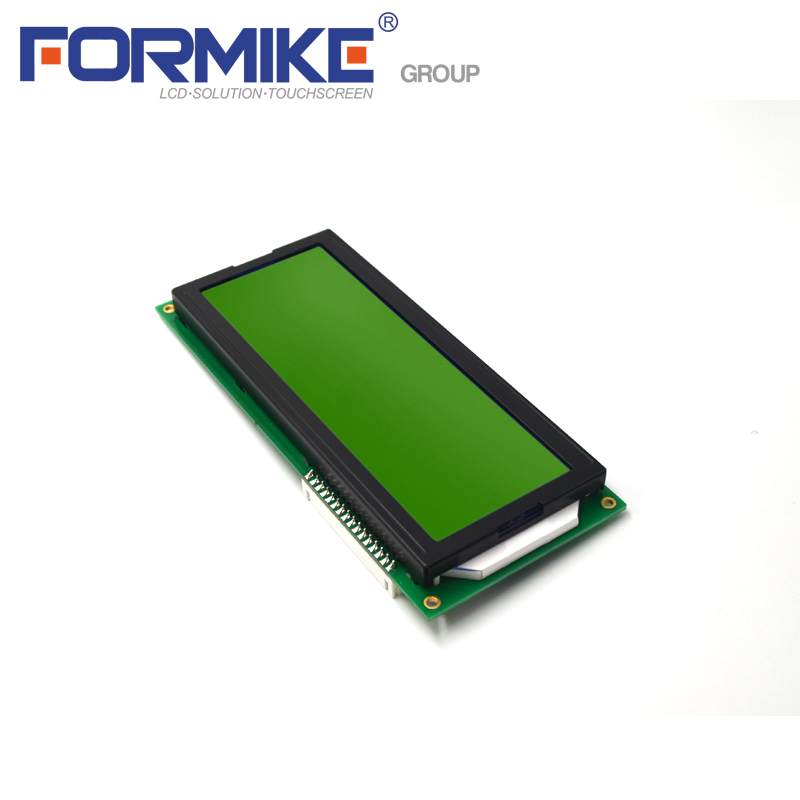

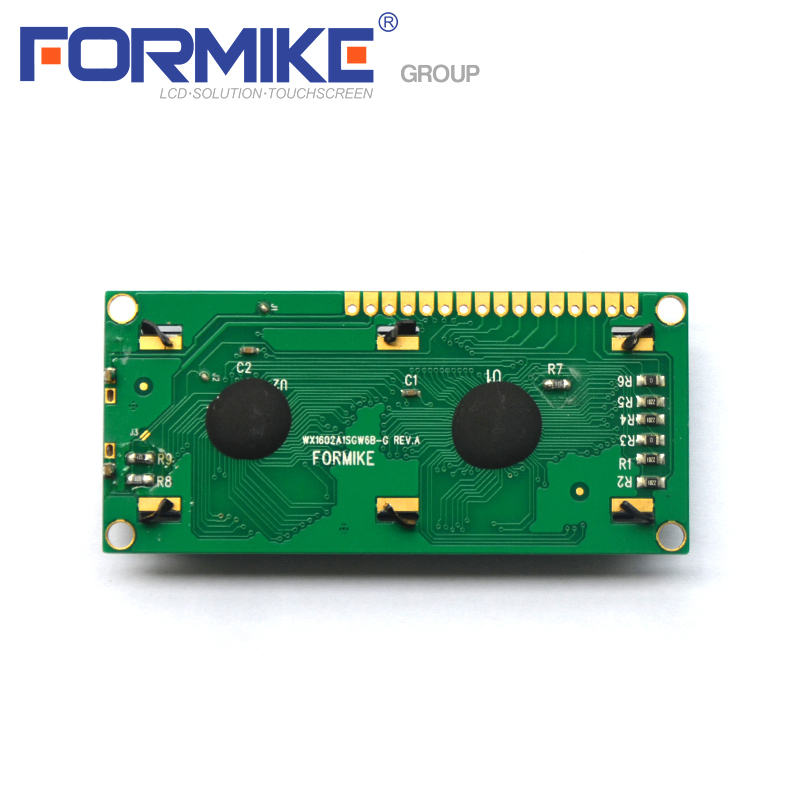

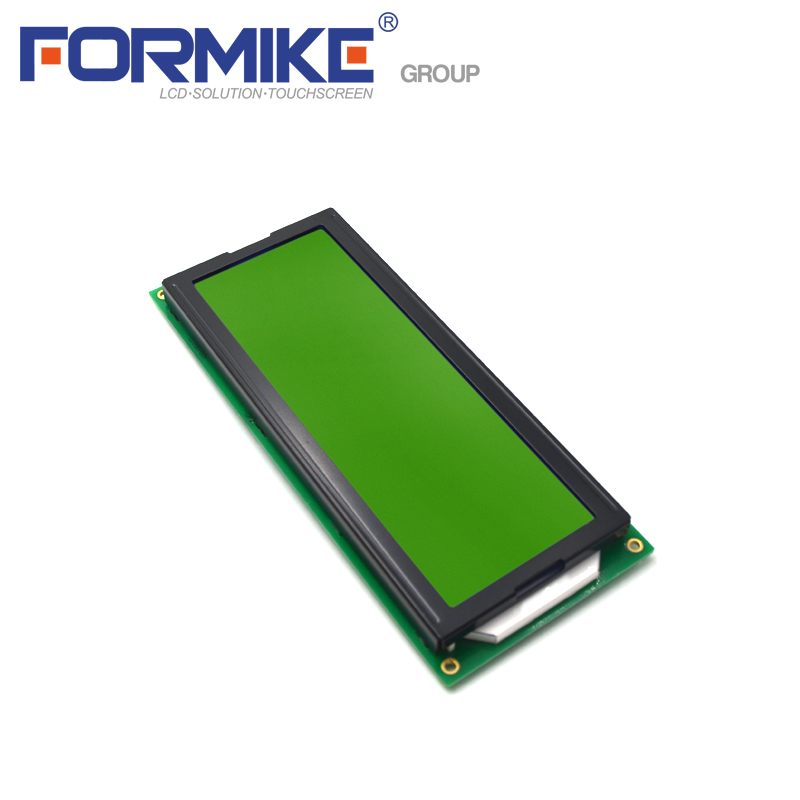

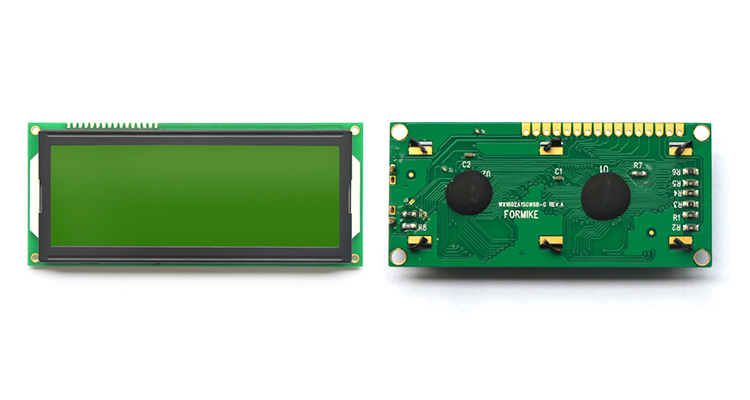

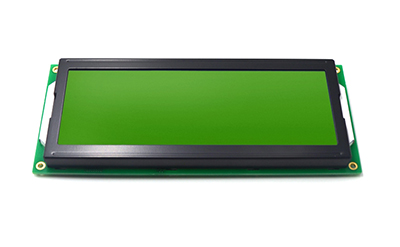

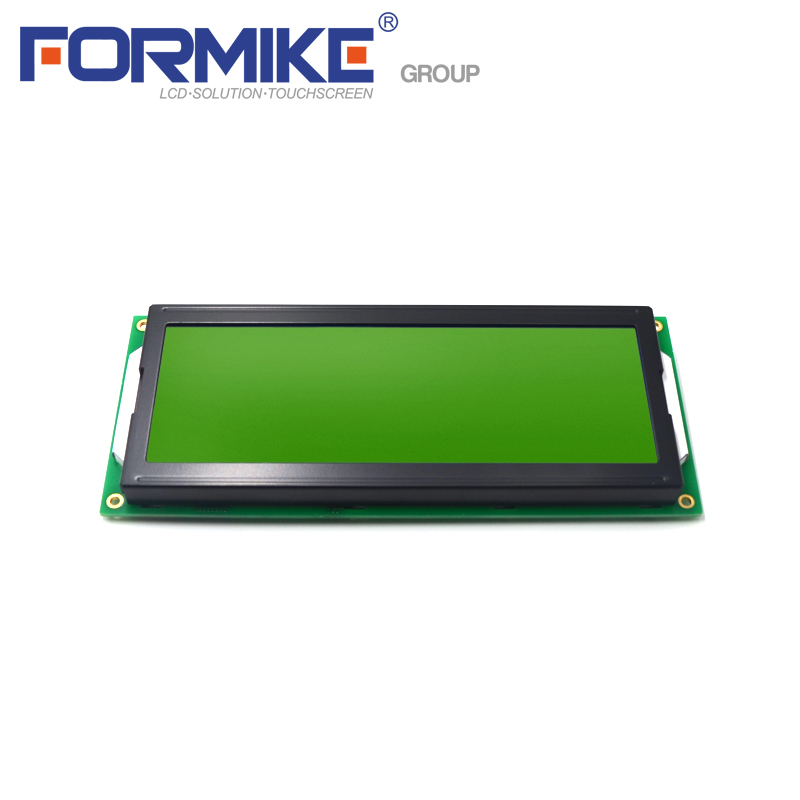

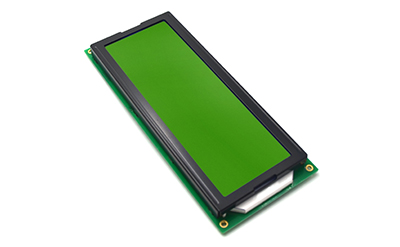

16pin 6805 20x4 LCD Display Characters 2004 Screen Module 5V
16pin 6805 20x4 LCD Display Characters 2004 Screen Module 5V
16pin 6805 20x4 LCD Display Characters 2004 Screen Module 5V
16pin 6805 20x4 LCD Display Characters 2004 Screen Module 5V
16pin 6805 20x4 LCD Display Characters 2004 Screen Module 5V
16pin 6805 20x4 LCD Display Characters 2004 Screen Module 5V
16pin 6805 20x4 LCD Display Characters 2004 Screen Module 5V
16pin 6805 20x4 LCD Display Characters 2004 Screen Module 5V
16pin 6805 20x4 LCD Display Characters 2004 Screen Module 5V
16pin 6805 20x4 LCD Display Characters 2004 Screen Module 5V
16pin 6805 20x4 LCD Display Characters 2004 Screen Module 5V
16pin 6805 20x4 LCD Display Characters 2004 Screen Module 5V
16pin 6805 20x4 LCD Display Characters 2004 Screen Module 5V
16pin 6805 20x4 LCD Display Characters 2004 Screen Module 5V
Specifications
Color :
Black display dot on yellow-green background with yellow-green backlight
Viewing Angle :
6 O'clock
Operating Temperature :
-20°C to 70°C
MOQ :
1 piece
Backlight :
LED
Display format :
20character*4 line
Payment Terms :
T/T,L/C,Credit card,Cash
Product Name :
20 * 4 LCD Display Characters 2004 LCD Screen with 16pin 6805 or Z80 8 BIT or 4 BIT Interface
Controller :
SPLC780D
Model Number :
WC2004Y3SBY6B-T
Display Type :
Character LCD Display Panel
Dimensions :
146.0mm * 62.5mm * 14.0mm
Display Mode :
STN
Brand Name :
Formike
Packaging Details :
Tray + Inner Box + Carton
Interface :
16 Pin, 4-bit or 8-bit MPU (6805 or Z80)
Place of Origin :
China
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Operating Voltage :
5V
Supply Ability :
5000000000 pieces/year
Description

20 * 4 LCD Display Characters 2004 LCD Screen with 16pin 6805 or Z80 8 BIT or 4 BIT Interface

LCD Name 20 * 4 LCD Display Characters 2004 LCD Screen with 16pin 6805 or Z80 8 BIT or 4 BIT Interface

Display Format

20character*4 line

Display Mode

STN, Positive, Transflective

LCD Color

Display dot : Black

Background: Yellow-Green

Drive IC

SPLC780D

Outline Dimension

146.00(W) x62.50(H) x 14.00MAX(T)mm

Viewing Area

123.00MIN(W) x43.00MIN(H)mm

Viewing Direction

6 O’clock

Interface Input Data

4-bit or 8-bit interface(6805 or Z80)

Backlight

Yellow-Green

Driving Method

1/16 Duty, 1/5 Bias

Operating Temp.

 -20℃~+70℃

Storage Temp.

-30℃~+80℃

16pin 6805 20x4 LCD Display Characters 2004 Screen Module 5V

16pin 6805 20x4 LCD Display Characters 2004 Screen Module 5V

16pin 6805 20x4 LCD Display Characters 2004 Screen Module 5V 16pin 6805 20x4 LCD Display Characters 2004 Screen Module 5V
16pin 6805 20x4 LCD Display Characters 2004 Screen Module 5V
