Specifications
Backlight Color :
Usually Y-G or Blue or Gray
Dimensions :
98.0mm * 60.0mm * 12.8mm
MOQ :
1 piece
Product Name :
2004a LCD Display 4x20 20x4 LCD Module With COB STN Character Type
Operating Temperature :
-20°C to 70°C
Viewing Angle :
6 O'clock
Operating Voltage :
3.3V / 5V
Backlight :
LED
Brand Name :
Formike
Controller :
ST7066U or AIP31066
Supply Ability :
5000000000 pieces/year
Packaging Details :
Tray + Inner Box + Carton
Display Type :
COB LCD Display Module
Model Number :
WC2004B0
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Display format :
20character*4 line
Interface :
16 Pin, 4-bit or 8-bit 6800 MPU
Display Mode :
STN
Place of Origin :
China
Payment Terms :
T/T,L/C,Credit card,Cash
Description

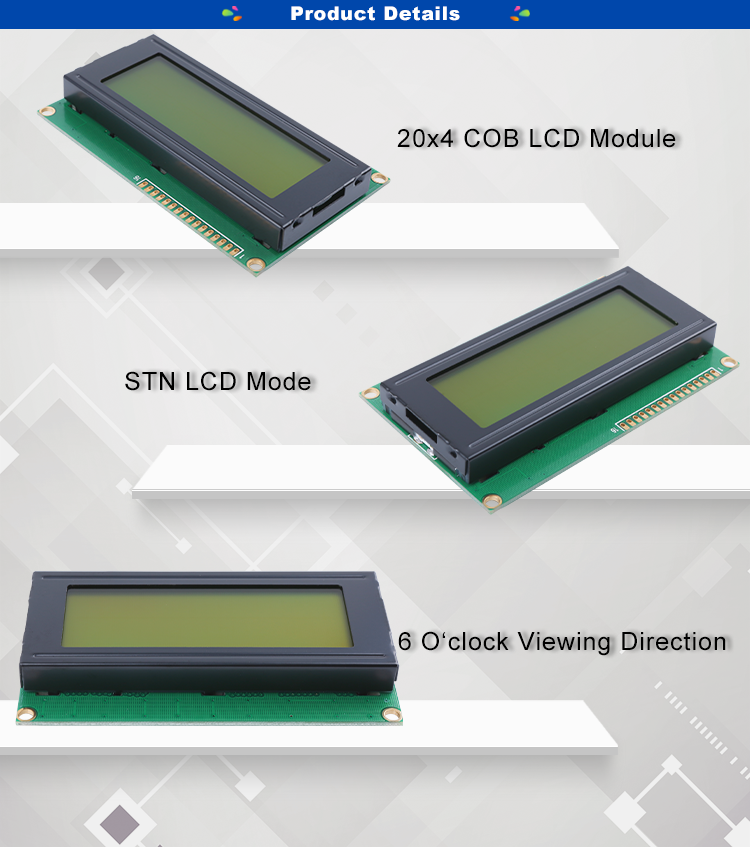

2004a LCD Display 4x20 20x4 LCD Module With COB STN Character Type

ODM HD44780 2004a 20x4 LCD Display Module With COB STN Character Type

Product Specification

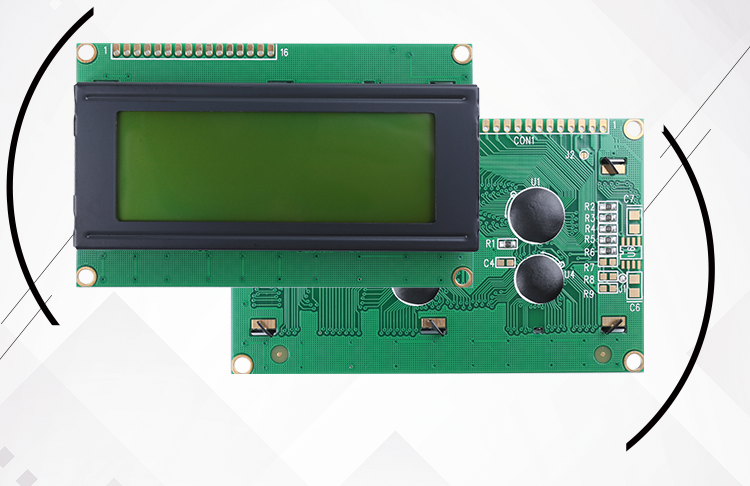

LCD Name 2004a LCD Display 4x20 20x4 LCD Module With COB STN Character Type
Display Format 20character*4 line
Module Size 98.0mm×60.0mm×12.8mm
View Area 76.0mm×26.0mm
Character Size 2.94mm×4.74mm
Character Pitch 2.54mm×5.34mm
IC AIP31066 or Eqv (Defualt English / Japan Font)
Interface 16 Pin, 4-bit or 8-bit 6800 MPU interface enabled
Driving Method 1/16 Duty, 1/5 Bias
Viewing Direction 6 O’clock
Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃

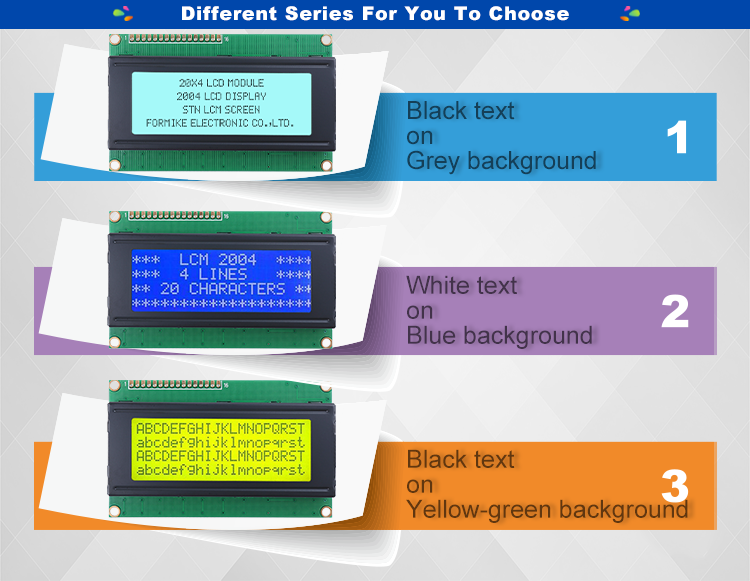

Different series type LCD mode for you to choose
No. Part Number LCD Type Backlight Color Font Color Background Color Voltage
1 WC2004B0SBY6B-A1 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 5V
2 WC2004B0SBY6B-A2 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 3.3V
3 WC2004B0SGW6B-A1 STN Negative Blue White Color White Color Blue Color 5V
4 WC2004B0SGW6B-A2 STN Negative Blue White Color White Color Blue Color 3.3V
5 WC2004B0SKW6B-A1 STN GREY Positive White Color Black Color Grey Color 5V
6 WC2004B0SKW6B-A2 STN GREY Positive White Color Black Color Grey Color 3.3V

ODM HD44780 2004a 20x4 LCD Display Module With COB STN Character Type

ODM HD44780 2004a 20x4 LCD Display Module With COB STN Character Type
