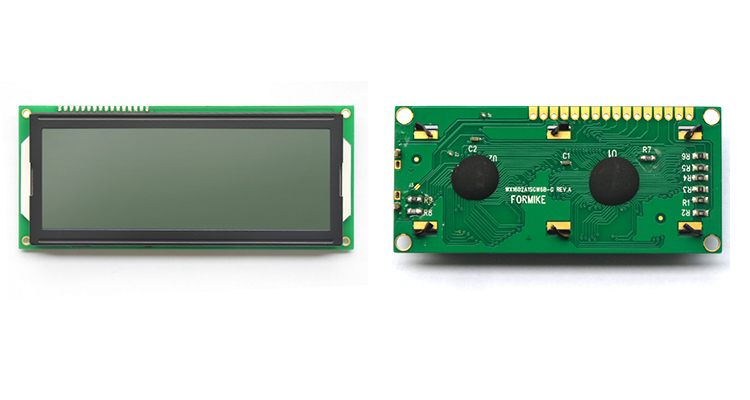

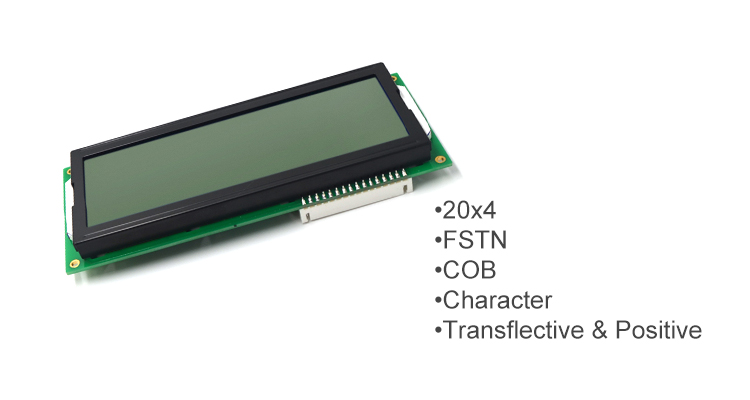

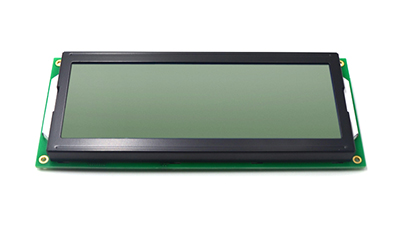

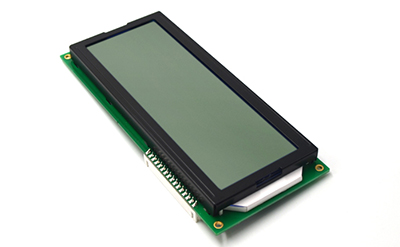

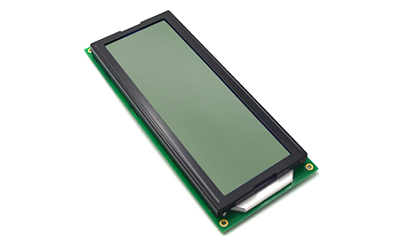

FSTN Positive 2004 4x20 LCD Display COB Screen With SPLC780D Driver IC
FSTN Positive 2004 4x20 LCD Display COB Screen With SPLC780D Driver IC
FSTN Positive 2004 4x20 LCD Display COB Screen With SPLC780D Driver IC
FSTN Positive 2004 4x20 LCD Display COB Screen With SPLC780D Driver IC
FSTN Positive 2004 4x20 LCD Display COB Screen With SPLC780D Driver IC
FSTN Positive 2004 4x20 LCD Display COB Screen With SPLC780D Driver IC
FSTN Positive 2004 4x20 LCD Display COB Screen With SPLC780D Driver IC
FSTN Positive 2004 4x20 LCD Display COB Screen With SPLC780D Driver IC
FSTN Positive 2004 4x20 LCD Display COB Screen With SPLC780D Driver IC
FSTN Positive 2004 4x20 LCD Display COB Screen With SPLC780D Driver IC
FSTN Positive 2004 4x20 LCD Display COB Screen With SPLC780D Driver IC
FSTN Positive 2004 4x20 LCD Display COB Screen With SPLC780D Driver IC
FSTN Positive 2004 4x20 LCD Display COB Screen With SPLC780D Driver IC
FSTN Positive 2004 4x20 LCD Display COB Screen With SPLC780D Driver IC
Specifications
Backlight :
LED
Display format :
20character*4 line
Controller :
SPLC780D
Place of Origin :
China
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Color :
Black display dot on white background with yellow-green backlight
Model Number :
WC2004Y3FSY6B-T
Viewing Angle :
6 O'clock
Operating Temperature :
-20°C to 70°C
Product Name :
FSTN Positive LCD 20x4 2004 LCD Display COB with SPLC780D Driver IC
Brand Name :
Formike
Interface :
16 Pin, 8 bit or 4 bit interface (6805 or Z80)
Display Type :
Character LCD Screen Module
Type :
Transflective Positive
Packaging Details :
Tray + Inner Box + Carton
Operating Voltage :
5V
MOQ :
1 piece
Payment Terms :
T/T,L/C,Credit card,Cash
Supply Ability :
5000000000 pieces/year
Dimensions :
146.0mm * 62.5mm * 14.0mm
Display Mode :
FSTN
Description

FSTN Positive LCD 20x4 2004 LCD Display COB with SPLC780D Driver IC

LCD Name FSTN Positive LCD 20x4 2004 LCD Display COB with SPLC780D Driver IC

Display Format

20character*4 line

Display Mode

FSTN, Positive, Transflective

LCD Color

Display dot : Black

Background: White

Drive IC

SPLC780D

Outline Dimension

146.00(W) x62.50(H) x 14.00MAX(T)mm

Viewing Area

123.00MIN(W) x43.00MIN(H)mm

Viewing Direction

6 O’clock

Interface Input Data

4-bit or 8-bit interface(6805 or Z80)

Backlight

Yellow-Green

Driving Method

1/16 Duty, 1/5 Bias

Operating Temp.

 -20℃~+70℃

Storage Temp.

-30℃~+80℃

FSTN Positive 2004 4x20 LCD Display COB Screen With SPLC780D Driver IC

FSTN Positive 2004 4x20 LCD Display COB Screen With SPLC780D Driver IC

FSTN Positive 2004 4x20 LCD Display COB Screen With SPLC780D Driver IC FSTN Positive 2004 4x20 LCD Display COB Screen With SPLC780D Driver IC
FSTN Positive 2004 4x20 LCD Display COB Screen With SPLC780D Driver IC
