Specifications
Color :
White display dot on blue background with white backlight
Operating Voltage :
5V
Supply Ability :
5000000000 pieces/year
Product Name :
20x4 Character LCD Module Negative LCD 2004 Display With ST7066U-0A or UCI7066CB Driver IC
Brand Name :
Formike
Payment Terms :
T/T,L/C,Credit card,Cash
Controller :
ST7066U-0A or UCi7066cB
Place of Origin :
China
Display Type :
COB LCD Module
Model Number :
WC2004Y3SGW7B-T
Backlight :
LED
Dimensions :
146.0mm * 62.5mm * 14.0mm
Display format :
20character*4 line
Packaging Details :
Tray + Inner Box + Carton
MOQ :
1 piece
Display Mode :
STN
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Operating Temperature :
-20°C to 70°C
Interface :
16 Pin, 8 bit or 4 bit interface (6805 or Z80)
Viewing Angle :
6 O'clock
Description

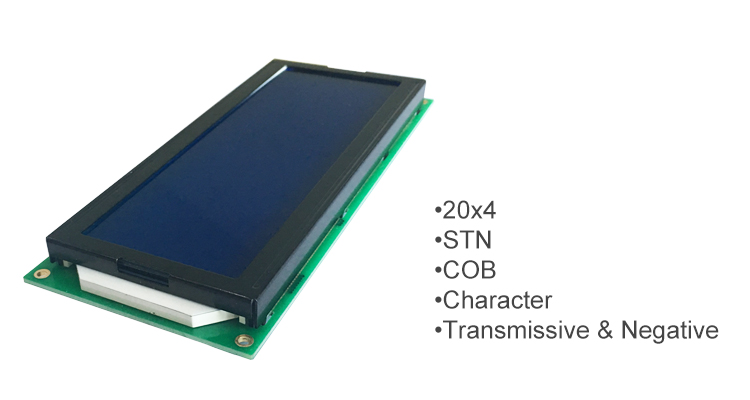

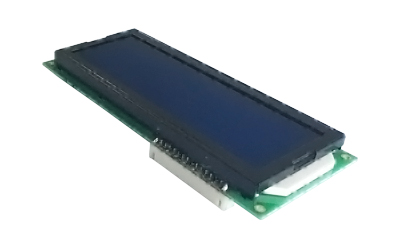

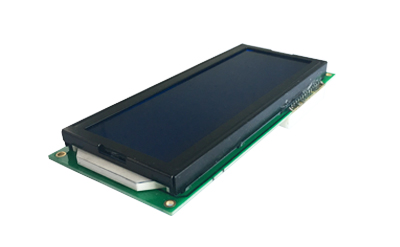

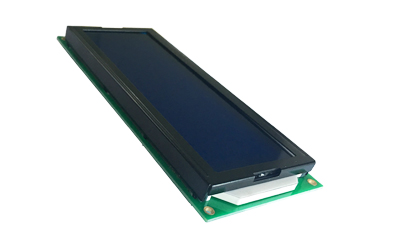

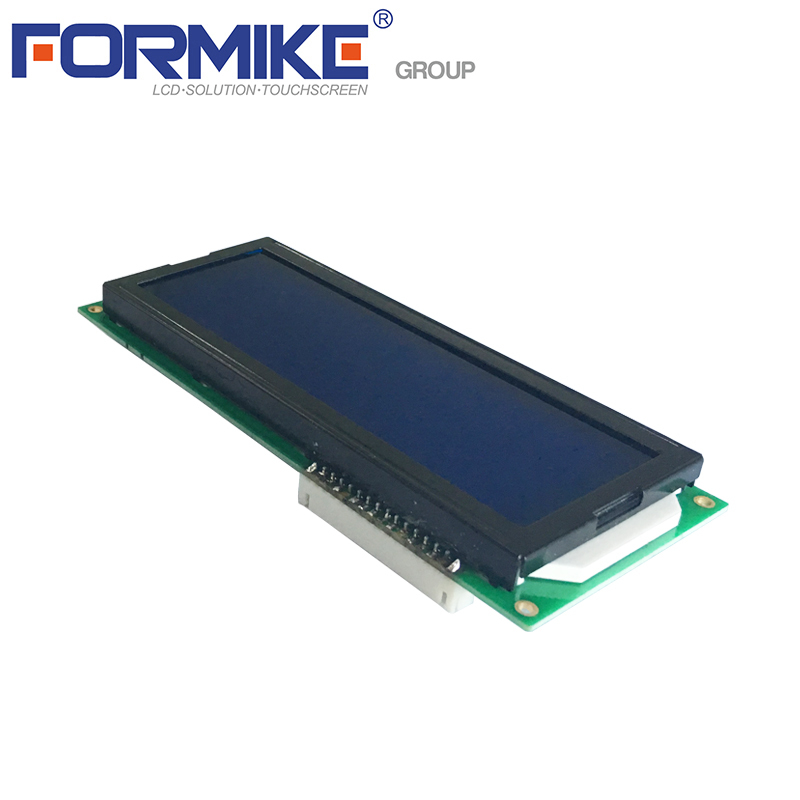

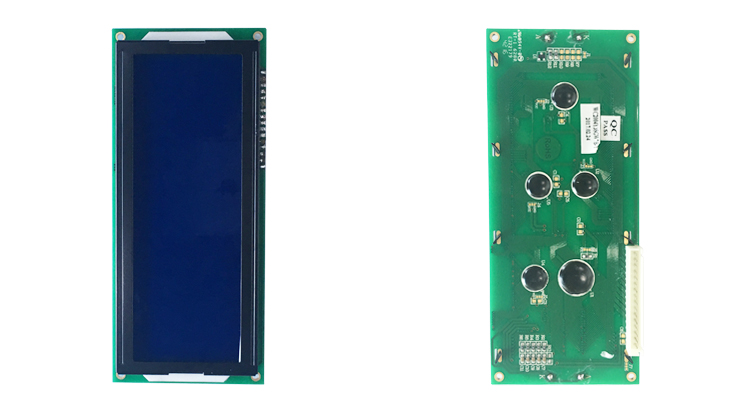

20x4 Character LCD Module Negative LCD 2004 Display With ST7066U-0A or UCI7066CB Driver IC

LCD Name 20x4 Character LCD Module Negative LCD 2004 Display With ST7066U-0A or UCI7066CB Driver IC

Display Format

20character*4 line

Display Mode

STN (Blue), Negative ,Transmissive

LCD Color

Display dot : White

Background: Black

Drive IC

ST7066U-0A /
UCi7066cB

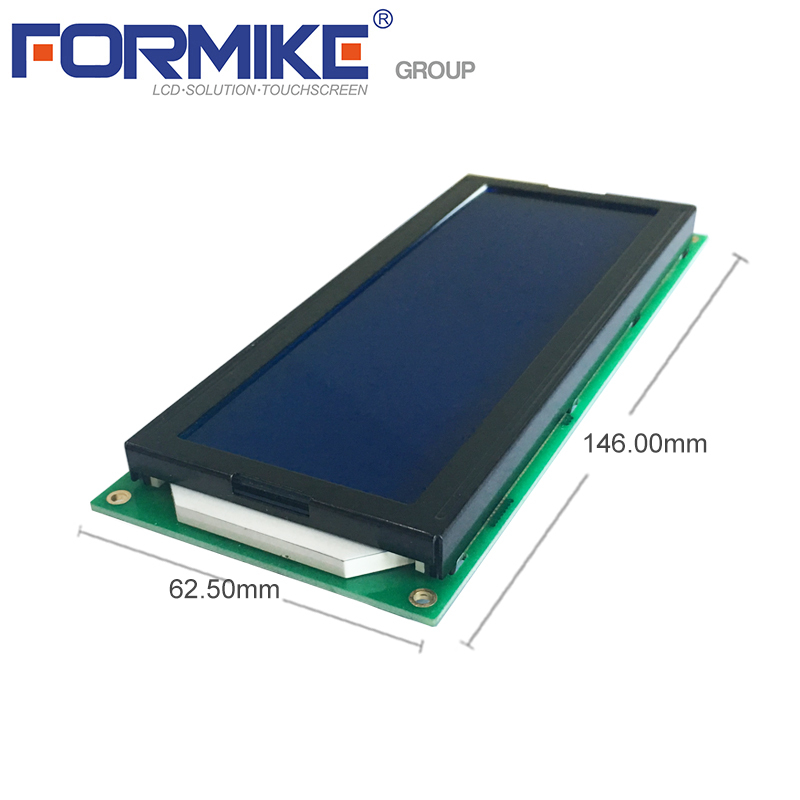

Outline Dimension

146.00(W) x62.50(H) x 14.00MAX(T)mm

Viewing Area

123.00MIN(W) x43.00MIN(H)mm

Viewing Direction

6 O’clock

Interface Input Data

4-bit or 8-bit interface(6805 or Z80)

Backlight

White

Driving Method

1/16 Duty, 1/5 Bias

Operating Temp.

 -20℃~+70℃

Storage Temp.

-30℃~+80℃
