Specifications
Model Number :
WC2004Y4SKW6B-B
Color :
Black display dot on white background with white backlight
Payment Terms :
T/T,L/C,Credit card,Cash
Supply Ability :
5000000000 pieces/year
Dimensions :
79mm * 36mm * 13mm
Operating Temperature :
-20°C to 70°C
Display Type :
Character Screen Module
Controller :
ST7066U-0B
Operating Voltage :
5V
MOQ :
1 piece
Product Name :
4 Line 20 Character LCD Display 2004 LCD Module with ST7066U-0B Driver IC
Display format :
20character*4 line
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Display Mode :
STN
Brand Name :
Formike
Place of Origin :
China
Packaging Details :
Tray + Inner Box + Carton
Backlight :
LED
Viewing Angle :
6 O'clock
Interface :
16 Pin, 4-bit or 8-bit MPU
Description

4 Line 20 Character LCD Display 2004 LCD Module with ST7066U-0B Driver IC Positive4 Line 20 Character 20 * 4 LCD Display 2004 Module With ST7066U-0B Driver IC

LCD Name

4 Line 20 Character LCD Display 2004 LCD Module with ST7066U-0B Driver IC

Display Format

20*4

Display Mode

STN, Transflective, Positive

Outline Dimension

79.0*36.0*13.0 mm

Active Area

56.5*23.6 mm

Viewing Direction

6 O’clock

DUTY/BIAS

1/16, 1/5

Type

COB

Driver IC

ST7066U-0B

Working Temp.

-20℃~+70℃

Storage Temp.

-30℃~+80℃

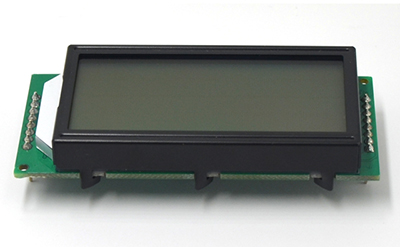

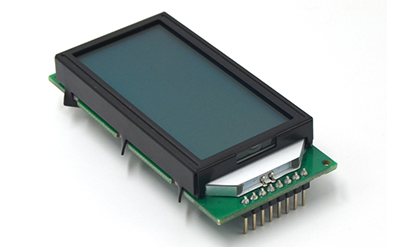

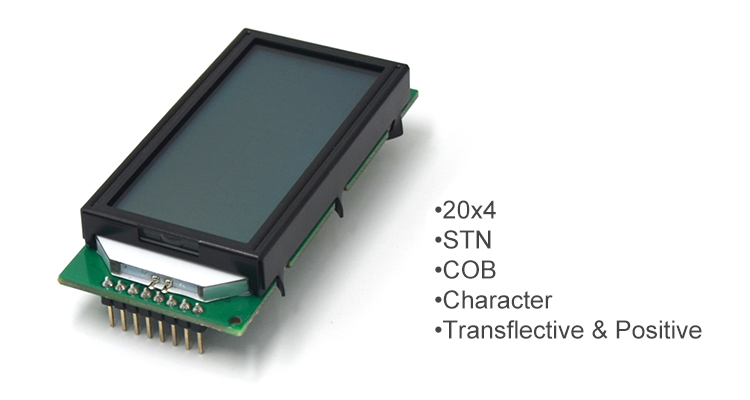

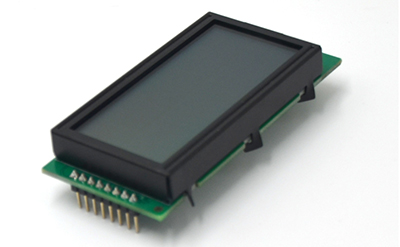

* WC2004Y4SKW6B-B is a Monochrome color COB type STN Positive, Transflective LCD.

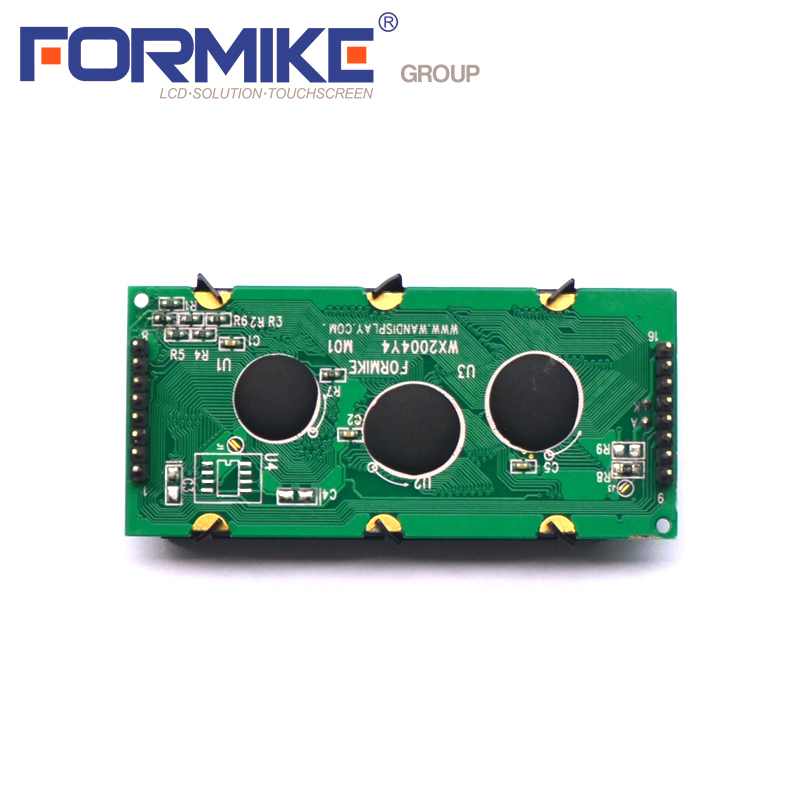

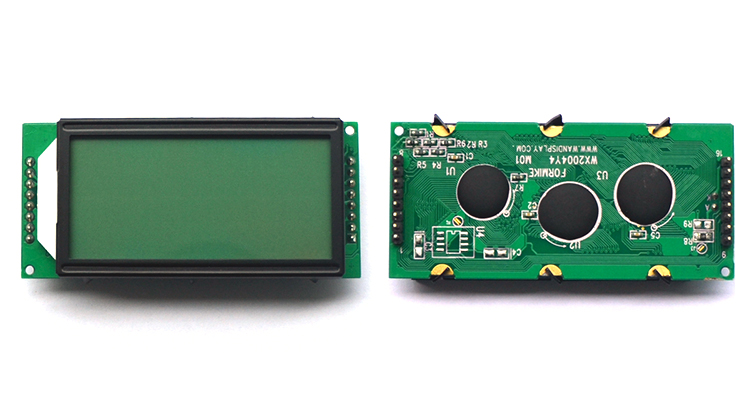

* It is composed of a monochrome LCD panel, driver IC, FPC, and backlight.

*It is 20x4 dots monochrome character STN lcd monitor.

* Backlight with white,blue,yellow,red color

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.
