Specifications
Display Type :
Character LCD Display Module
Backlight :
LED
Dimensions :
98.0mm * 60.0mm * 14.2mm
Model Number :
WC2004A2SKY6B-D
Packaging Details :
Tray + Inner Box + Carton
Color :
Black display dot on white background with yellow-green backlight
Operating Voltage :
5V
Brand Name :
Formike
Payment Terms :
T/T,L/C,Credit card,Cash
Product Name :
4x20 Character LCD Address 20x4 LCD Display with STN COB Transflective Positive Type
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Controller :
ST7066U-0A
Supply Ability :
5000000000 pieces/year
Display Mode :
STN
Operating Temperature :
-20°C to 70°C
Place of Origin :
China
Interface :
16 Pin, 4-bit or 8-bit MPU
Viewing Angle :
6 O'clock
MOQ :
1 piece
Display format :
20character*4 line
Description

4x20 Character LCD Address 20x4 LCD Display with STN COB Transflective Positive Type

LCD Name 4x20 Character LCD Address 20x4 LCD Display with STN COB Transflective Positive Type

Display Format

20character*4 line

Display Mode

STN (gray), Positive ,Transflective

LCD Color

Display dot : Black

Background: White

Active Area

70.4MIN(W) x20.8MIN(H)mm

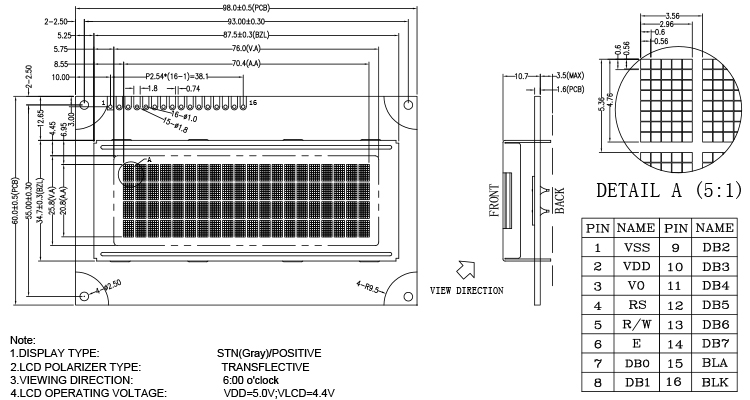

Outline Dimension

98.0(W) x60(H) x 14.2MAX(T)mm

Viewing Area

76MIN(W) x25.8MIN(H)mm

Viewing Direction

6 O’clock

Interface Input Data

4-bit or 8-bit MPU interface enabled

Backlight

Yellow-Green

Driving Method

1/16 Duty, 1/5 Bias

Operating Temp.

 -20℃~+70℃

Storage Temp.

-30℃~+85℃
