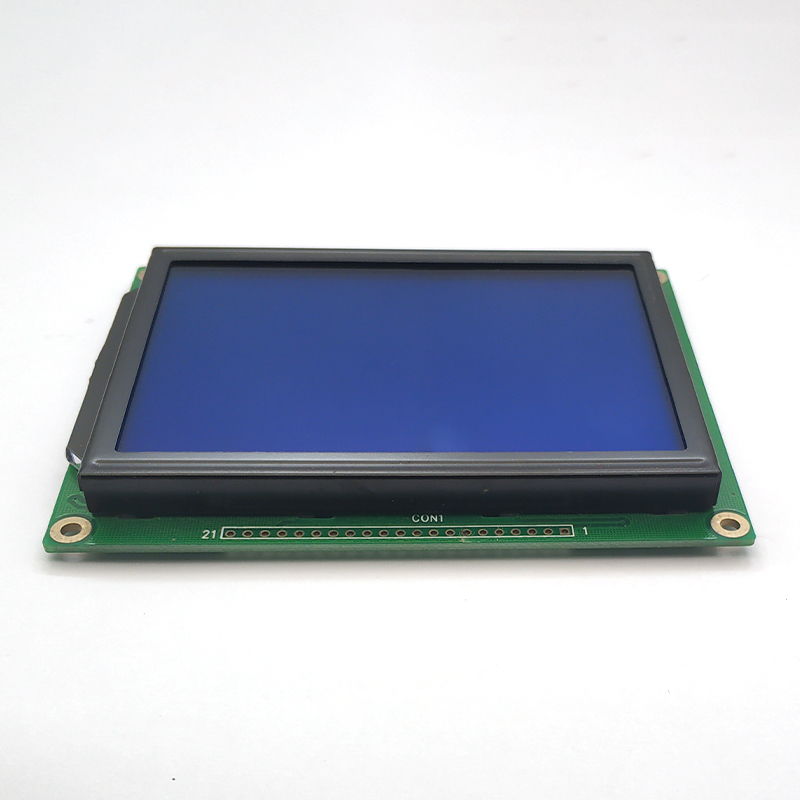

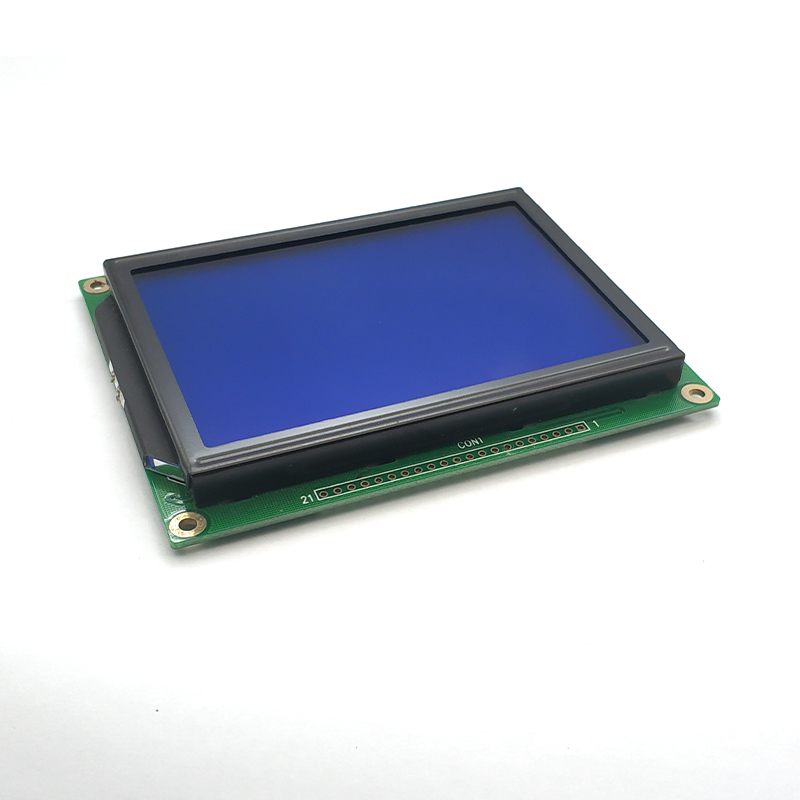

Mono 128x64 12864 LCD display Module ST7920 MPU Interface
Mono 128x64 12864 LCD display Module ST7920 MPU Interface
Mono 128x64 12864 LCD display Module ST7920 MPU Interface
Mono 128x64 12864 LCD display Module ST7920 MPU Interface
Mono 128x64 12864 LCD display Module ST7920 MPU Interface
Mono 128x64 12864 LCD display Module ST7920 MPU Interface
Mono 128x64 12864 LCD display Module ST7920 MPU Interface
Mono 128x64 12864 LCD display Module ST7920 MPU Interface
Mono 128x64 12864 LCD display Module ST7920 MPU Interface
Mono 128x64 12864 LCD display Module ST7920 MPU Interface
Mono 128x64 12864 LCD display Module ST7920 MPU Interface
Mono 128x64 12864 LCD display Module ST7920 MPU Interface
Mono 128x64 12864 LCD display Module ST7920 MPU Interface
Mono 128x64 12864 LCD display Module ST7920 MPU Interface
Specifications
Display Mode :
STN
Model Number :
WG1206B2
Controller :
KS0107 & KS0108
Viewing Angle :
6 O'clock
Payment Terms :
T/T,L/C,Credit card,Cash
Place of Origin :
China
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Display Type :
Graphic Displays
Operating Voltage :
3.3V / 5V
Display Format :
128 x 64 Dots
Packaging Details :
Tray + Inner Box + Carton
Dimensions :
107.0mm * 85.0mm * 12.5mm
Supply Ability :
5000000000 pieces/year
Backlight Color :
Usually Y-G or Blue or Gray
Backlight :
LED
MOQ :
1 piece
Interface :
20 Pin, 8-bit MPU interface
Product Name :
Monochrome LCD Display 128x64 LCD Module With 21 Pin 8-BIT MPU Interface
Brand Name :
Formike
Operating Temperature :
-20°C to 70°C
Description

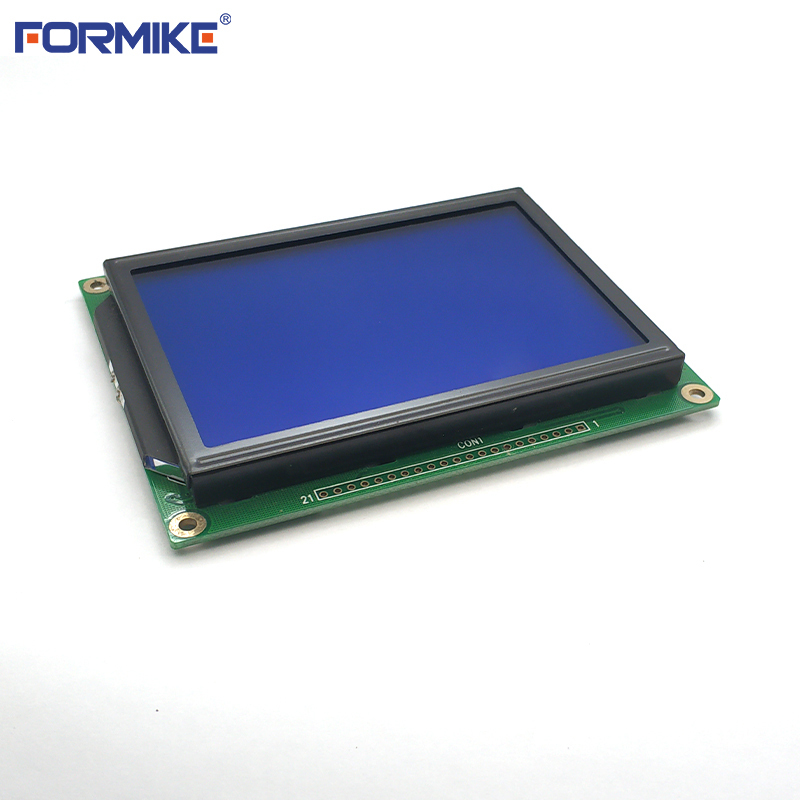

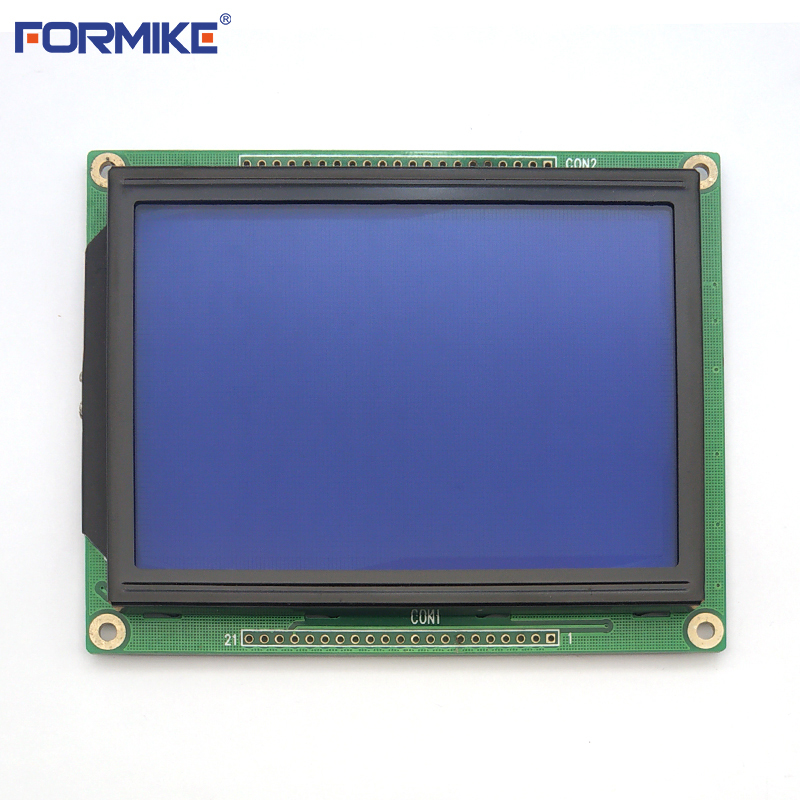

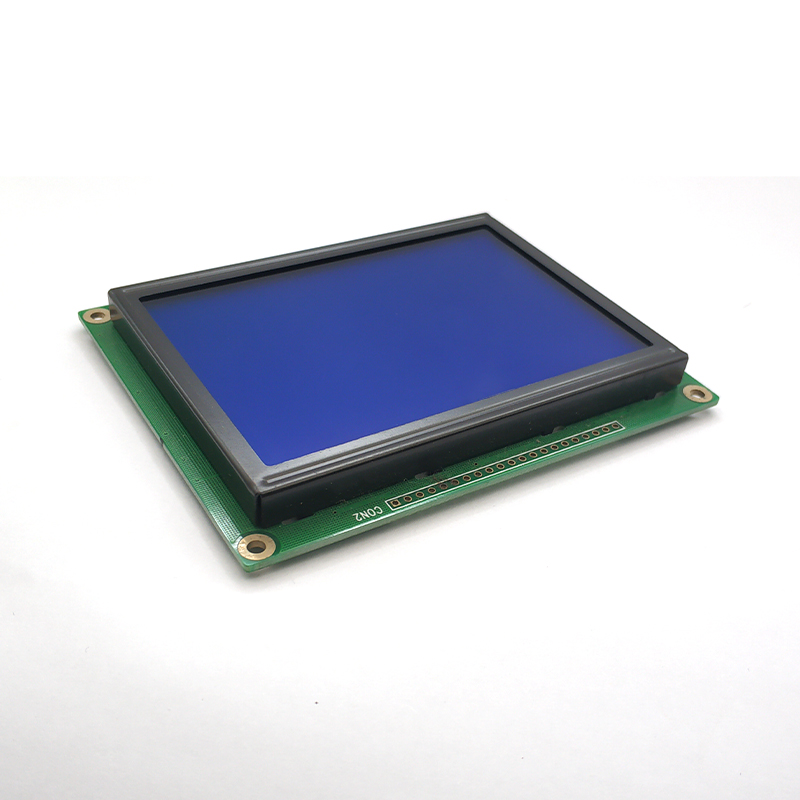

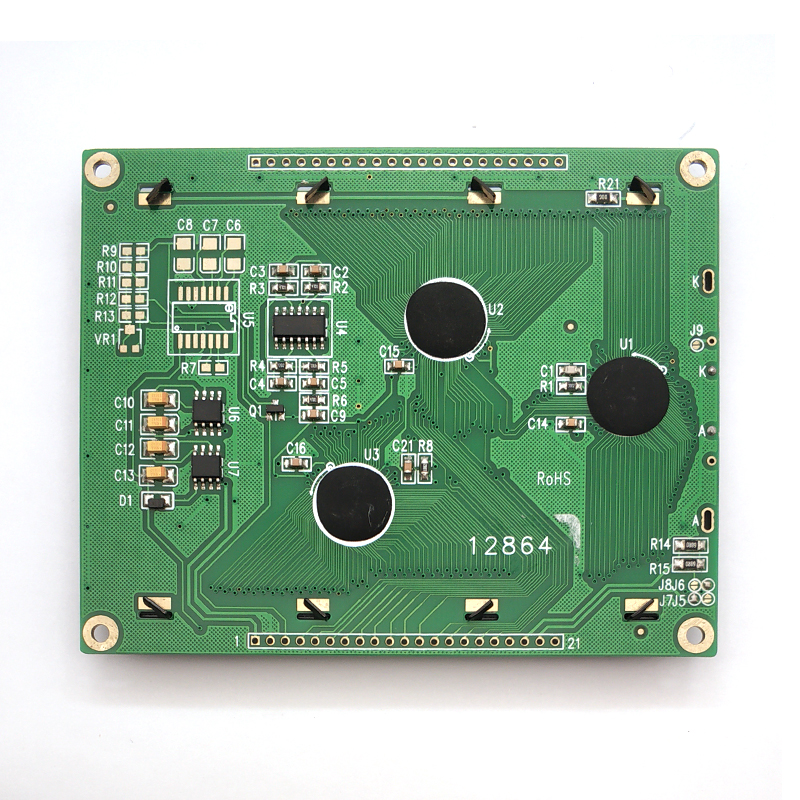

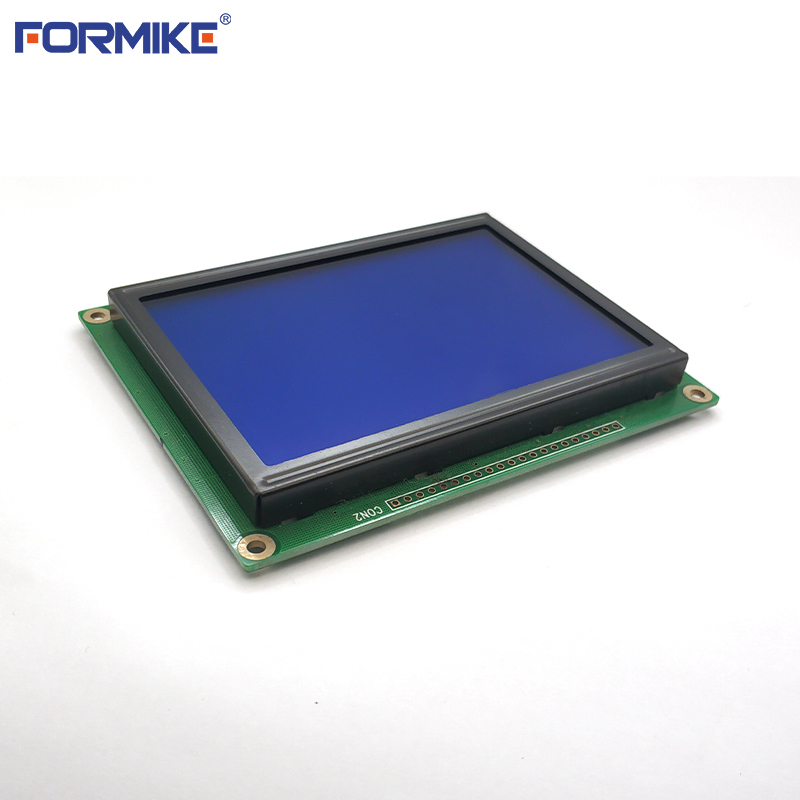

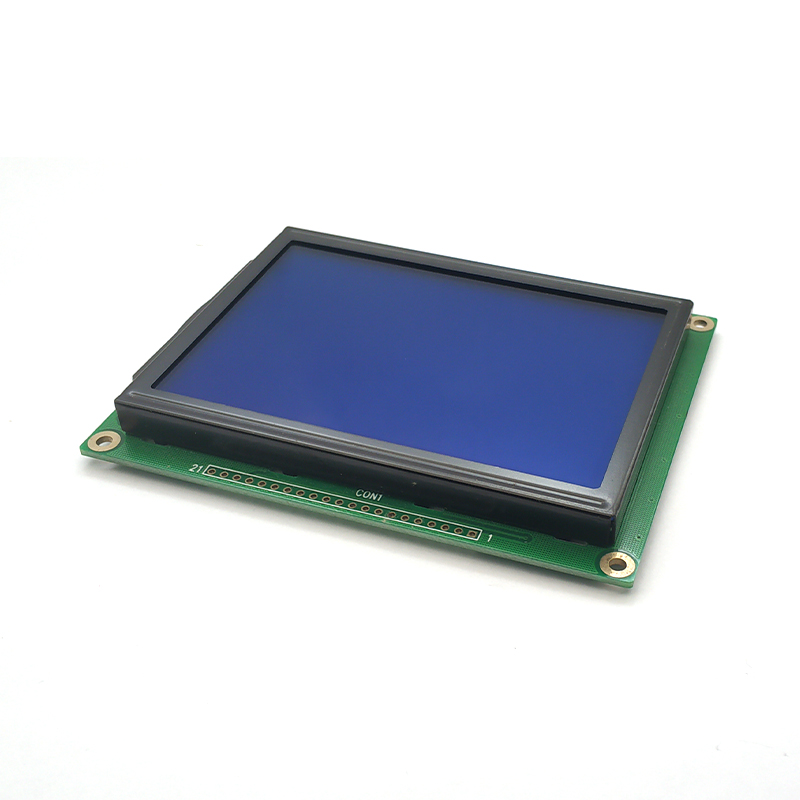

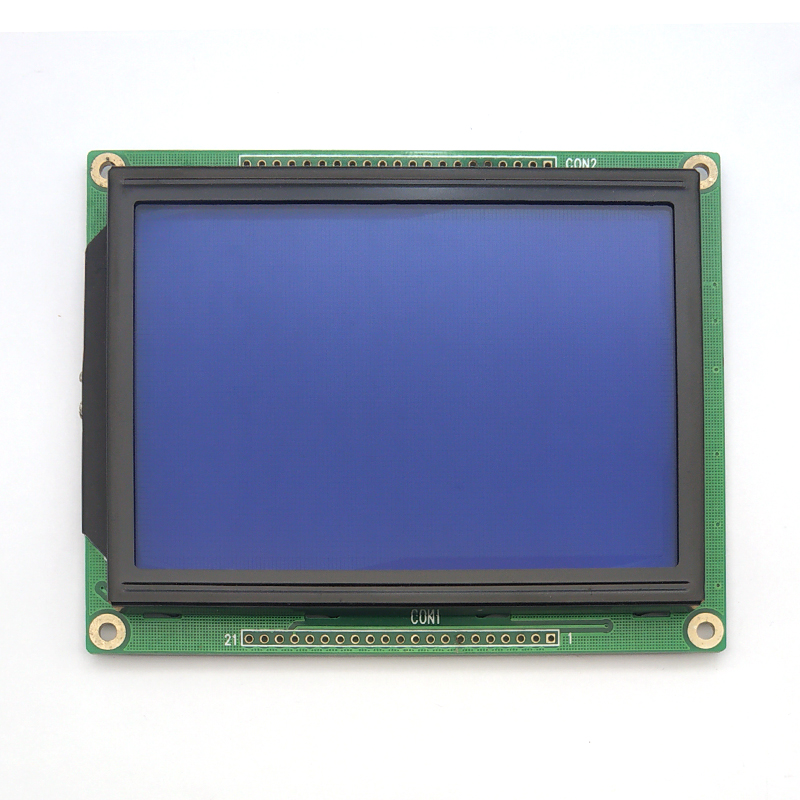

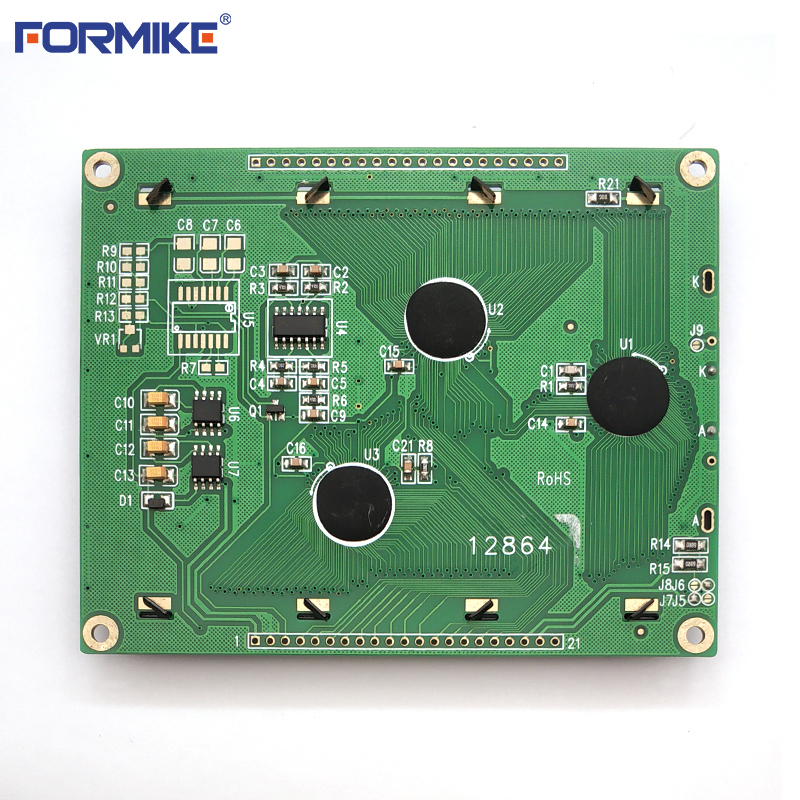

Monochrome LCD Display 128x64 LCD Module With 21 Pin 8-BIT MPU Interface

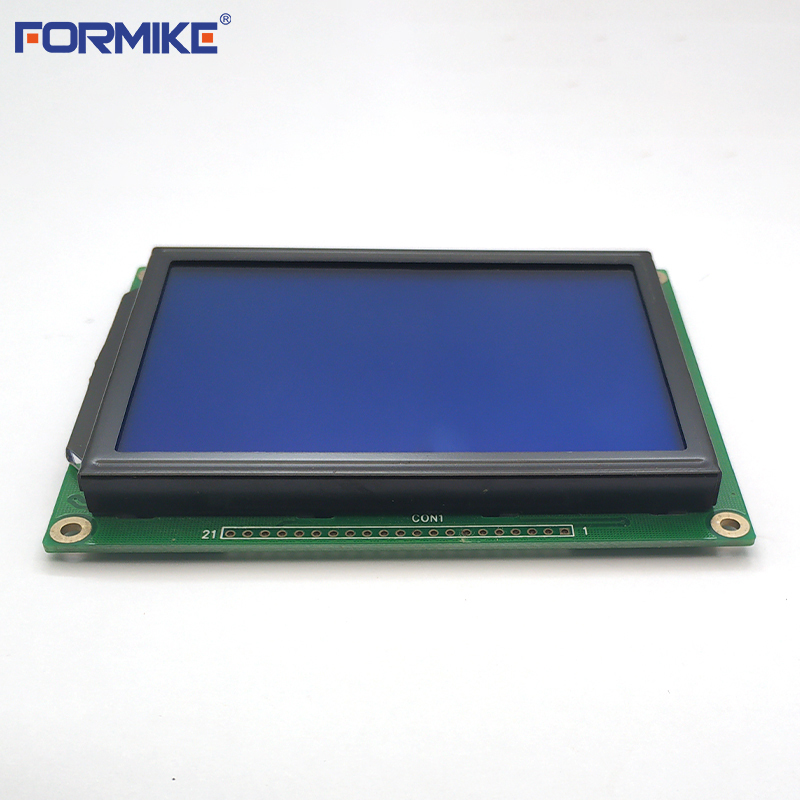

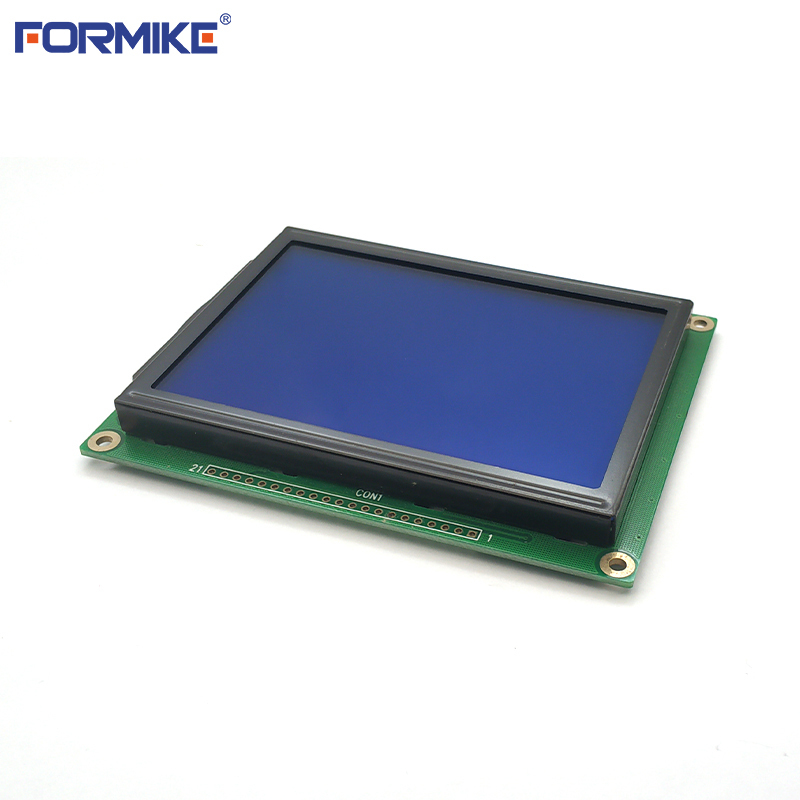

Mono 128x64 12864 LCD display Module ST7920 MPU Interface

Product Specification
LCD Name Monochrome LCD Display 128x64 LCD Module With 21 Pin 8-BIT MPU Interface
Display Format

128*64 Dots
Module Size 107.0mm×85.0mm×12.5mm
View Area 88.0mm×60.0mm
Active Area 83.15mmx54.35mm
Dot Size 0.60mm×0.80mm
Dot Pitch 0.65mm×0.85mm
IC KS0107 &KS0108
Interface 21 Pin, 8-bit MPU interface enabled
Driving Method 1/64 Duty, 1/9 Bias
Viewing Direction 6 O’clock
Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃
Different series type LCD mode for you to choose
No. Part Number LCD Type Backlight Color Font Color Background Color Voltage
1 WG1206B2SBY6B-A1 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 5V
2 WG1206B2SBY6B-A2 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 3.3V
3 WG1206B2SGW6B-A1 STN Negative Blue White Color White Color Blue Color 5V
4 WG1206B2SGW6B-A2 STN Negative Blue White Color White Color Blue Color 3.3V
5 WG1206B2SKW6B-A1 STN GREY Positive White Color Black Color Grey Color 5V
6 WG1206B2SKW6B-A2 STN GREY Positive White Color Black Color Grey Color 3.3V
