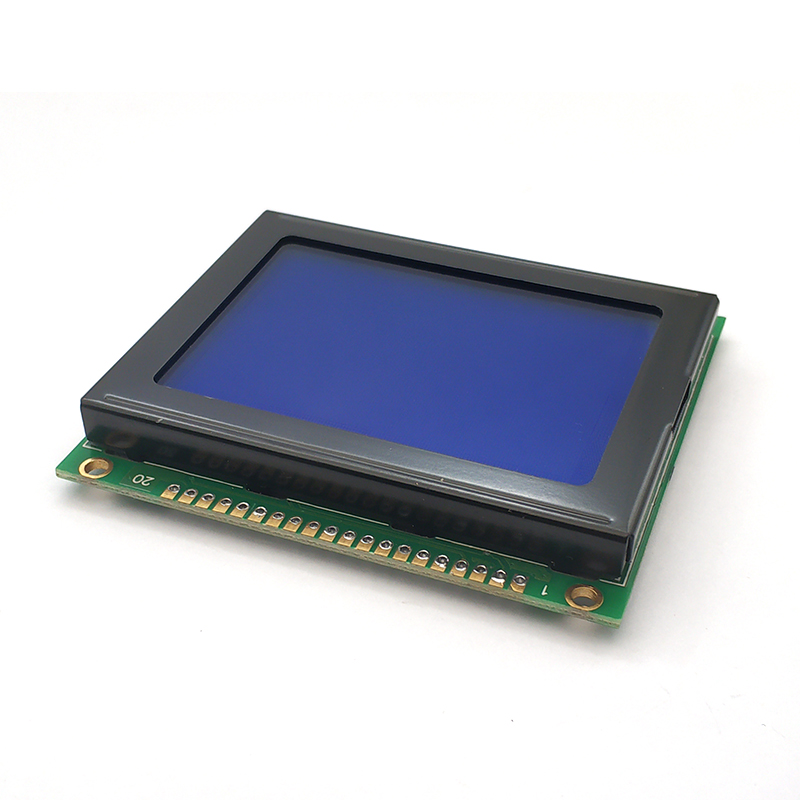

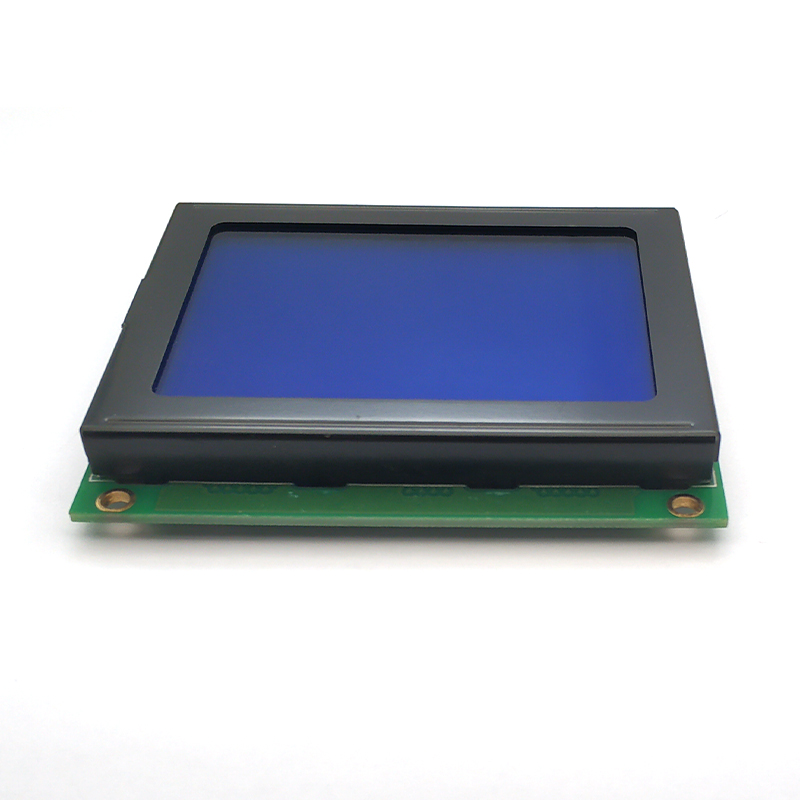

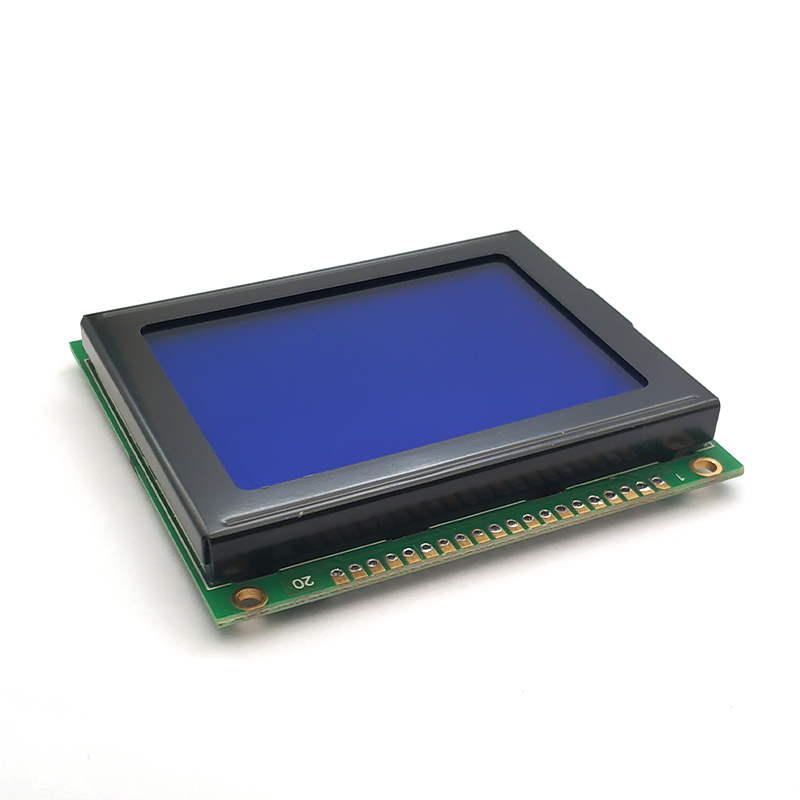

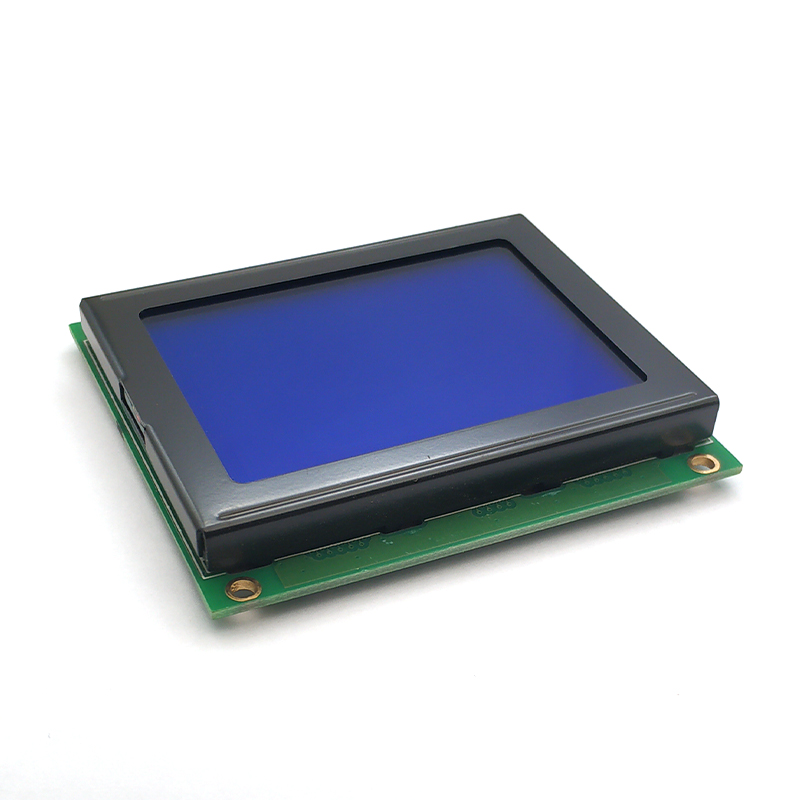

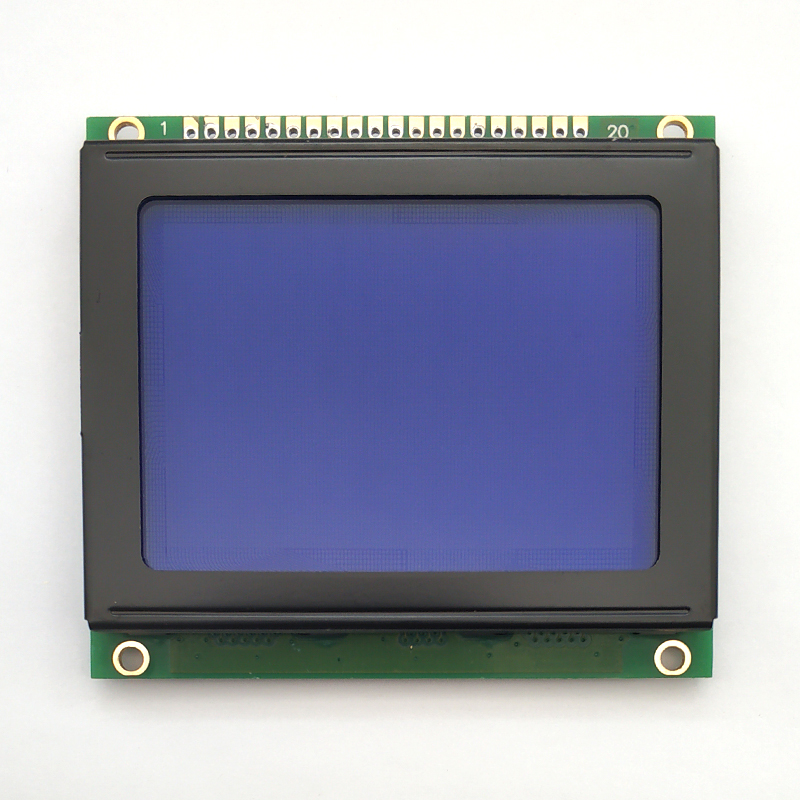

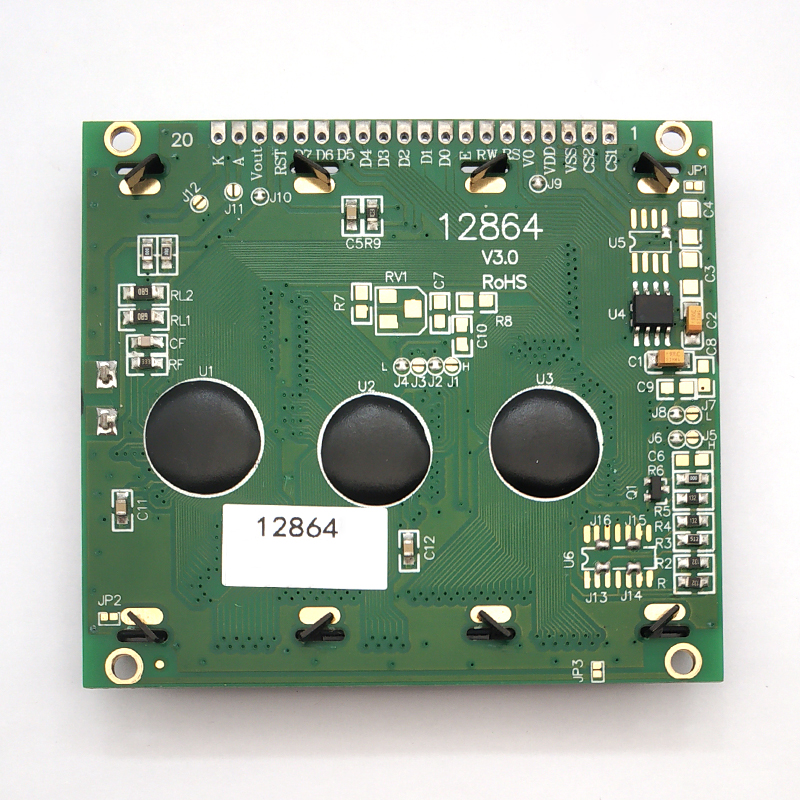

Graphic 128x64 LCD Display COG STN Module KS0107 KS0108 IC Driver
Graphic 128x64 LCD Display COG STN Module KS0107 KS0108 IC Driver
Graphic 128x64 LCD Display COG STN Module KS0107 KS0108 IC Driver
Graphic 128x64 LCD Display COG STN Module KS0107 KS0108 IC Driver
Graphic 128x64 LCD Display COG STN Module KS0107 KS0108 IC Driver
Graphic 128x64 LCD Display COG STN Module KS0107 KS0108 IC Driver
Graphic 128x64 LCD Display COG STN Module KS0107 KS0108 IC Driver
Graphic 128x64 LCD Display COG STN Module KS0107 KS0108 IC Driver
Graphic 128x64 LCD Display COG STN Module KS0107 KS0108 IC Driver
Graphic 128x64 LCD Display COG STN Module KS0107 KS0108 IC Driver
Graphic 128x64 LCD Display COG STN Module KS0107 KS0108 IC Driver
Graphic 128x64 LCD Display COG STN Module KS0107 KS0108 IC Driver
Graphic 128x64 LCD Display COG STN Module KS0107 KS0108 IC Driver
Graphic 128x64 LCD Display COG STN Module KS0107 KS0108 IC Driver
Specifications
Packaging Details :
Tray + Inner Box + Carton
Interface :
20 Pin, 8-bit MPU interface
Backlight Color :
Usually Y-G or Blue or Gray
Viewing Angle :
6 O'clock
Supply Ability :
5000000000 pieces/year
Dimensions :
78.0mm * 70.0mm * 12.5mm
Operating Voltage :
3.3V / 5V
Model Number :
WG1206B5
MOQ :
1 piece
Product Name :
128 X 64 Graphic LCD Display STN 128x64 LCD Module Design
Display Type :
Graphic LCD Screen Modules
Controller :
KS0107 & KS0108
Place of Origin :
China
Backlight :
LED
Display Format :
128*64 Dots
Operating Temperature :
-20°C to 70°C
Brand Name :
Formike
Payment Terms :
T/T,L/C,Credit card,Cash
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Display Mode :
STN
Description

128 X 64 Graphic LCD Display STN 128x64 LCD Module Design

Graphic 128x64 LCD Display COG STN Module KS0107 KS0108 IC Driver

Product Specification
LCD Name 128 X 64 Graphic LCD Display STN 128x64 LCD Module Design
Display Format

128*64 Dots
Module Size 78.0mm×70.0mm×12.5mm
View Area 62.0mm×44.0mm
Active Area 56.27mmx38.35mm
Dot Size 0.39mm×0.55mm
Dot Pitch 0.44mm×0.60mm
IC KS0107 &KS0108
Interface 20 Pin, 8-bit MPU interface enabled
Driving Method 1/64 Duty, 1/9 Bias
Viewing Direction 6 O’clock
Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃
Different series type LCD mode for you to choose
No. Part Number LCD Type Backlight Color Font Color Background Color Voltage
1 WG1206B5SBY6B-A1 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 5V
2 WG1206B5SBY6B-A2 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 3.3V
3 WG1206B5SGW6B-A1 STN Negative Blue White Color White Color Blue Color 5V
4 WG1206B5SGW6B-A2 STN Negative Blue White Color White Color Blue Color 3.3V
5 WG1206B5SKW6B-A1 STN GREY Positive White Color Black Color Grey Color 5V
6 WG1206B5SKW6B-A2 STN GREY Positive White Color Black Color Grey Color 3.3V
