Specifications
Dimensions :
54.0mm * 50.0mm * 8.0mm
Interface :
20Pin, 8-bit MPU interface
Product Name :
128 X 64 LCD Display 64x128 Graphic LCD 12864 Screen Module With KS0107 KS0108 IC
Display Format :
128 * 64 Dots
Place of Origin :
China
Display Type :
Graphic Display Modules
Backlight Color :
Usually Y-G or Blue or Gray
Viewing Angle :
6 O'clock
Brand Name :
Formike
Supply Ability :
5000000000 pieces/year
Display Mode :
STN
Model Number :
WG1206B3
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Backlight :
LED
Controller :
KS0107 & KS0108
Operating Temperature :
-20°C to 70°C
MOQ :
1 piece
Operating Voltage :
3.3V / 5V
Payment Terms :
T/T,L/C,Credit card,Cash
Packaging Details :
Tray + Inner Box + Carton
Description

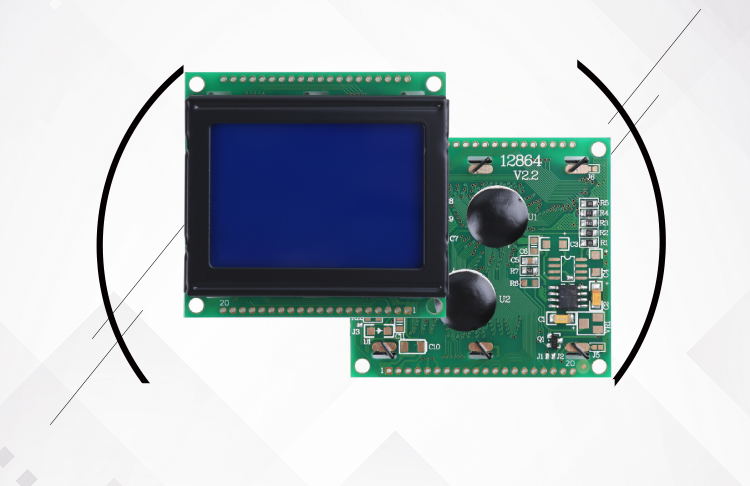

128 X 64 LCD Display 64x128 Graphic LCD 12864 Screen Module With KS0107 KS0108 IC

ODM 128x64 LCD Display Graphic 12864 Glcd Screen Module With KS0107 KS0108 IC

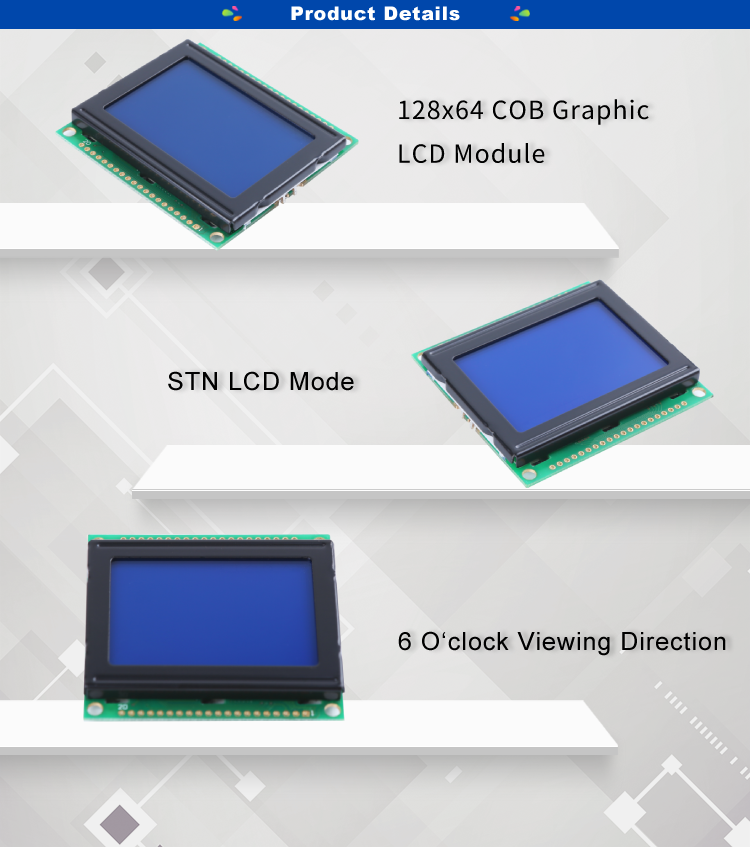

Product Specification
LCD Name 128 X 64 LCD Display 64x128 Graphic LCD 12864 Screen Module With KS0107 KS0108 IC
Display Format

128*64 Dots
Module Size 54.0mm×50.0mm×8.0mm
View Area 43.5mm×29.0mm
Active Area 40.92mmx26.92mm
Dot Size 0.28mm×0.35mm
Dot Pitch 0.32mm×0.39mm
IC KS0107 &KS0108
Interface 20 Pin, 8-bit MPU interface enabled
Driving Method 1/64 Duty, 1/9 Bias
Viewing Direction 6 O’clock
Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃

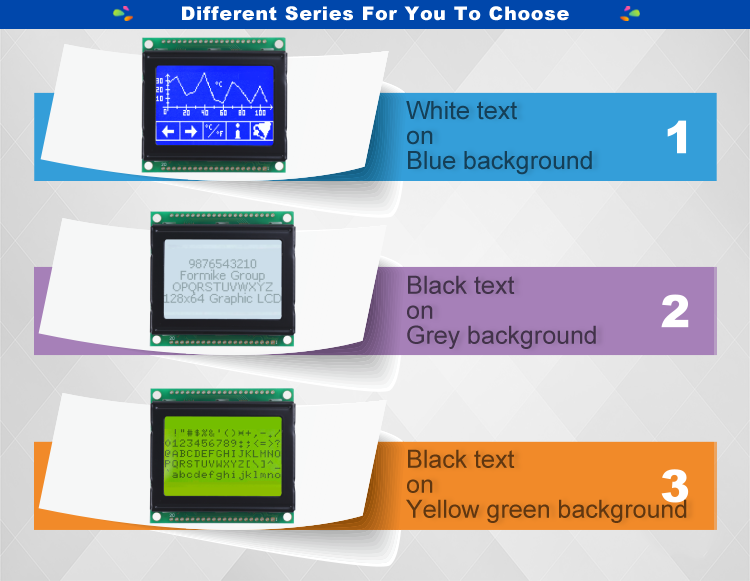

Different series type LCD mode for you to choose
No. Part Number LCD Type Backlight Color Font Color Background Color Voltage
1 WG1206B3SBY6B-A1 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 5V
2 WG1206B3SBY6B-A2 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 3.3V
3 WG1206B3SGW6B-A1 STN Negative Blue White Color White Color Blue Color 5V
4 WG1206B3SGW6B-A2 STN Negative Blue White Color White Color Blue Color 3.3V
5 WG1206B3SKW6B-A1 STN GREY Positive White Color Black Color Grey Color 5V
6 WG1206B3SKW6B-A2 STN GREY Positive White Color Black Color Grey Color 3.3V
