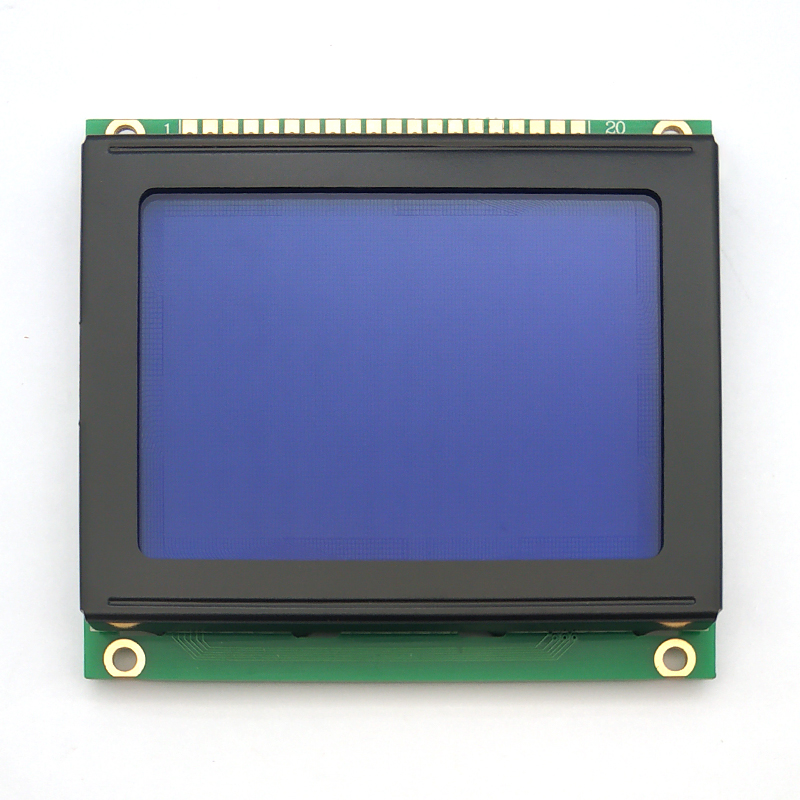

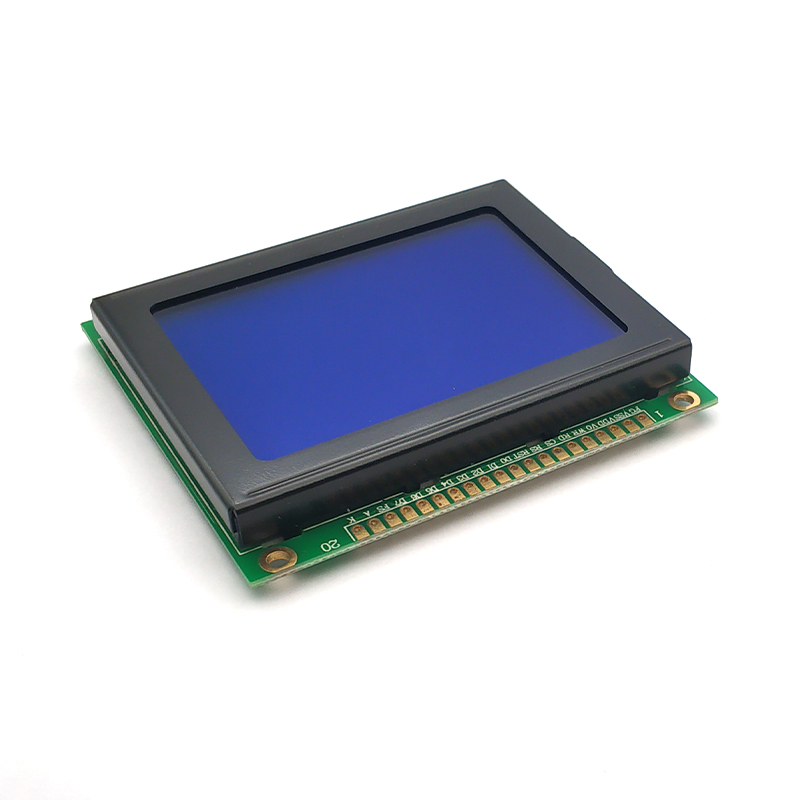

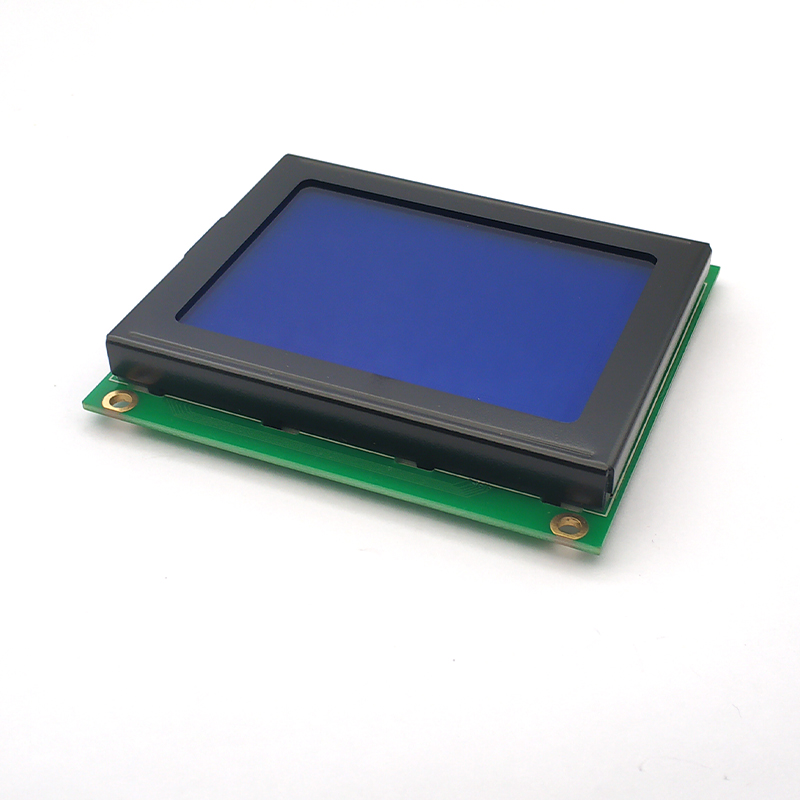

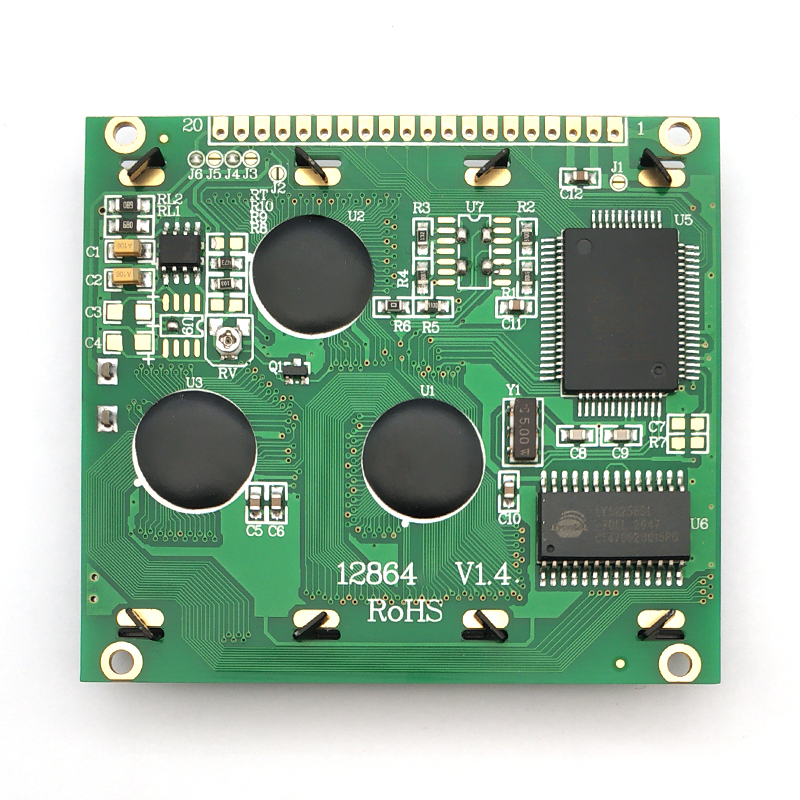

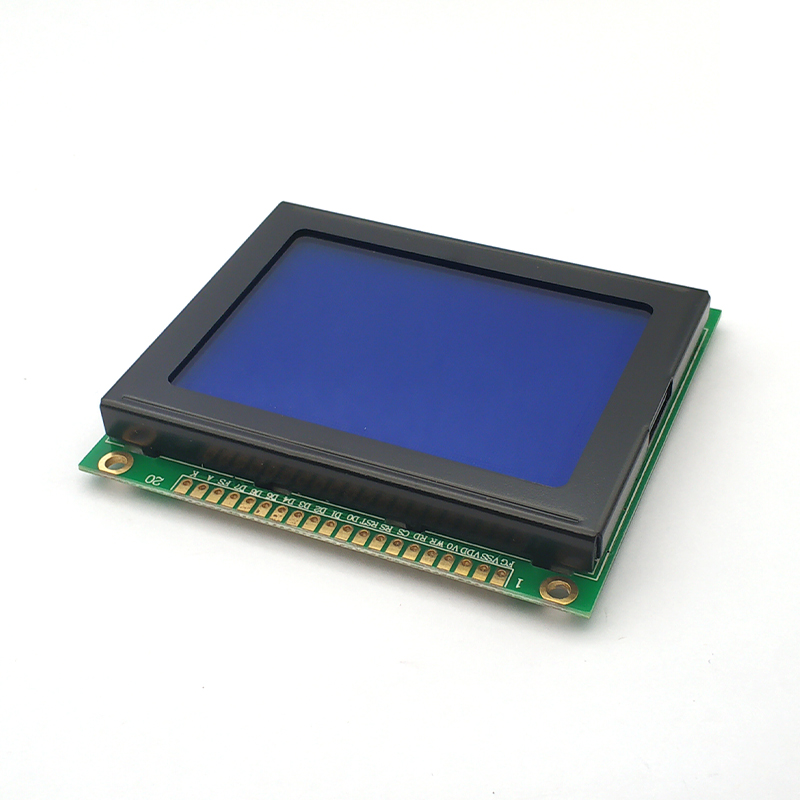

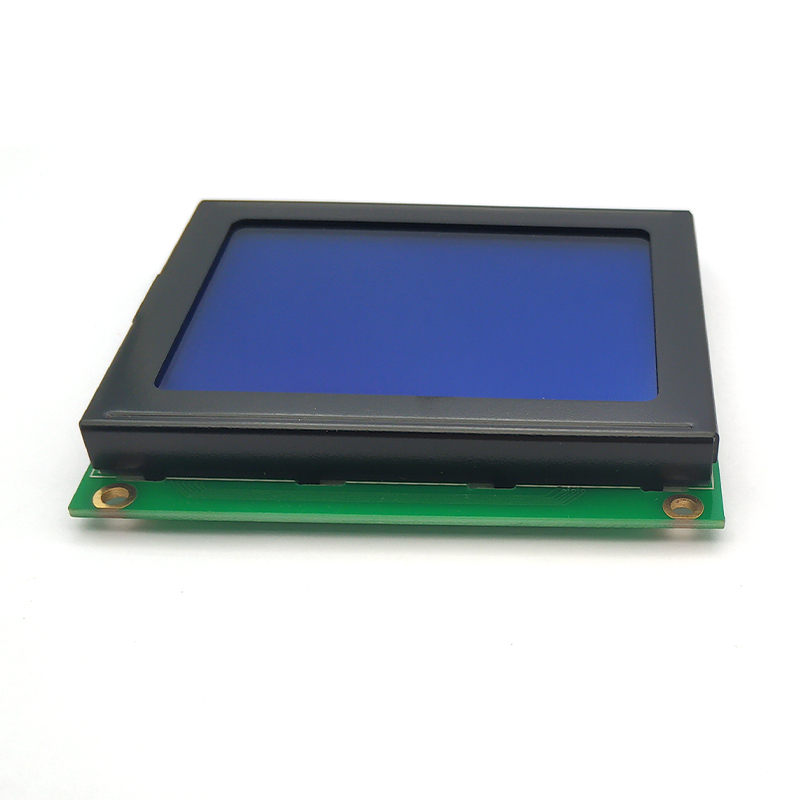

OEM COB 12864 LCD Display 128x64 Monochrome Graphic LCD Module
OEM COB 12864 LCD Display 128x64 Monochrome Graphic LCD Module
OEM COB 12864 LCD Display 128x64 Monochrome Graphic LCD Module
OEM COB 12864 LCD Display 128x64 Monochrome Graphic LCD Module
OEM COB 12864 LCD Display 128x64 Monochrome Graphic LCD Module
OEM COB 12864 LCD Display 128x64 Monochrome Graphic LCD Module
OEM COB 12864 LCD Display 128x64 Monochrome Graphic LCD Module
OEM COB 12864 LCD Display 128x64 Monochrome Graphic LCD Module
OEM COB 12864 LCD Display 128x64 Monochrome Graphic LCD Module
OEM COB 12864 LCD Display 128x64 Monochrome Graphic LCD Module
OEM COB 12864 LCD Display 128x64 Monochrome Graphic LCD Module
OEM COB 12864 LCD Display 128x64 Monochrome Graphic LCD Module
OEM COB 12864 LCD Display 128x64 Monochrome Graphic LCD Module
OEM COB 12864 LCD Display 128x64 Monochrome Graphic LCD Module
Specifications
Display Format :
128x64 Dots
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Interface :
20 Pin, 8-bit 6800/8080 MPU
Operating Voltage :
5V
Place of Origin :
China
Viewing Angle :
6 O'clock
Display Type :
Graphic LCD Display Screen
Model Number :
WG1206B6
MOQ :
1 piece
Product Name :
12864 LCD Display COB 128x64 Monochrome Graphic LCD Module With 8-BIT 6800 8080 MPU Interface
Backlight :
LED
Display Mode :
STN
Backlight Color :
Usually Y-G or Blue or Gray
Payment Terms :
T/T,L/C,Credit card,Cash
Packaging Details :
Tray + Inner Box + Carton
Dimensions :
78.0mm * 70.0mm * 12.5mm
Controller :
T6963C
Supply Ability :
5000000000 pieces/year
Operating Temperature :
-20°C to 70°C
Brand Name :
Formike
Description

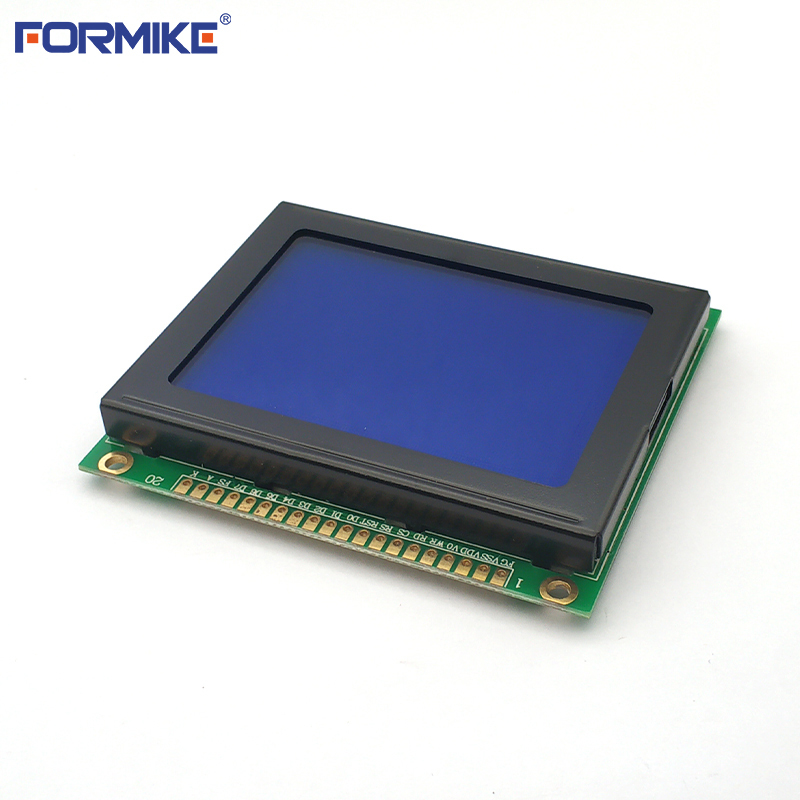

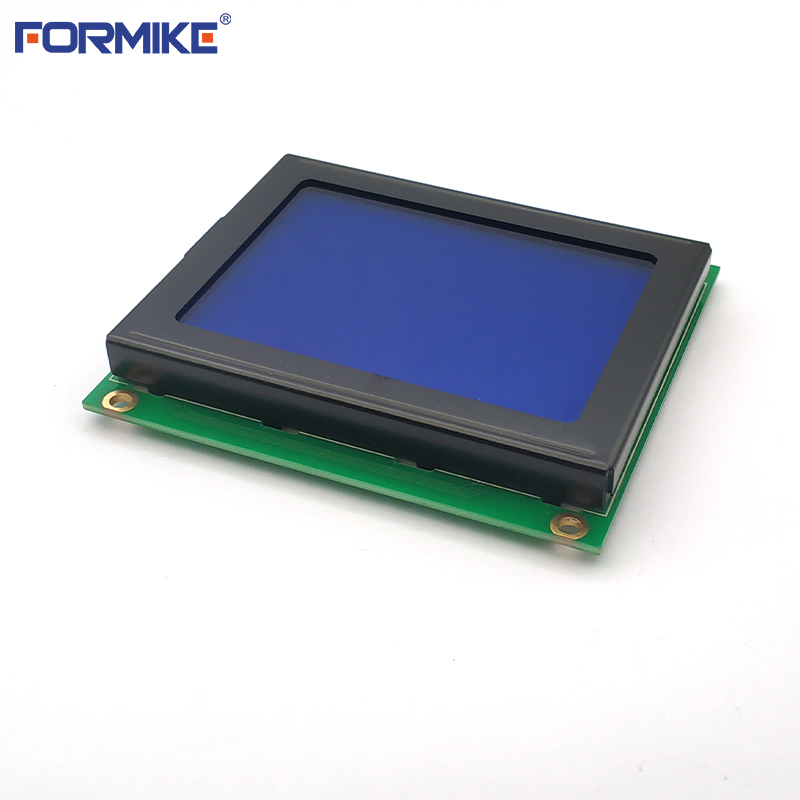

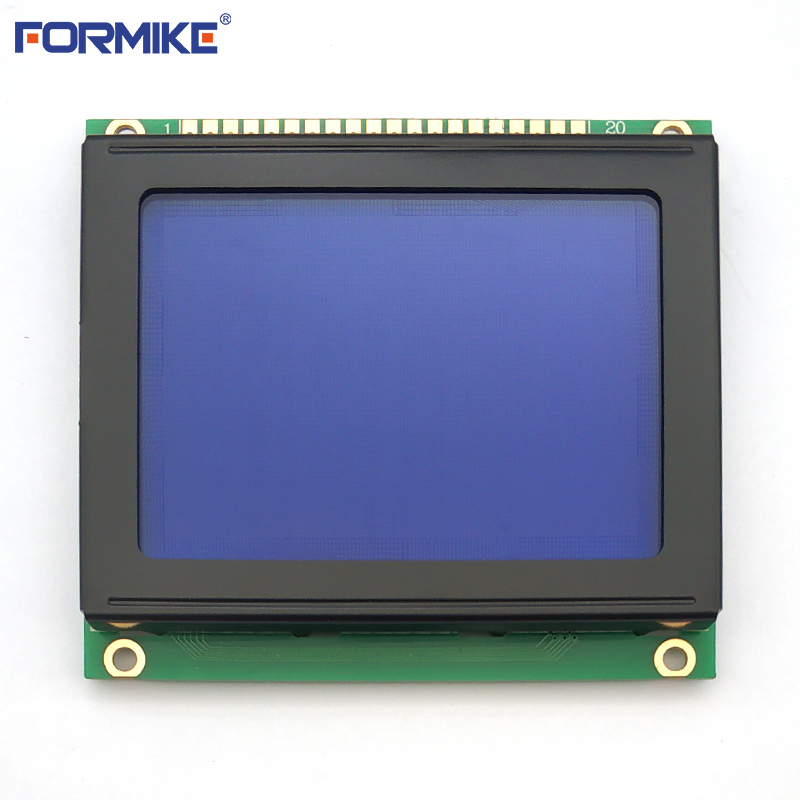

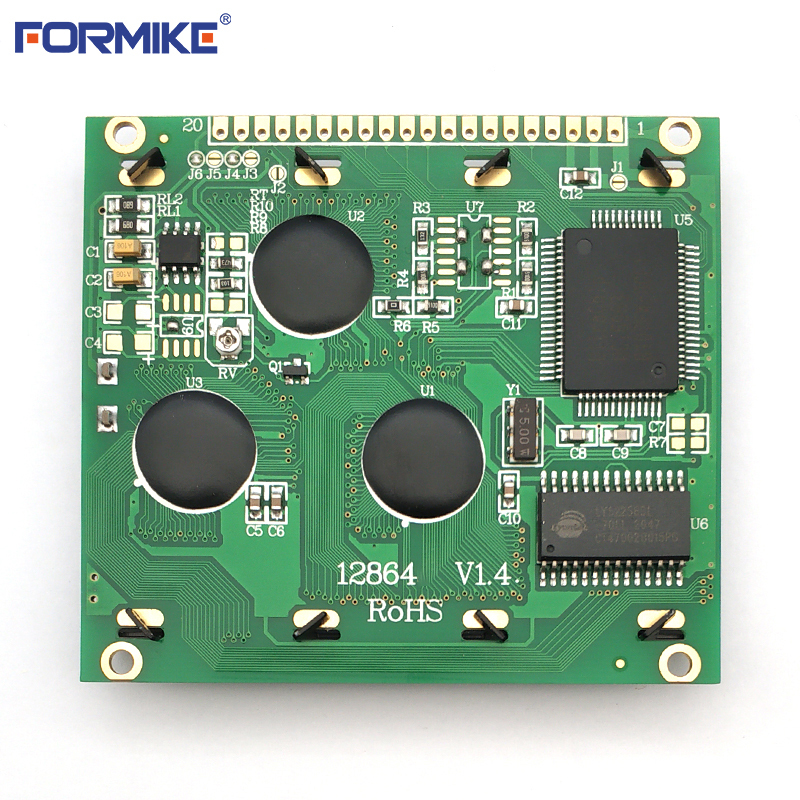

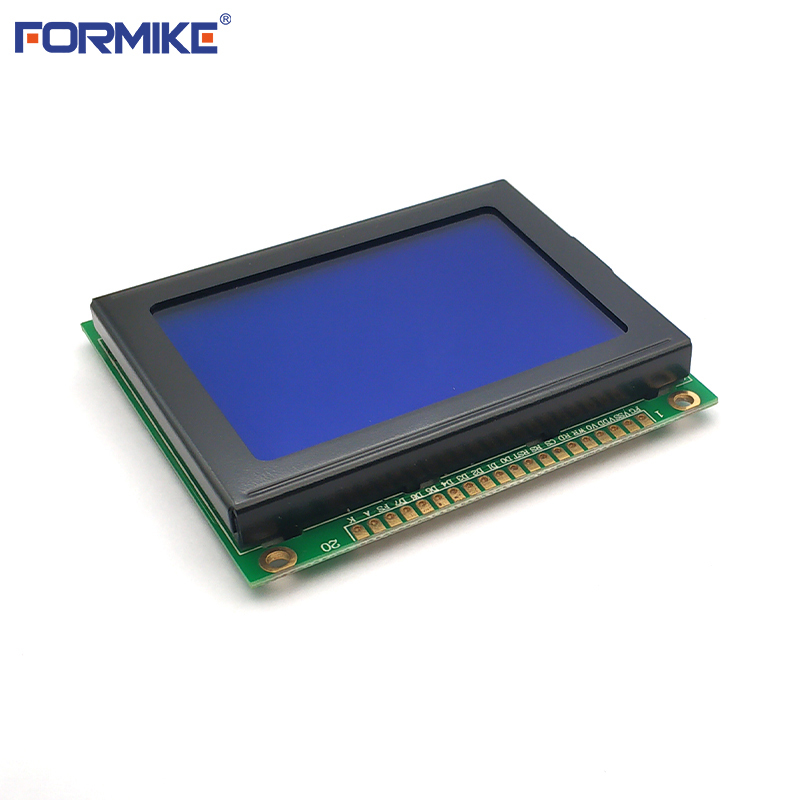

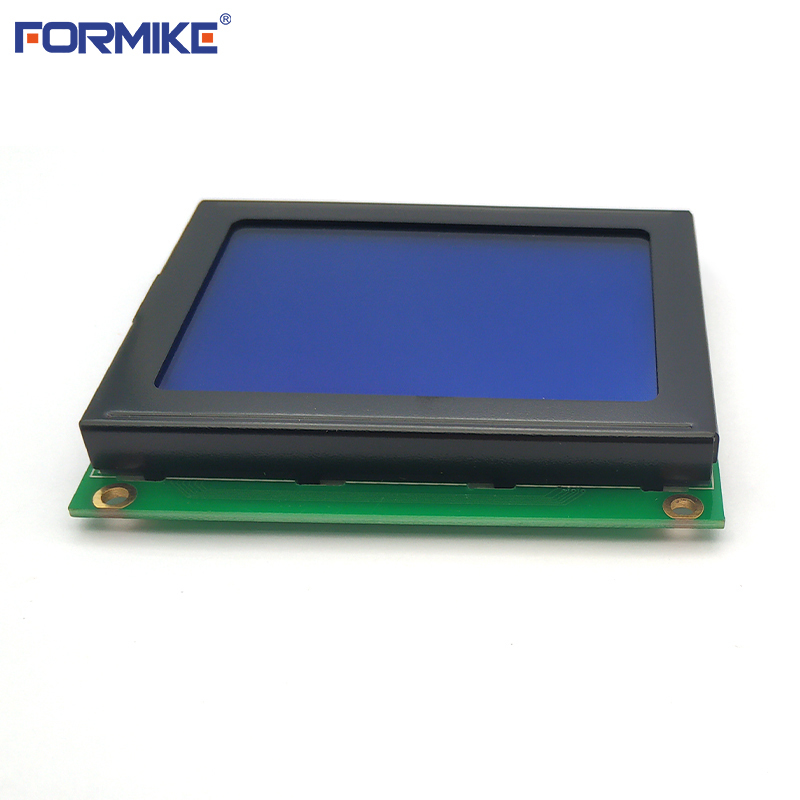

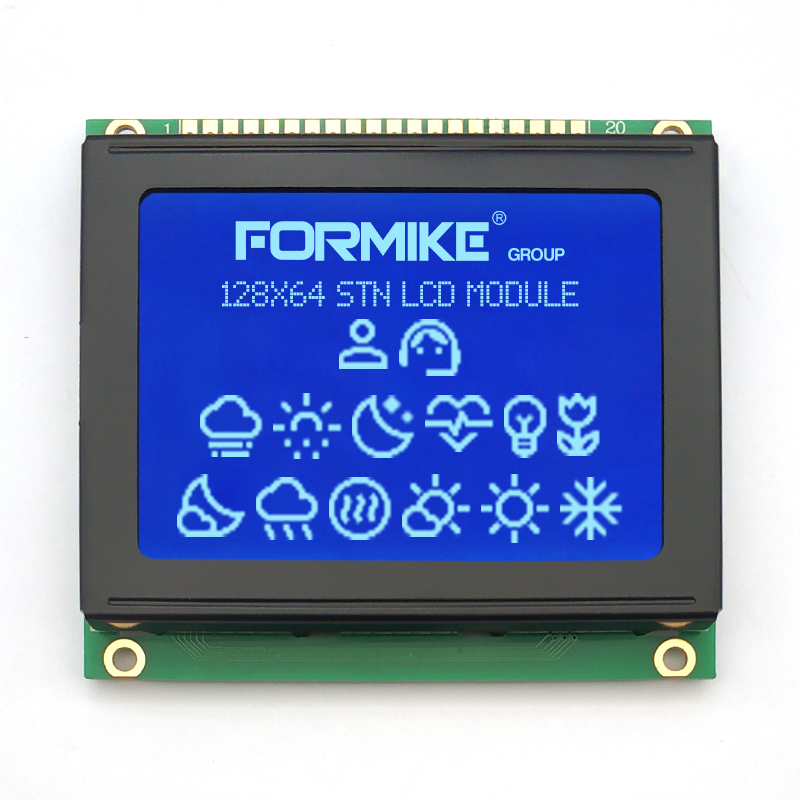

12864 LCD Display COB 128x64 Monochrome Graphic LCD Module With 8-BIT 6800 8080 MPU Interface

OEM COB 12864 LCD Display 128x64 Monochrome Graphic LCD Module

Product Specification
LCD Name 12864 LCD Display COB 128x64 Monochrome Graphic LCD Module With 8-BIT 6800 8080 MPU Interface
Display Format

128*64 Dots
Module Size 78.0mm×70.0mm×12.5mm
View Area 62.0mm×44.0mm
Active Area 56.27mmx38.35mm
Dot Size 0.39mm×0.55mm
Dot Pitch 0.44mm×0.60mm
IC T6963C
Interface 20 Pin, 8-bit 6800 / 8080 MPU interface enabled
Driving Method 1/64 Duty, 1/9 Bias
Viewing Direction 6 O’clock
Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃
Different series type LCD mode for you to choose
No. Part Number LCD Type Backlight Color Font Color Background Color Voltage
1 WG1206B6SBY6B-A1 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 5V
3 WG1206B6SGW6B-A1 STN Negative Blue White Color White Color Blue Color 5V
5 WG1206B6SKW6B-A1 STN GREY Positive White Color Black Color Grey Color 5V
