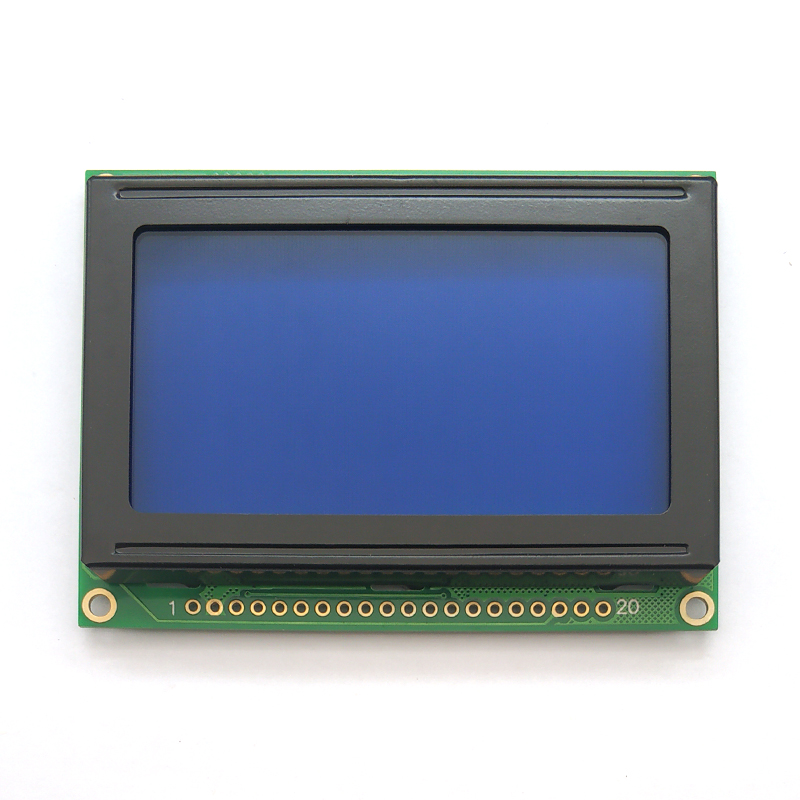

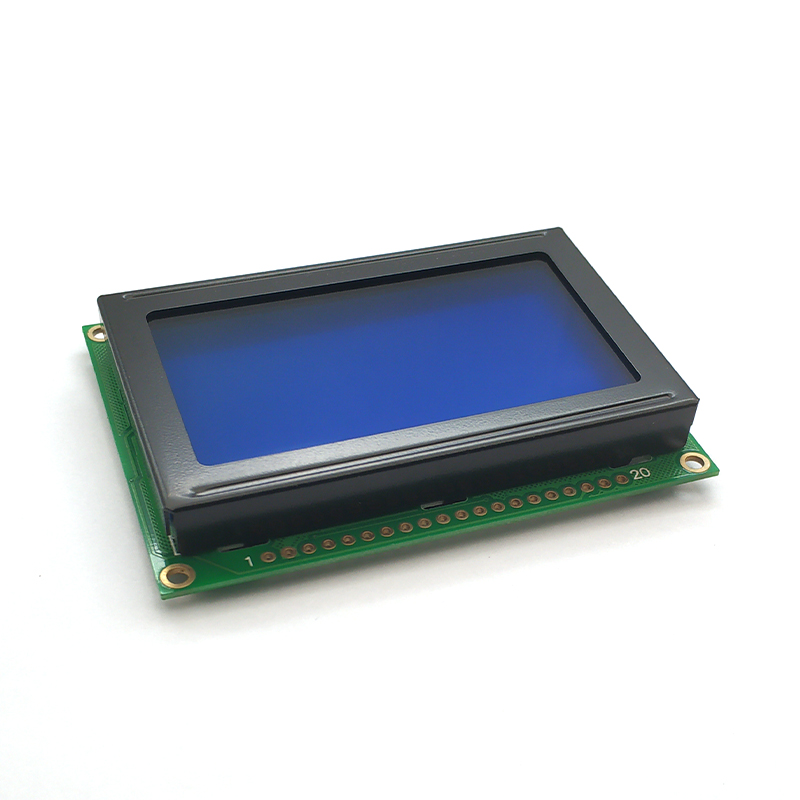

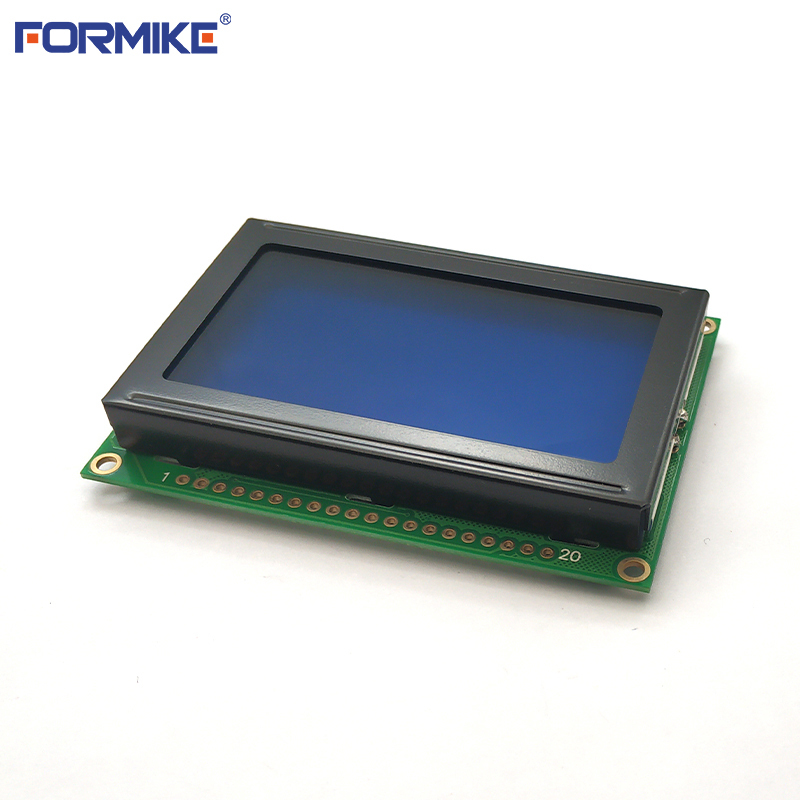

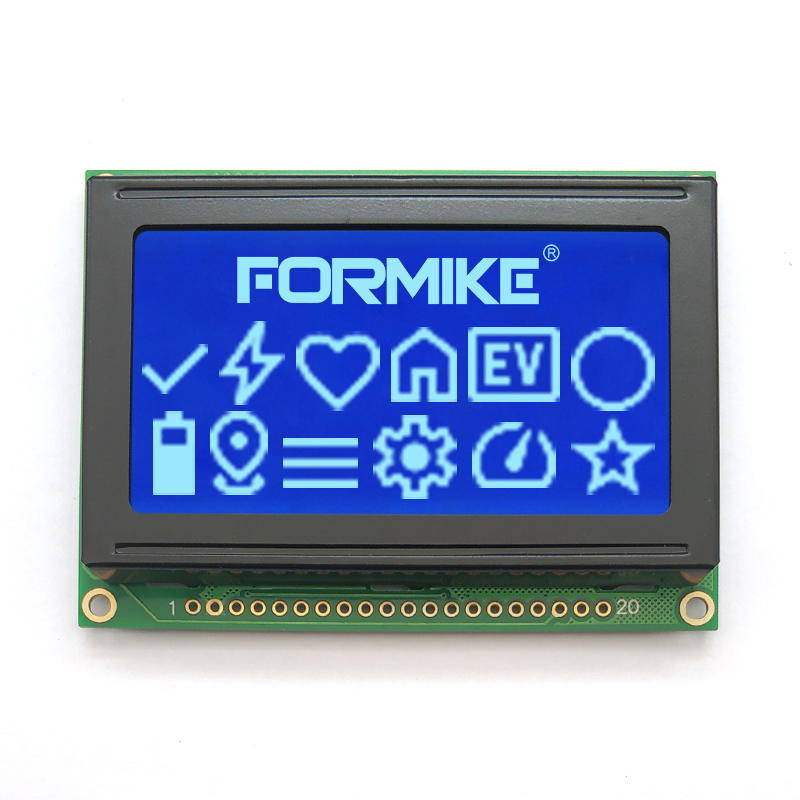

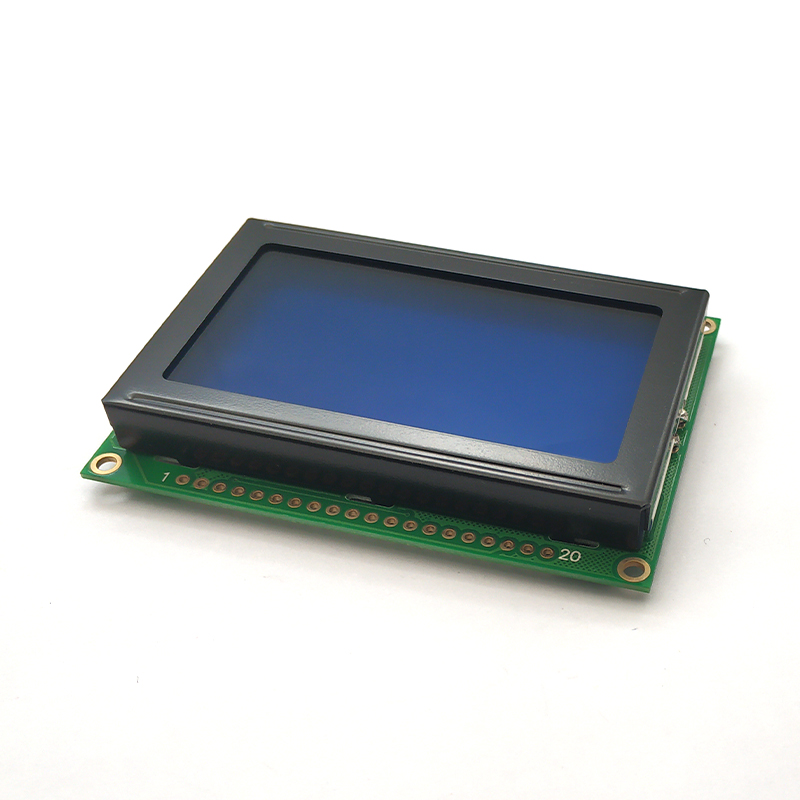

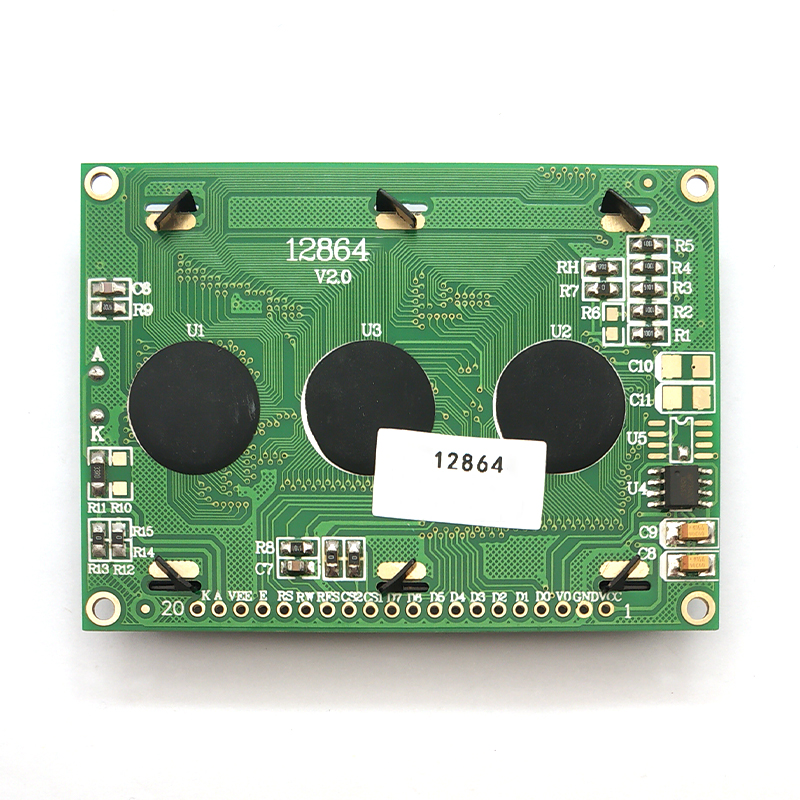

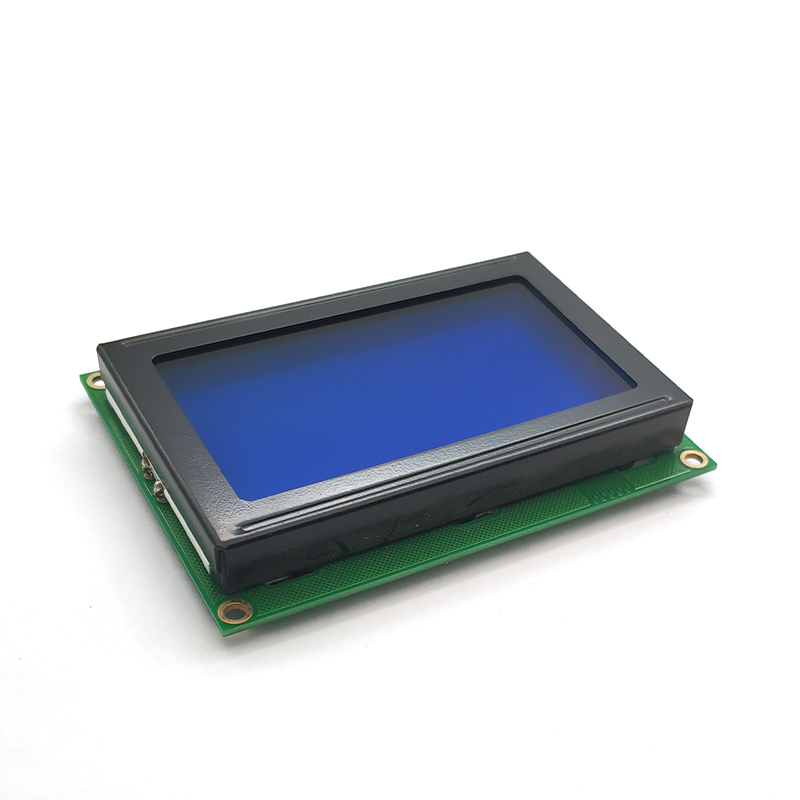

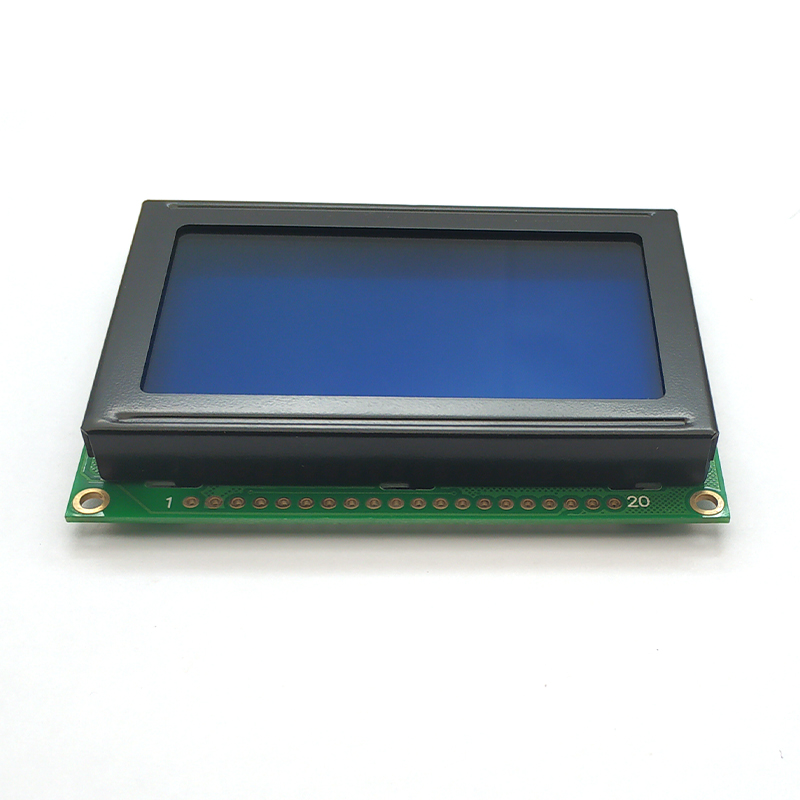

Customized COB STN LED Display 128x64 Dot Matrix LCD Module 12864
Customized COB STN LED Display 128x64 Dot Matrix LCD Module 12864
Customized COB STN LED Display 128x64 Dot Matrix LCD Module 12864
Customized COB STN LED Display 128x64 Dot Matrix LCD Module 12864
Customized COB STN LED Display 128x64 Dot Matrix LCD Module 12864
Customized COB STN LED Display 128x64 Dot Matrix LCD Module 12864
Customized COB STN LED Display 128x64 Dot Matrix LCD Module 12864
Customized COB STN LED Display 128x64 Dot Matrix LCD Module 12864
Customized COB STN LED Display 128x64 Dot Matrix LCD Module 12864
Customized COB STN LED Display 128x64 Dot Matrix LCD Module 12864
Customized COB STN LED Display 128x64 Dot Matrix LCD Module 12864
Customized COB STN LED Display 128x64 Dot Matrix LCD Module 12864
Customized COB STN LED Display 128x64 Dot Matrix LCD Module 12864
Customized COB STN LED Display 128x64 Dot Matrix LCD Module 12864
Specifications
Place of Origin :
China
Payment Terms :
T/T,L/C,Credit card,Cash
Dimensions :
75.0mm * 54.7mm * 12.5mm
Display Format :
128x64 Dots
Product Name :
12864 LCD Module COB STN LED 128x64 Dot Matrix LCD Display
Operating Voltage :
3.3V / 5V
Model Number :
WG1206B4
Supply Ability :
5000000000 pieces/year
Packaging Details :
Tray + Inner Box + Carton
Controller :
KS0107 & KS0108
Backlight Color :
Usually Y-G or Blue or Gray
Backlight :
LED
MOQ :
1 piece
Viewing Angle :
6 O'clock
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Interface :
20-Pin, 8-bit MPU interface
Display Mode :
STN
Brand Name :
Formike
Operating Temperature :
-20°C to 70°C
Display Type :
Graphic LCD Display Modules
Description

12864 LCD Module COB STN LED 128x64 Dot Matrix LCD Display

Customized COB STN LED Display 128x64 Dot Matrix LCD Module 12864

Product Specification
LCD Name 12864 LCD Module COB STN LED 128x64 Dot Matrix LCD Display
Display Format

128*64 Dots
Module Size 75.0mm×54.7mm×12.5mm
View Area 60.0mm×32.6mm
Active Area 55.01mmx27.49mm
Dot Size 0.40mm×0.40mm
Dot Pitch 0.43mm×0.43mm
IC KS0107 &KS0108
Interface 20 Pin, 8-bit MPU interface enabled
Driving Method 1/64 Duty, 1/9 Bias
Viewing Direction 6 O’clock
Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃
Different series type LCD mode for you to choose
No. Part Number LCD Type Backlight Color Font Color Background Color Voltage
1 WG1206B4SBY6B-A1 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 5V
2 WG1206B4SBY6B-A2 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 3.3V
3 WG1206B4SGW6B-A1 STN Negative Blue White Color White Color Blue Color 5V
4 WG1206B4SGW6B-A2 STN Negative Blue White Color White Color Blue Color 3.3V
5 WG1206B4SKW6B-A1 STN GREY Positive White Color Black Color Grey Color 5V
6 WG1206B4SKW6B-A2 STN GREY Positive White Color Black Color Grey Color 3.3V

Customized COB STN LED Display 128x64 Dot Matrix LCD Module 12864

Customized COB STN LED Display 128x64 Dot Matrix LCD Module 12864

Customized COB STN LED Display 128x64 Dot Matrix LCD Module 12864Customized COB STN LED Display 128x64 Dot Matrix LCD Module 12864Customized COB STN LED Display 128x64 Dot Matrix LCD Module 12864
