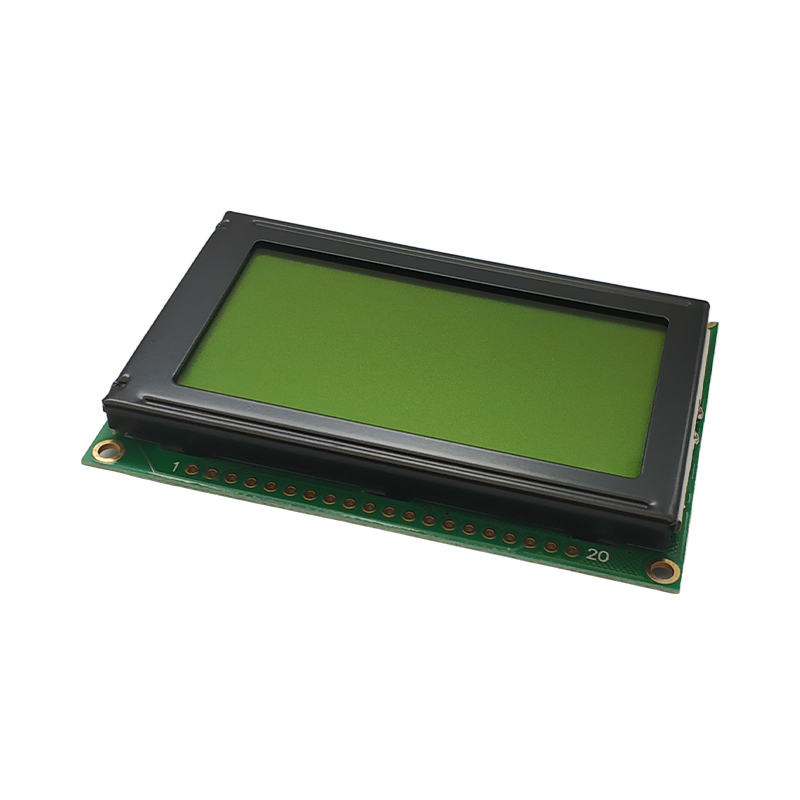

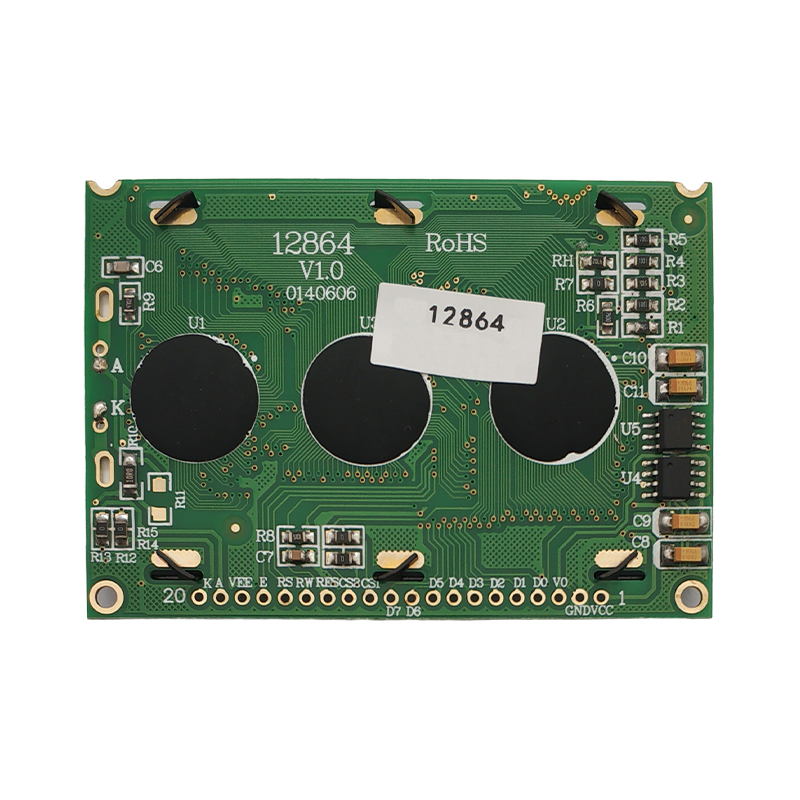

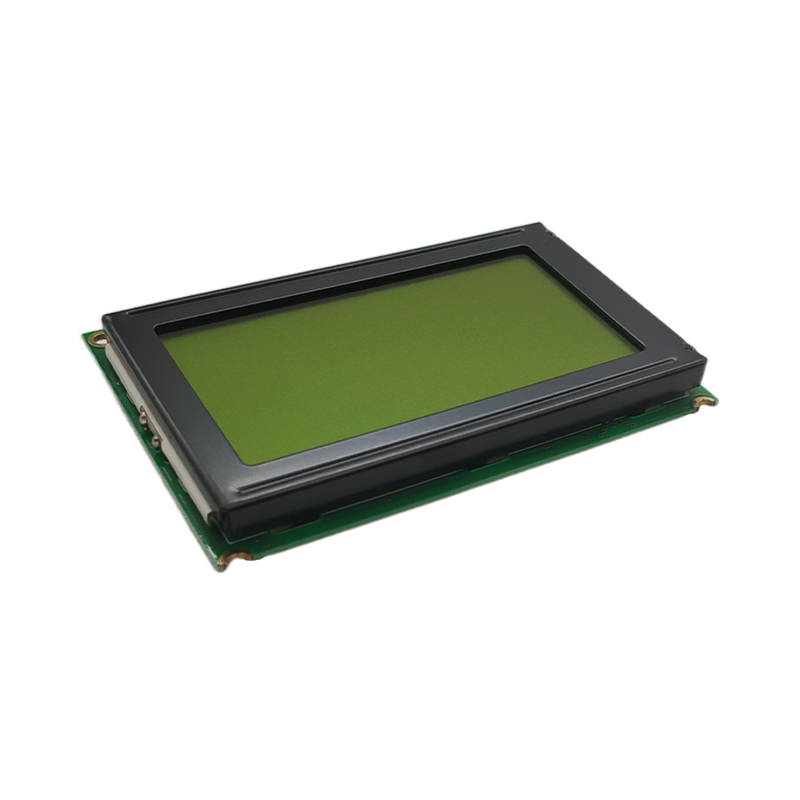

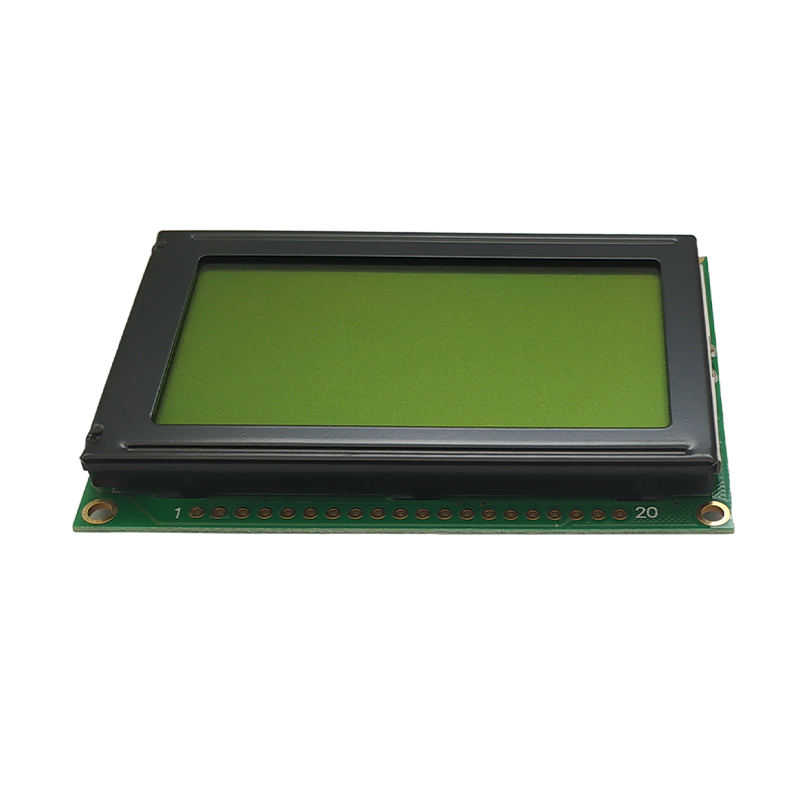

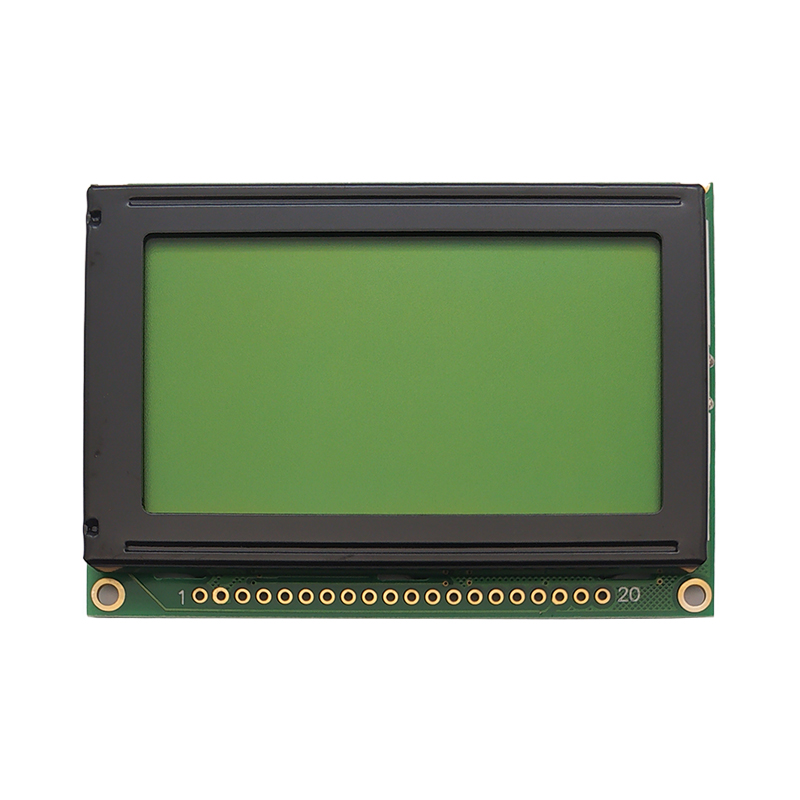

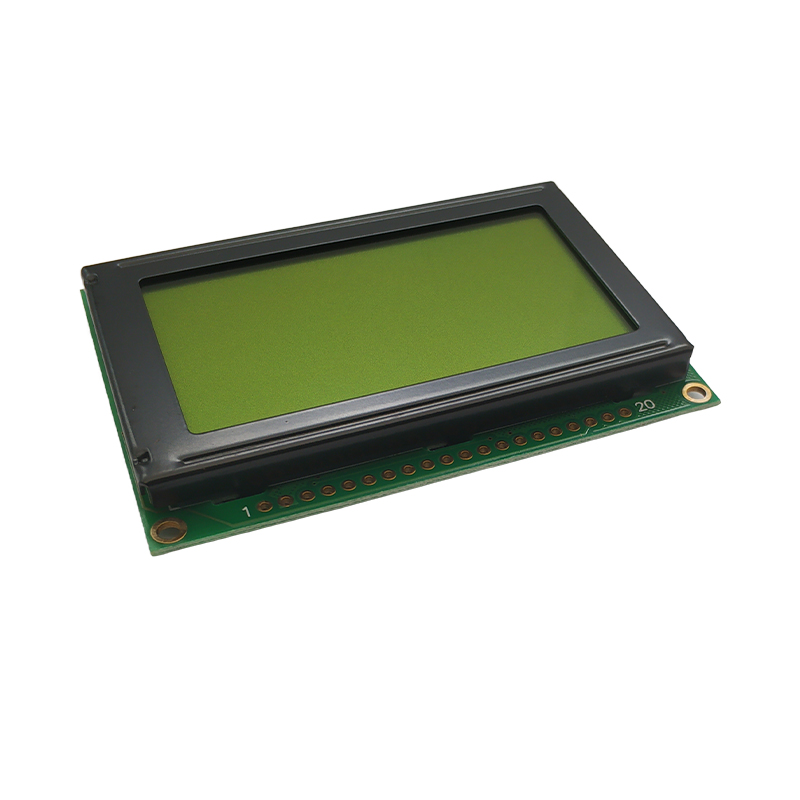

STN Graphic 12864 128x64 LCD Display Screen LCM Module LED Backlight
STN Graphic 12864 128x64 LCD Display Screen LCM Module LED Backlight
STN Graphic 12864 128x64 LCD Display Screen LCM Module LED Backlight
STN Graphic 12864 128x64 LCD Display Screen LCM Module LED Backlight
STN Graphic 12864 128x64 LCD Display Screen LCM Module LED Backlight
STN Graphic 12864 128x64 LCD Display Screen LCM Module LED Backlight
STN Graphic 12864 128x64 LCD Display Screen LCM Module LED Backlight
STN Graphic 12864 128x64 LCD Display Screen LCM Module LED Backlight
STN Graphic 12864 128x64 LCD Display Screen LCM Module LED Backlight
STN Graphic 12864 128x64 LCD Display Screen LCM Module LED Backlight
STN Graphic 12864 128x64 LCD Display Screen LCM Module LED Backlight
STN Graphic 12864 128x64 LCD Display Screen LCM Module LED Backlight
STN Graphic 12864 128x64 LCD Display Screen LCM Module LED Backlight
STN Graphic 12864 128x64 LCD Display Screen LCM Module LED Backlight
Specifications
Place of Origin :
China
Interface :
20 Pin, 8-bit MPU
Backlight :
LED
Supply Ability :
5000000000 pieces/year
Product Name :
12864 LCD Screen STN Display 128*64 LCM LCD Module
Display Type :
Graphic LCD Screen
Brand Name :
Formike
Packaging Details :
Tray + Inner Box + Carton
Dimensions :
75.0mm * 52.7mm * 8.9mm
Display Format :
128x64 Dots
Viewing Angle :
6 O'clock
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Operating Temperature :
-20°C to 70°C
MOQ :
1 piece
Controller :
KS0107 & KS0108
Model Number :
WG1206B7
Display Mode :
STN
Payment Terms :
T/T,L/C,Credit card,Cash
Operating Voltage :
3.3V / 5V
Backlight Color :
Usually Y-G or Blue or Gray
Description

12864 LCD Screen STN Display 128*64 LCM LCD Module

STN Graphic 12864 128x64 LCD Display Screen LCM Module LED Backlight

Product Specification
LCD Name 12864 LCD Screen STN Display 128*64 LCM LCD Module
Display Format

128*64 Dots
Module Size 75.0mm×52.7mm×8.9mm
View Area 60.0mm×32.6mm
Active Area 55.01mmx27.49mm
Dot Size 0.40mm×0.40mm
Dot Pitch 0.43mm×0.43mm
IC KS0107 & KS0108
Interface 20 Pin, 8-bit MPU interface enabled
Driving Method 1/64 Duty, 1/9 Bias
Viewing Direction 6 O’clock
Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃
Different series type LCD mode for you to choose
No. Part Number LCD Type Backlight Color Font Color Background Color Voltage
1 WG1206B7SBY6B-A1 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 5V
2 WG1206B7SBY6B-A2 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 3.3V
3 WG1206B7SGW6B-A1 STN Negative Blue White Color White Color Blue Color 5V
4 WG1206B7SGW6B-A2 STN Negative Blue White Color White Color Blue Color 3.3V
5 WG1206B7SKW6B-A1 STN GREY Positive White Color Black Color Grey Color 5V
6 WG1206B7SKW6B-A2 STN GREY Positive White Color Black Color Grey Color 3.3V
