240x320 Mono QVGA LCD TFT Display Panel 2.8 Inch IPS Screen RGB Interface
240x320 Mono QVGA LCD TFT Display Panel 2.8 Inch IPS Screen RGB Interface
240x320 Mono QVGA LCD TFT Display Panel 2.8 Inch IPS Screen RGB Interface
240x320 Mono QVGA LCD TFT Display Panel 2.8 Inch IPS Screen RGB Interface
240x320 Mono QVGA LCD TFT Display Panel 2.8 Inch IPS Screen RGB Interface
240x320 Mono QVGA LCD TFT Display Panel 2.8 Inch IPS Screen RGB Interface
240x320 Mono QVGA LCD TFT Display Panel 2.8 Inch IPS Screen RGB Interface
240x320 Mono QVGA LCD TFT Display Panel 2.8 Inch IPS Screen RGB Interface
240x320 Mono QVGA LCD TFT Display Panel 2.8 Inch IPS Screen RGB Interface
240x320 Mono QVGA LCD TFT Display Panel 2.8 Inch IPS Screen RGB Interface
240x320 Mono QVGA LCD TFT Display Panel 2.8 Inch IPS Screen RGB Interface
240x320 Mono QVGA LCD TFT Display Panel 2.8 Inch IPS Screen RGB Interface
240x320 Mono QVGA LCD TFT Display Panel 2.8 Inch IPS Screen RGB Interface
240x320 Mono QVGA LCD TFT Display Panel 2.8 Inch IPS Screen RGB Interface
Specifications
MOQ :
1 piece
Display Type :
Small IPS TFT LCD Panel
Touch Screen :
Without (Optional with capacitive touch panel)
Product Name :
240x320 QVGA Display TFT LCD 2.8 Inch IPS Screen With 40 Pin RGB Interface
Viewing Angle :
All
Controller Ic :
ILI9341
Packaging Details :
Tray + Inner Box + Carton
Color :
Color
Display Size :
2.8 inch
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Supply Ability :
5000000000 pieces/year
Interface :
40 Pin, RGB
Resolution :
240*320
Dimensions :
46.80mm ×65.35mm × 2.25mm
Supply Voltage :
3.2V
Payment Terms :
T/T, L/C, Credit card, Cash
Operating Temperature :
-20°C to 70°C
Model Number :
KWH028Q34-F01
Place of Origin :
China
Brand Name :
Formike
Description

240x320 QVGA Display TFT LCD 2.8 Inch IPS Screen With 40 Pin RGB Interface

240x320 Mono QVGA LCD TFT Display Panel 2.8 Inch IPS Screen RGB Interface

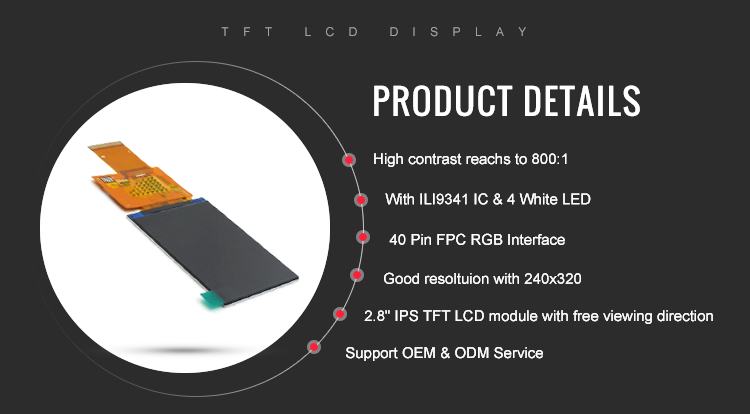

LCD Name 240x320 QVGA Display TFT LCD 2.8 Inch IPS Screen With 40 Pin RGB Interface

LCD Size

2.8 inch LCD Module

Resolution

240(RGB)X320 Resolution

Color Depth

65K/262K

Contrast Ratio

800:1

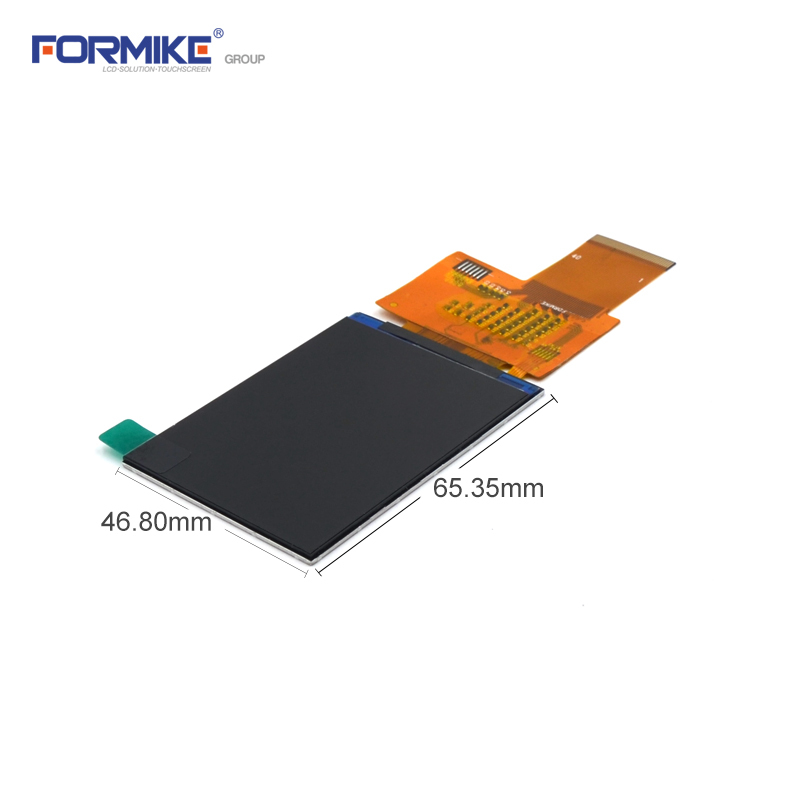

Outline Dimension

46.80x 65.35 x 2.25mm

Active Area(HxV mm)

43.20x57.60mm

Viewing Direction

All

Interface

RGB, 40 Pin

Backlight

4 LED

Brightness

250cd/m2

Operating Temperature

-20℃~70℃

Backlight Supply Current/Voltage

60mA, 3.3V

Driver IC

ILI9341

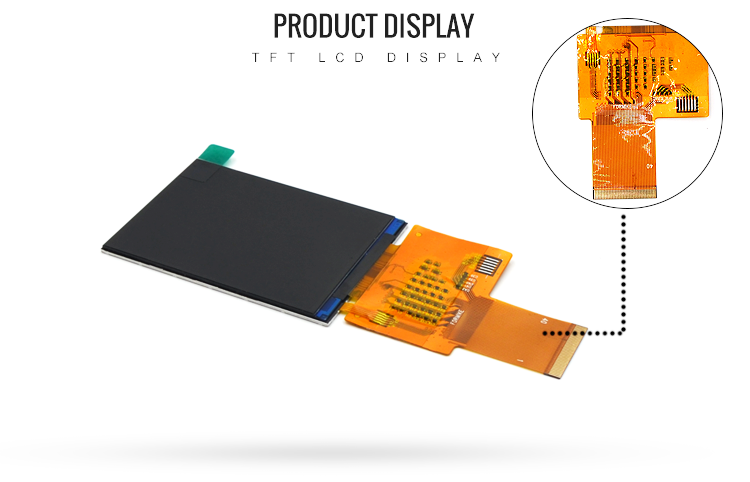

* KWH028Q34-F01 is a small Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 240x320 resolution TFT LCD module.

* Backlight with different brightness options from 200 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
