Specifications
Controller Ic :
ILI9341
Viewing Angle :
6 O'Clock
Packaging Details :
Tray + Inner Box + Carton
Brand Name :
Formike
Product Name :
ILI9341 TFT SPI 240x320 Resolution 2.8 Inch LCD Display
Operating Temperature :
-20°C to 70°C
Supply Voltage :
3.2V
Model Number :
KWH028Q29-F01
Color :
Color
Interface :
45 Pin, RGB,MCU,Serial
Payment Terms :
T/T, L/C, Credit card, Cash
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Touch Screen :
Without (Optional with touch screen)
Display Type :
Small TFT LCD Screen Module
Dimensions :
50.0mm × 69.2mm × 2.45mm
Display Size :
2.8 inch
MOQ :
1 piece
Supply Ability :
5000000000 pieces/year
Place of Origin :
China
Resolution :
240*320
Description

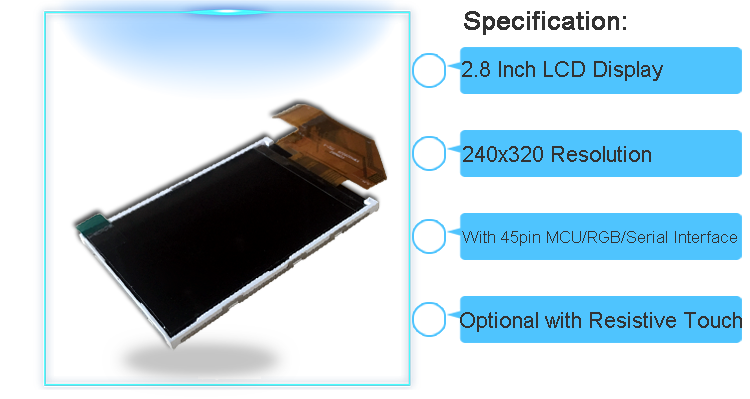

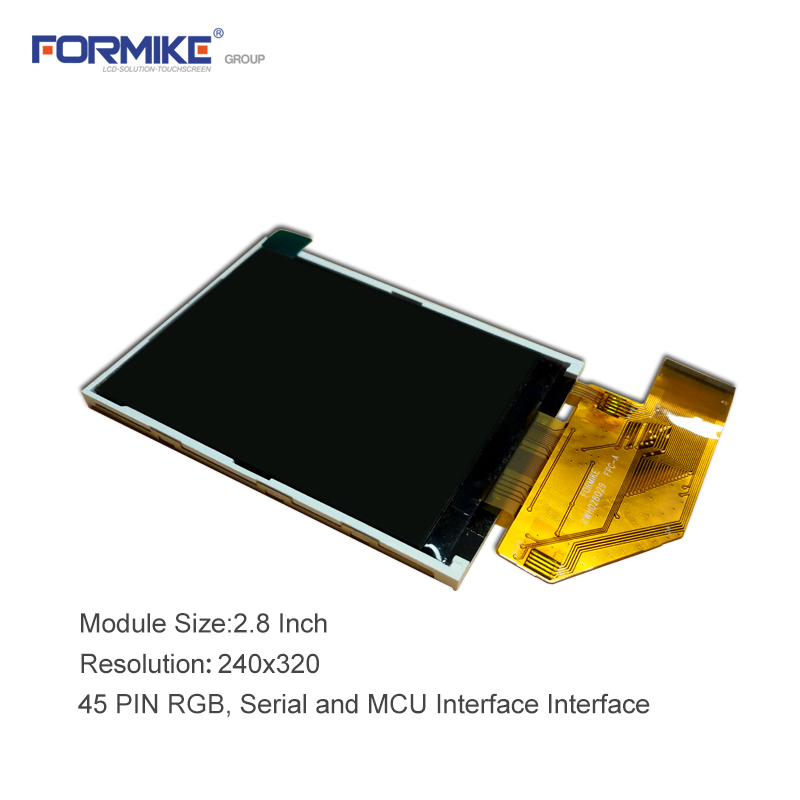

ILI9341 TFT SPI 240x320 Resolution 2.8 Inch LCD Display

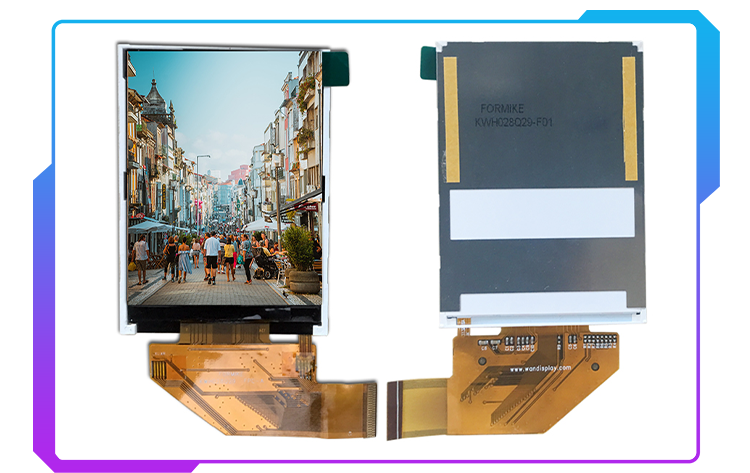

Transmissive ILI9341 RGB SPI LCD TFT Colour Display 240x320 Resolution 2.8 Inch

Product NameILI9341 TFT SPI 240x320 Resolution 2.8 Inch LCD Display
LCD Size2.8 Inch TFT LCD Display Module
Display ModeTransmissive
Resolution240x320

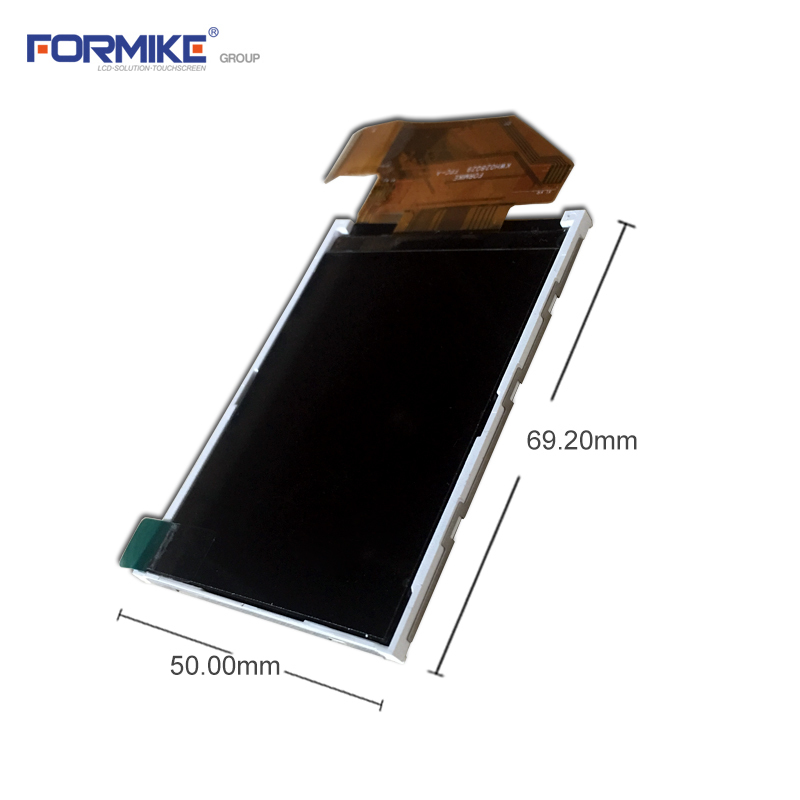

Outline Dimension (mm)50.00x69.20x2.45
Active Area (mm)43.20x57.60
Dot pitch (mm)0.18x0.18
Viewing Direction6 O'Clock
InterfaceMCU/RGB/Serial Interface, 45 Pin
Driver ICILI9341
Brightness (Cd/m2)320
Contrast Ratio300:1
Backlight4 White LED In Parallel

Backlight Supply
(Current/Voltage)

60mA 3.2V
Touch ScreenOptional With Resistive Touch

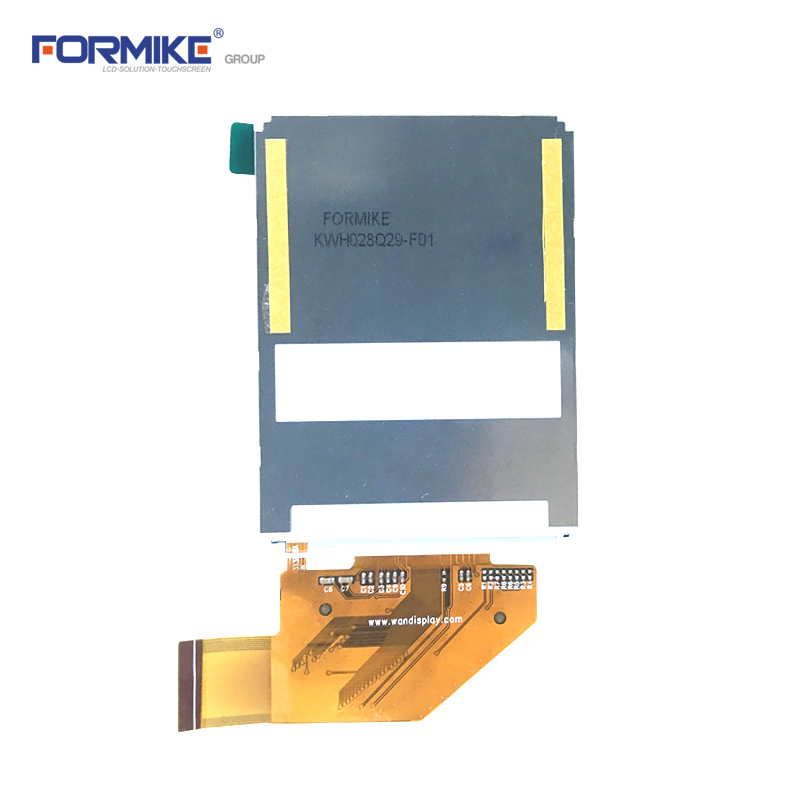

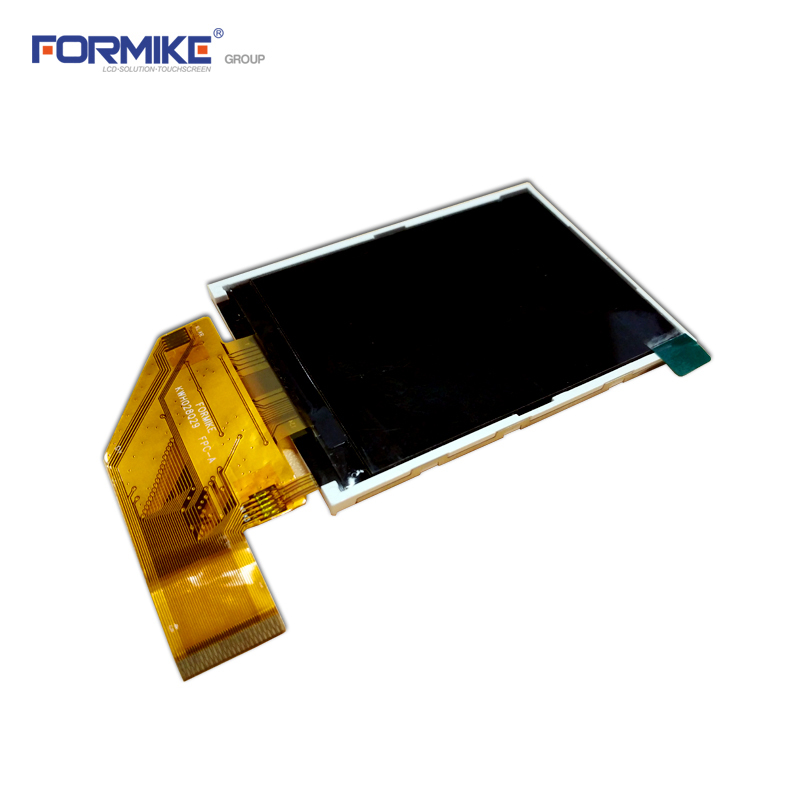

* KWH028Q29-F01 is a Transmissive type color active matrix liquid crystal display (LCD).

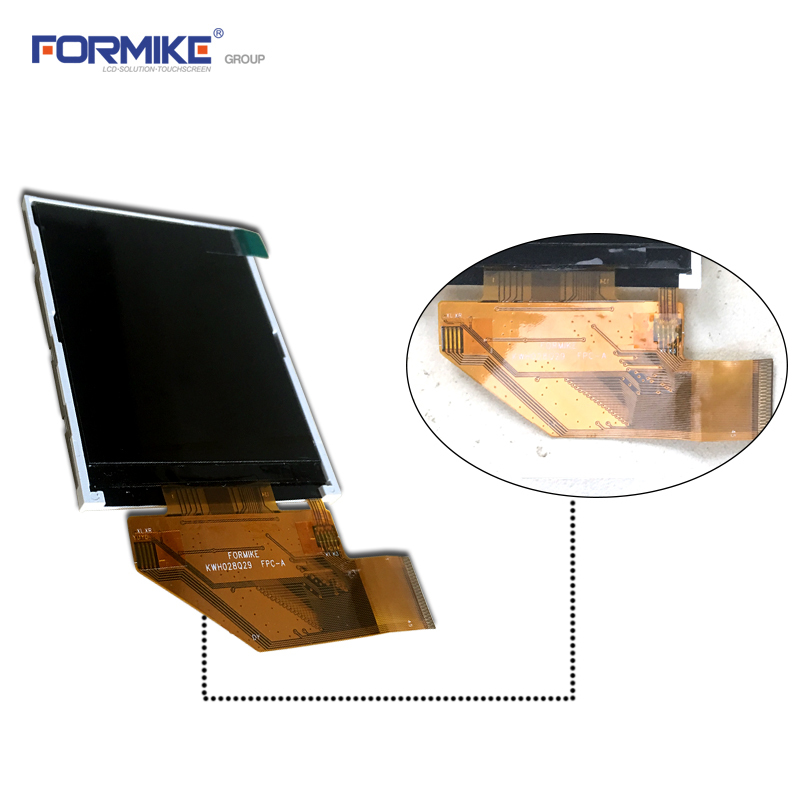

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 240x320 resolution TFT LCD module.

* Backlight with different brightness options from 320 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

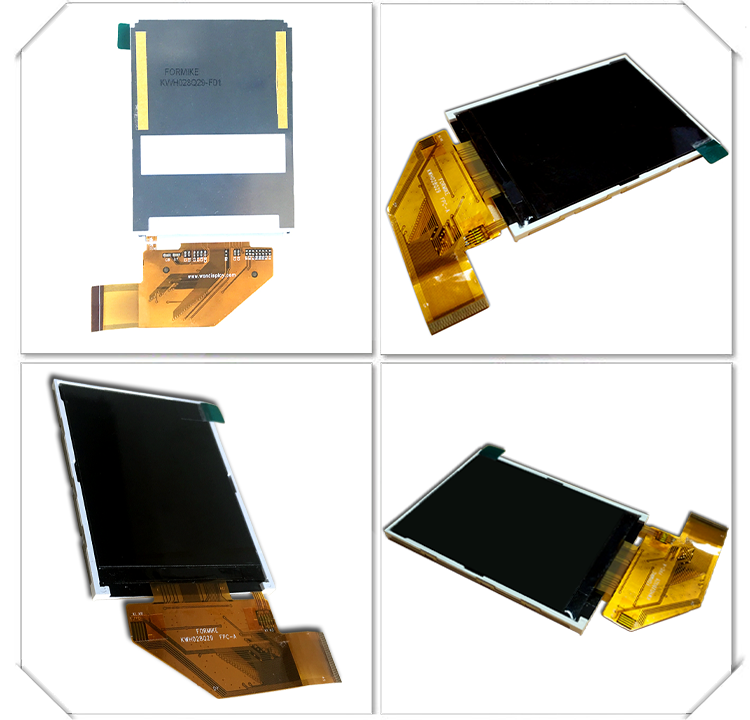

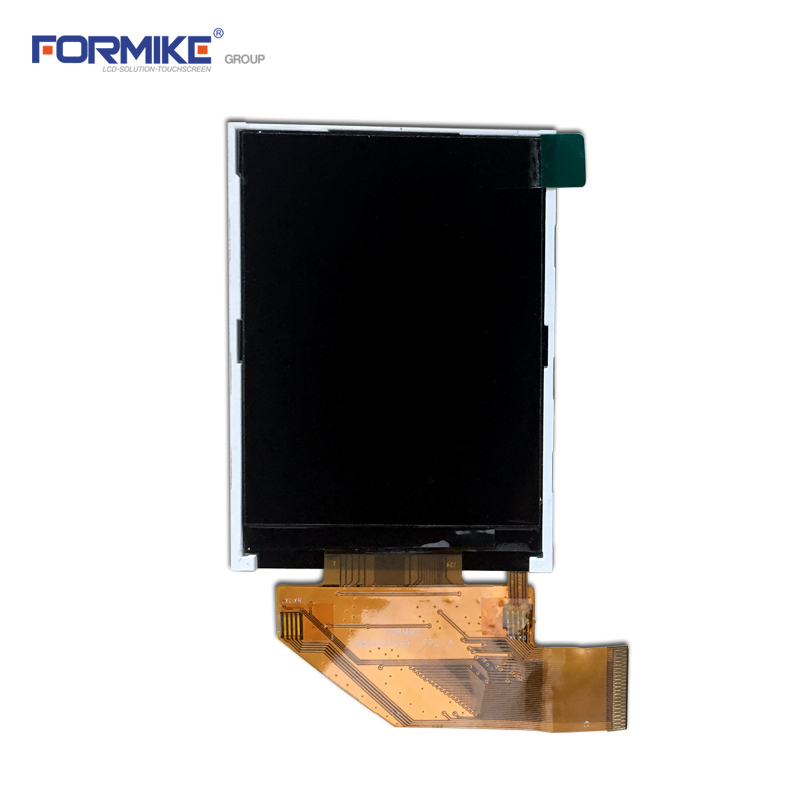

Transmissive ILI9341 RGB SPI LCD TFT Colour Display 240x320 Resolution 2.8 InchTransmissive ILI9341 RGB SPI LCD TFT Colour Display 240x320 Resolution 2.8 Inch
