Specifications
Controller Ic :
ILI9341
Color :
Color
Display Size :
2.8 inch
Packaging Details :
Tray + Inner Box + Carton
Display Type :
Small TFT LCD Display
Touch Screen :
Without (Optional with touch panel)
Viewing Angle :
6 O'Clock
Brand Name :
Formike
MOQ :
1 piece
Product Name :
240x320 TFT LCD Panel 2.8 Inch LCD Screen With High Brightness
Model Number :
KWH028Q28-F01
Supply Ability :
5000000000 pieces/year
Operating Temperature :
-20°C to 70°C
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Resolution :
240*320
Dimensions :
50.00mm x 69.20mm x 2.45mm
Supply Voltage :
3.2V
Place of Origin :
China
Payment Terms :
T/T, L/C, Credit card, Cash
Interface :
37 Pin, 8/16 BIT MCU
Description

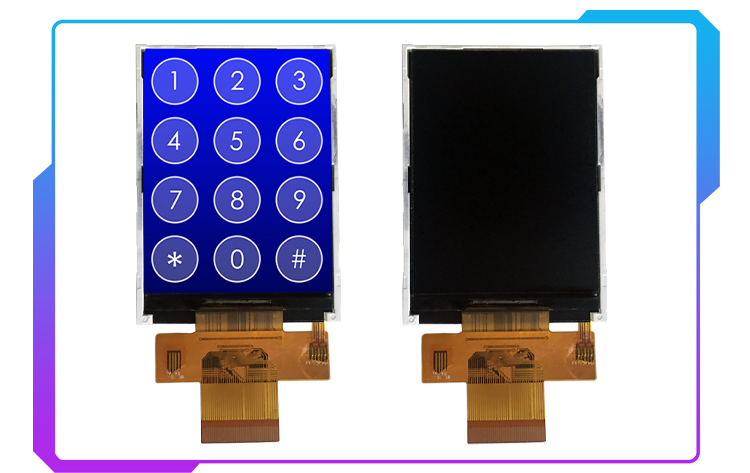

240x320 TFT LCD Panel 2.8 Inch LCD Screen With High Brightness

ODM 3.2V 240x320 TFT LCD Panel touch Screen Display 2.8 Inch High Brightness

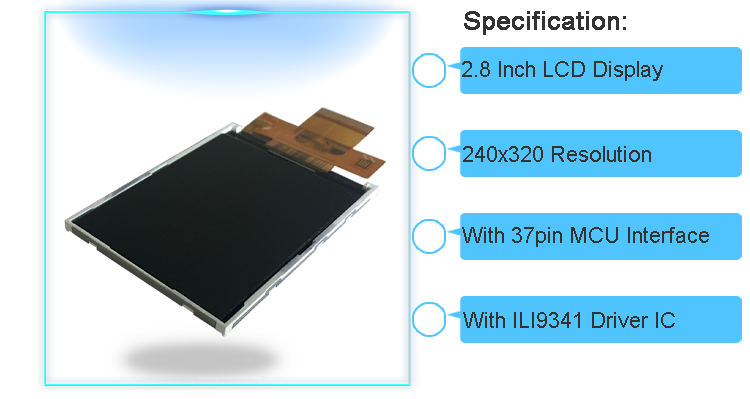

Product Name 240x320 TFT LCD Panel 2.8 Inch LCD Screen With High Brightness
LCD Size 2.8 Inch TFT LCD Display Module
Display Mode Transmissive
Resolution 240x320
Outline Dimension (mm) 50.00x69.20x2.45
Active Area (mm) 43.20x57.60
Dot pitch (mm) 0.18x0.18
Viewing Direction 6 O'Clock
Interface 8 / 16 BIT MCU Interface, 37 Pin
Driver IC ILI9341
Brightness (Cd/m2) 320
Contrast Ratio 500:1
Backlight 4 White LED In Parallel

Backlight Supply

(Current/Voltage)

 60mA 3.2V
Touch Screen Without (Optional with)

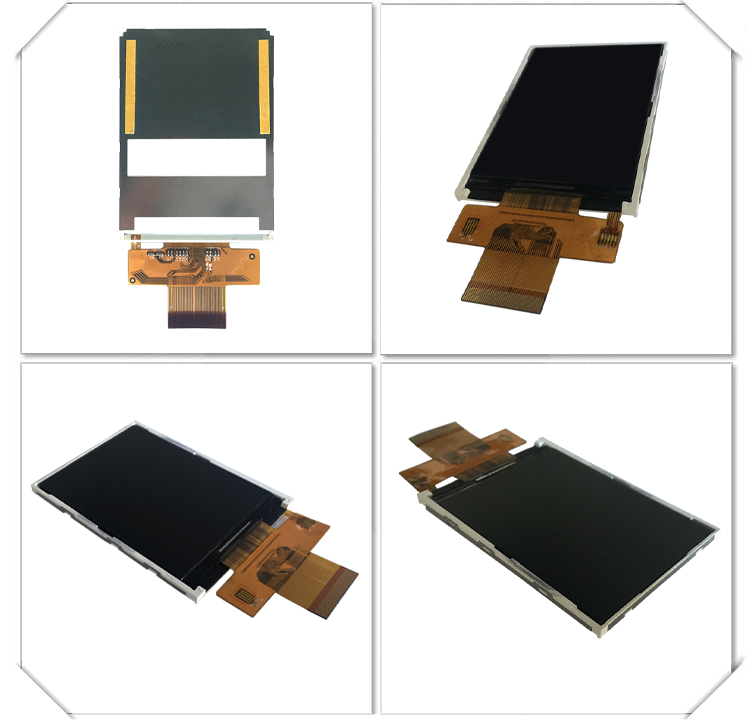

* KWH028Q28-F01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 240x320 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
