MCU 240x320 2.8 Inch TFT LCD Module Display Module With Capacitive Touch Panel
MCU 240x320 2.8 Inch TFT LCD Module Display Module With Capacitive Touch Panel
MCU 240x320 2.8 Inch TFT LCD Module Display Module With Capacitive Touch Panel
MCU 240x320 2.8 Inch TFT LCD Module Display Module With Capacitive Touch Panel
MCU 240x320 2.8 Inch TFT LCD Module Display Module With Capacitive Touch Panel
MCU 240x320 2.8 Inch TFT LCD Module Display Module With Capacitive Touch Panel
MCU 240x320 2.8 Inch TFT LCD Module Display Module With Capacitive Touch Panel
MCU 240x320 2.8 Inch TFT LCD Module Display Module With Capacitive Touch Panel
MCU 240x320 2.8 Inch TFT LCD Module Display Module With Capacitive Touch Panel
MCU 240x320 2.8 Inch TFT LCD Module Display Module With Capacitive Touch Panel
MCU 240x320 2.8 Inch TFT LCD Module Display Module With Capacitive Touch Panel
MCU 240x320 2.8 Inch TFT LCD Module Display Module With Capacitive Touch Panel
MCU 240x320 2.8 Inch TFT LCD Module Display Module With Capacitive Touch Panel
MCU 240x320 2.8 Inch TFT LCD Module Display Module With Capacitive Touch Panel
Specifications
Color :
Color
Resolution :
240*320
Supply Ability :
5000000000 pieces/year
Packaging Details :
Tray + Inner Box + Carton
Product Name :
MCU LCD 240x320 Resolution 2.8 Inch TFT Display With Capacitive Touch Panel
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Touch Screen :
With capacitive touch panel
Controller Ic :
ILI9341
Operating Temperature :
-20°C to 70°C
Interface :
37Pin, 8/16 BIT MCU
Place of Origin :
China
Model Number :
KWH028Q47-C01
MOQ :
1 piece
Display Type :
Small TFT LCD Panel
Payment Terms :
T/T, L/C, Credit card, Cash
Supply Voltage :
3.2V
Display Size :
2.8 inch
Viewing Angle :
6 O'Clock
Brand Name :
Formike
Dimensions :
50.0mm x 69.2mm x 3.90mm
Description

MCU LCD 240x320 Resolution 2.8 Inch TFT Display With Capacitive Touch Panel

MCU 240x320 2.8 Inch TFT LCD Module Display Module With Capacitive Touch Panel

Product Name MCU LCD 240x320 Resolution 2.8 Inch TFT Display With Capacitive Touch Panel

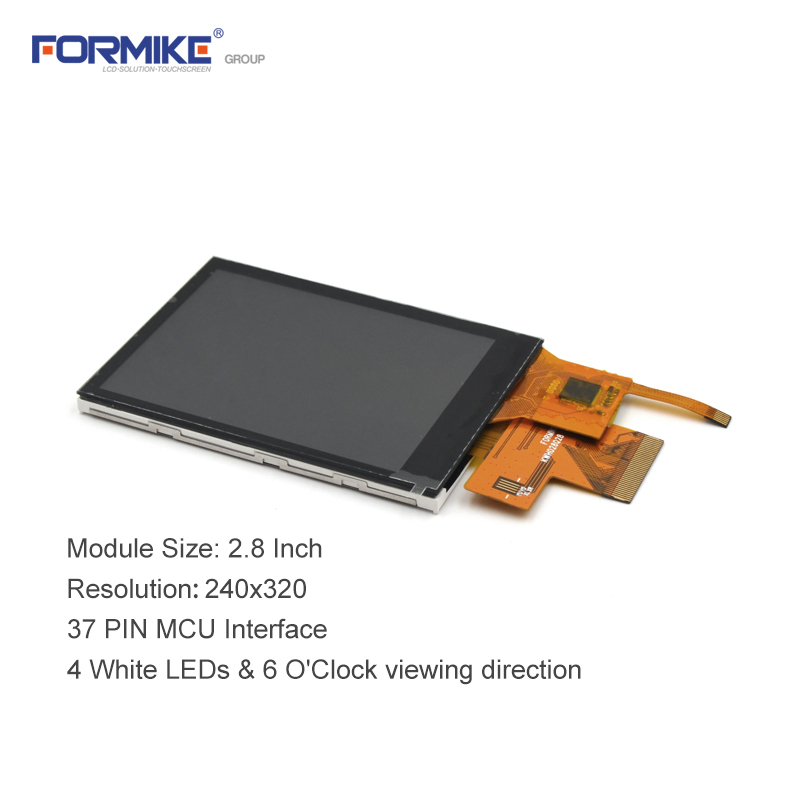

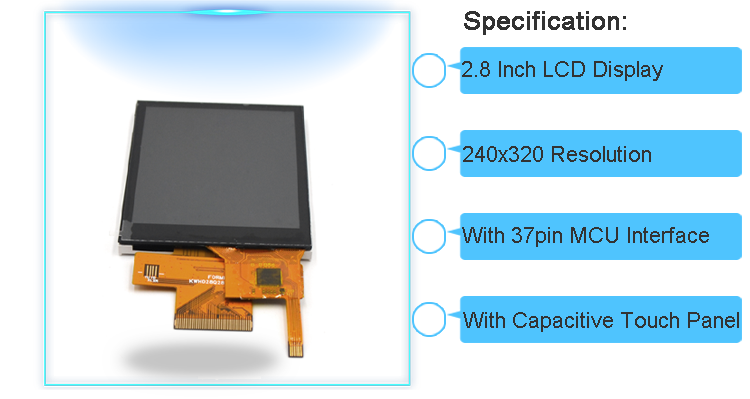

LCD Size 2.8 Inch TFT LCD Display Module
Display Mode Transmissive
Resolution 240x320

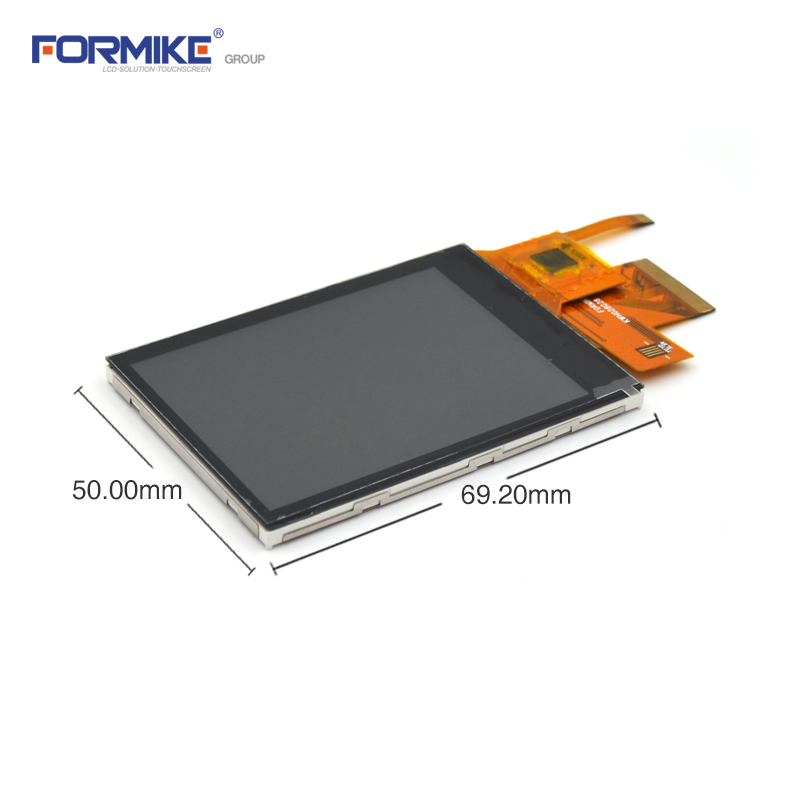

Outline Dimension (mm) 50.00x69.20x3.90
Active Area (mm) 43.20x57.60
Dot pitch (mm) 0.18x0.18
Viewing Direction 6 O'Clock
Interface 8 / 16 BIT MCU Interface, 37 Pin
Driver IC ILI9341
Brightness (Cd/m2) 260
Contrast Ratio 500:1
Backlight 4 White LED

Backlight Supply

(Current/Voltage)

 60mA 3.2V
Touch Screen With Capacitive Touch Screen Panel

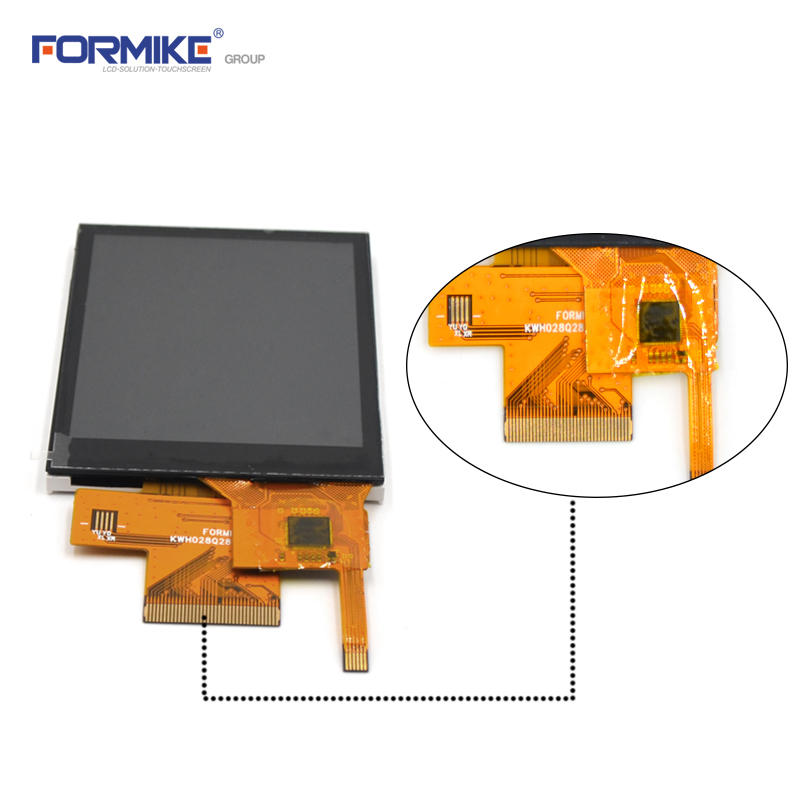

* KWH028Q47-C01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.

* It is 240x320 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

MCU 240x320 2.8 Inch TFT LCD Module Display Module With Capacitive Touch PanelMCU 240x320 2.8 Inch TFT LCD Module Display Module With Capacitive Touch Panel
