2.8 Inch TFT LCD Display Panel ILI9341 240x320 Resolution With Resistive Touch
2.8 Inch TFT LCD Display Panel ILI9341 240x320 Resolution With Resistive Touch
2.8 Inch TFT LCD Display Panel ILI9341 240x320 Resolution With Resistive Touch
2.8 Inch TFT LCD Display Panel ILI9341 240x320 Resolution With Resistive Touch
2.8 Inch TFT LCD Display Panel ILI9341 240x320 Resolution With Resistive Touch
2.8 Inch TFT LCD Display Panel ILI9341 240x320 Resolution With Resistive Touch
2.8 Inch TFT LCD Display Panel ILI9341 240x320 Resolution With Resistive Touch
2.8 Inch TFT LCD Display Panel ILI9341 240x320 Resolution With Resistive Touch
2.8 Inch TFT LCD Display Panel ILI9341 240x320 Resolution With Resistive Touch
2.8 Inch TFT LCD Display Panel ILI9341 240x320 Resolution With Resistive Touch
2.8 Inch TFT LCD Display Panel ILI9341 240x320 Resolution With Resistive Touch
2.8 Inch TFT LCD Display Panel ILI9341 240x320 Resolution With Resistive Touch
2.8 Inch TFT LCD Display Panel ILI9341 240x320 Resolution With Resistive Touch
2.8 Inch TFT LCD Display Panel ILI9341 240x320 Resolution With Resistive Touch
Specifications
Display Type :
Small TFT LCD Screen Panel
Packaging Details :
Tray + Inner Box + Carton
Controller Ic :
ILI9341
Interface :
37 Pin, 8/16 BIT MCU
MOQ :
1 piece
Payment Terms :
T/T, L/C, Credit card, Cash
Supply Voltage :
3.2V
Resolution :
240*320
Model Number :
KWH028Q27-F02
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Product Name :
2.8 Inch TFT LCD Display Panel ILI9341 240x320 Resolution With Resistive Touch
Brand Name :
Formike
Operating Temperature :
-20°C to 70°C
Viewing Angle :
6 O'Clock
Color :
Color
Touch Screen :
With resistive touch screen
Place of Origin :
China
Supply Ability :
5000000000 pieces/year
Dimensions :
50.00mm x 69.20mm x 3.65mm
Display Size :
2.8 inch
Description

2.8 Inch TFT LCD Display Panel ILI9341 240x320 Resolution With Resistive Touch

2.8 Inch TFT LCD Display Panel ILI9341 240x320 Resolution With Resistive Touch

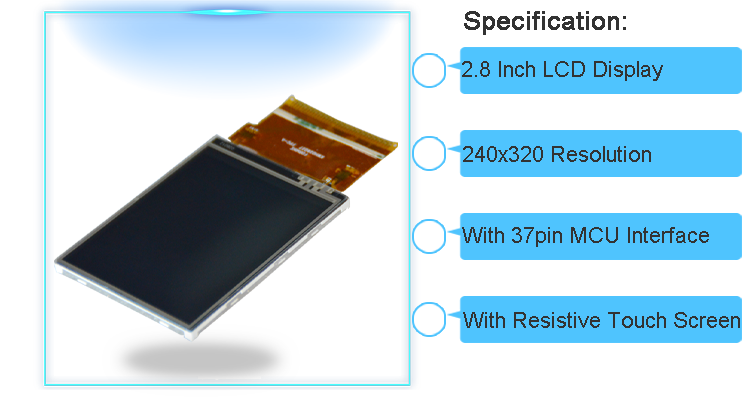

Product Name2.8 Inch TFT LCD Display Panel ILI9341 240x320 Resolution With Resistive Touch
LCD Size2.8 Inch TFT LCD Display Module
Display ModeTransmissive
Resolution240x320

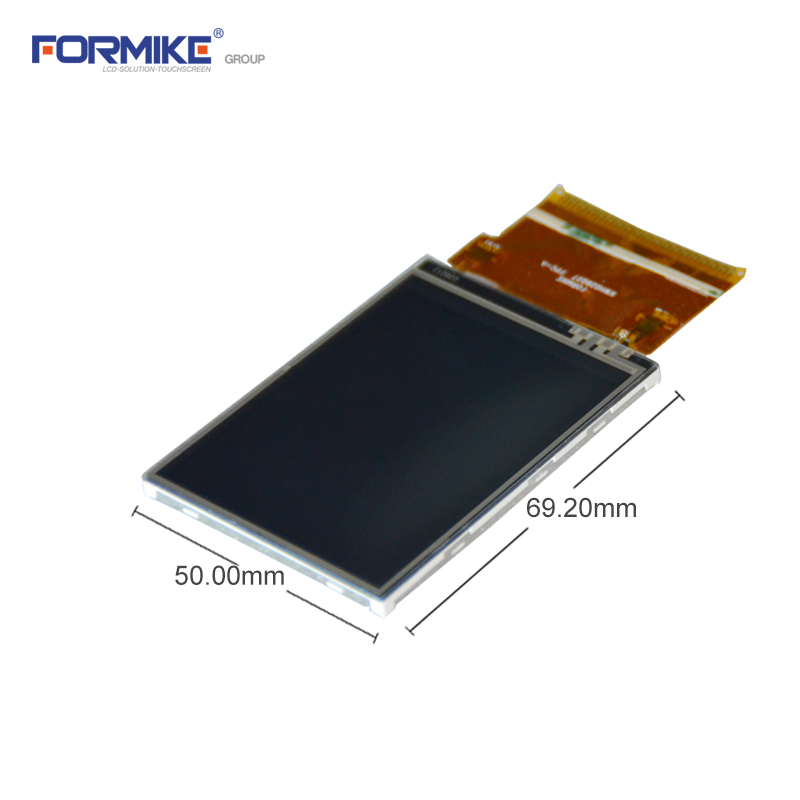

Outline Dimension (mm)50.00x69.20x3.65
Active Area (mm)43.20x57.60
Dot pitch (mm)0.18x0.18
Viewing Direction6 O'Clock

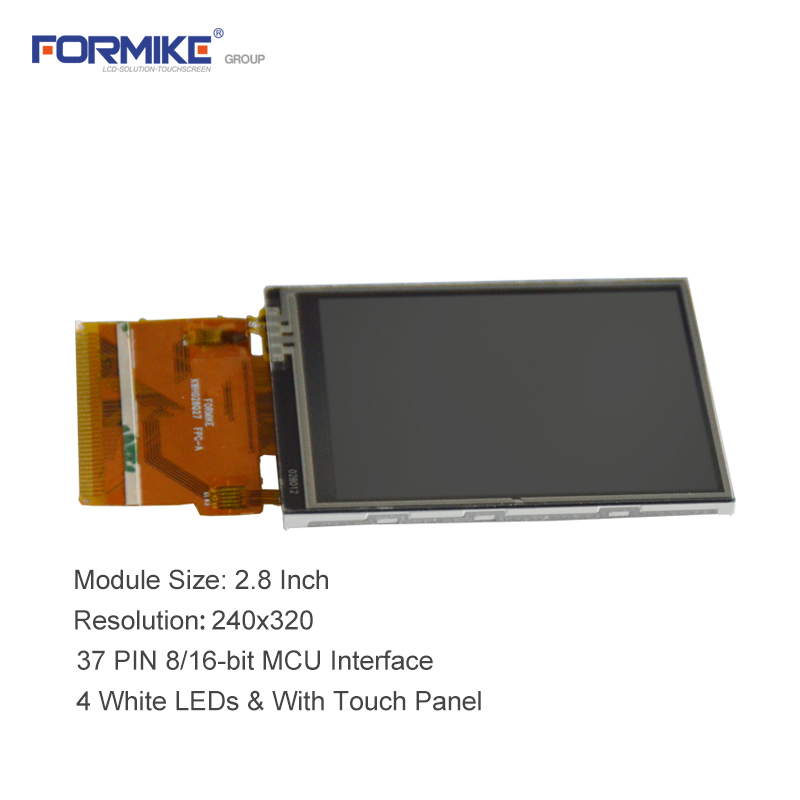

Interface8 / 16 BIT MCU Interface, 37 Pin
Driver ICILI9341
Brightness (Cd/m2)280
Contrast Ratio300:1
Backlight4 White LED In Parallel

Backlight Supply
(Current/Voltage)

60mA 3.2V
Touch ScreenWith Resistive Touch Screen

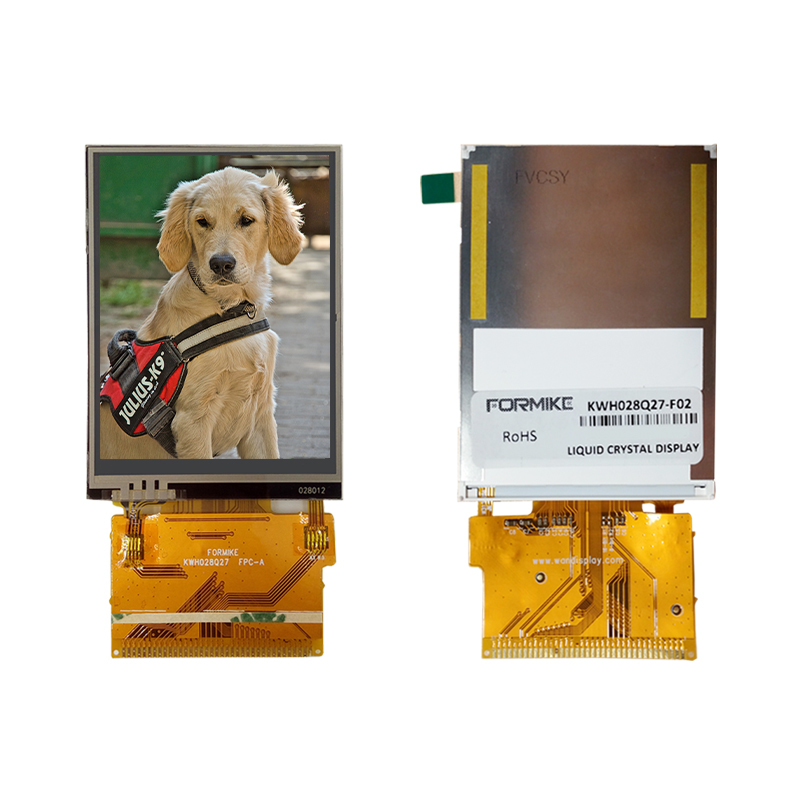

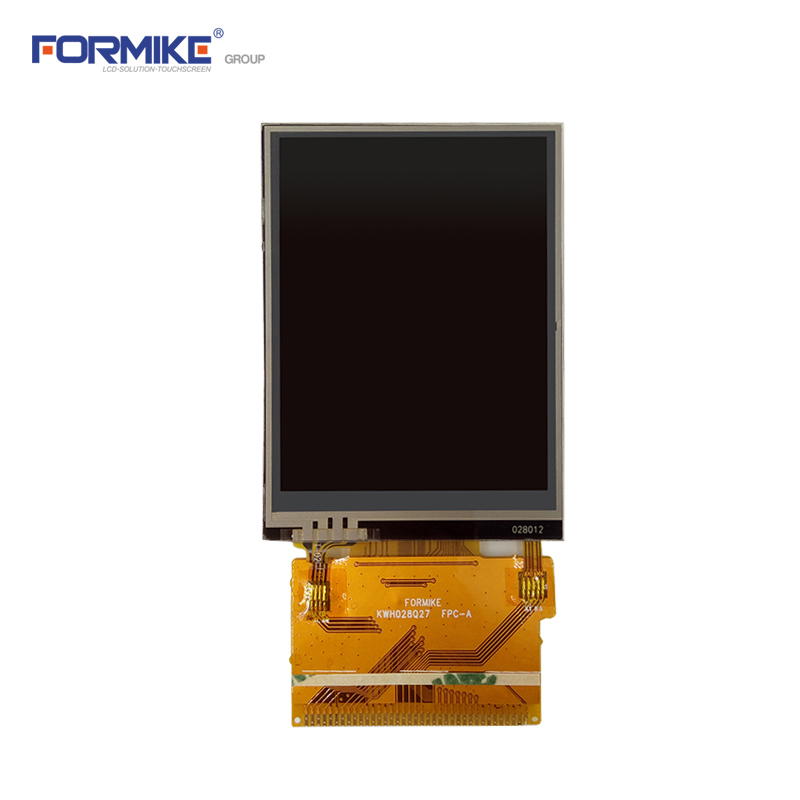

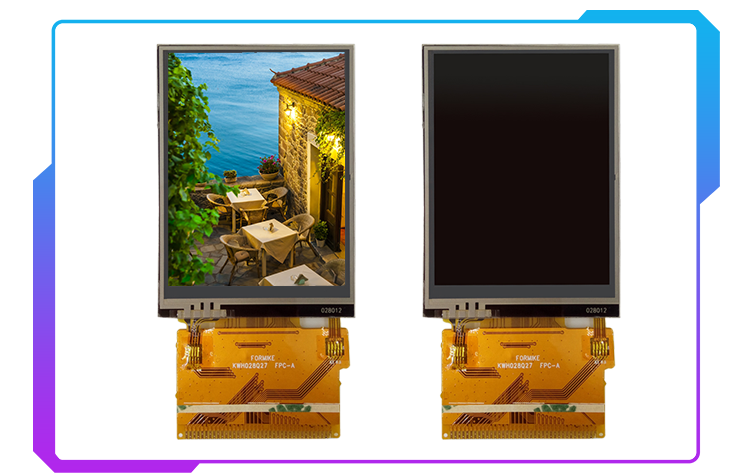

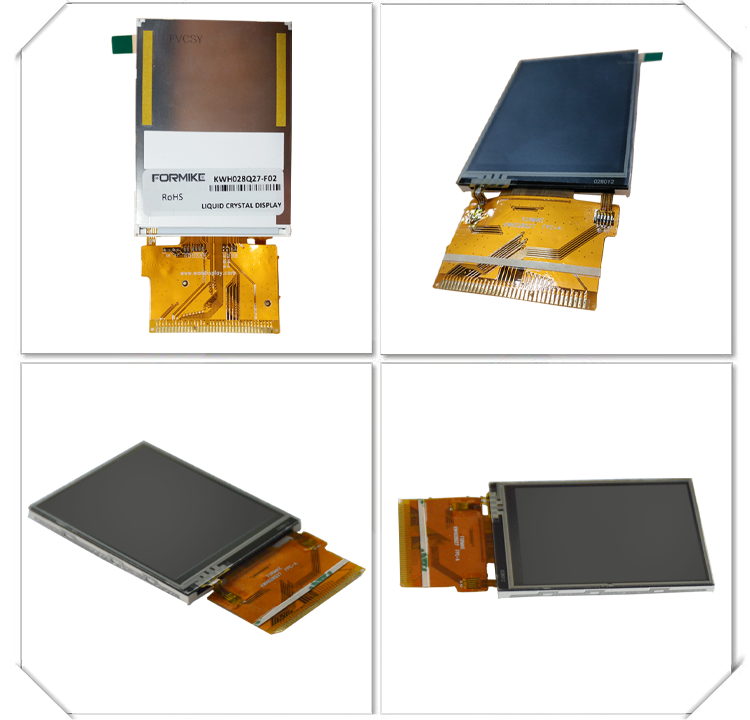

* KWH028Q27-F02 is a Transmissive type color active matrix liquid crystal display (LCD).

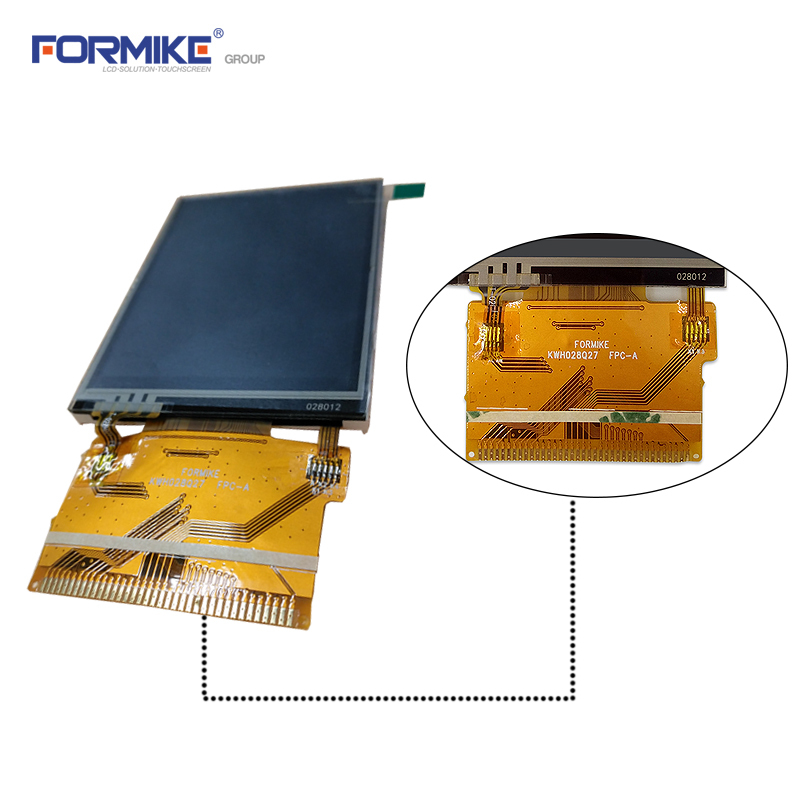

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, RTP.

* It is 240x320 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

2.8 Inch TFT LCD Display Panel ILI9341 240x320 Resolution With Resistive Touch2.8 Inch TFT LCD Display Panel ILI9341 240x320 Resolution With Resistive Touch
