Specifications
Operating Temperature :
-20°C to 70°C
Interface :
40Pin, RGB
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Product Name :
IPS TFT 240x320 Resolution 2.8 Touch Screen LCD Module With All Viewing Direction
Brand Name :
Formike
Payment Terms :
T/T, L/C, Credit card, Cash
Resolution :
240*320
Controller Ic :
ILI9341
Packaging Details :
Tray + Inner Box + Carton
Display Type :
Small IPS TFT LCD Screen
Supply Voltage :
3.2V
Model Number :
KWH028Q34-C01
Supply Ability :
5000000000 pieces/year
Touch Screen :
With capacitive touch panel
MOQ :
1 piece
Color :
Color
Dimensions :
47.90mm × 65.35mm × 3.80mm
Viewing Angle :
All
Place of Origin :
China
Display Size :
2.8 inch
Description

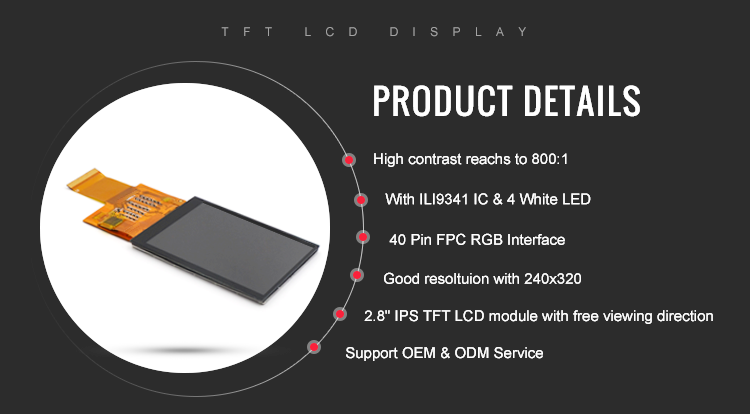

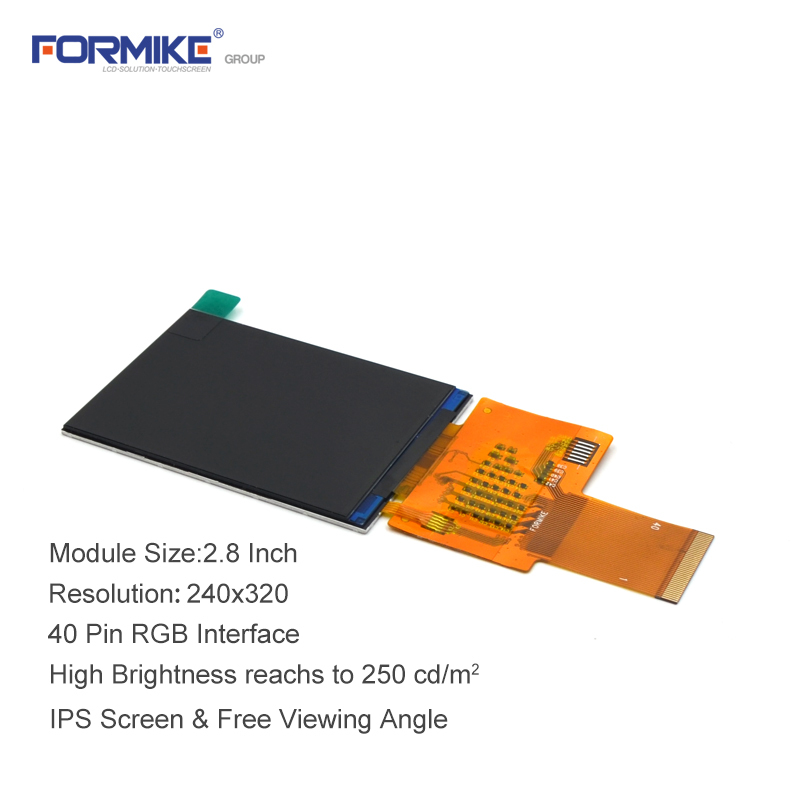

IPS TFT 240x320 Resolution 2.8 Touch Screen LCD Module With All Viewing Direction

Small IPS 240x320 LCD Module Transparent TFT 2.8 Touch Screen 40Pin

LCD Name IPS TFT 240x320 Resolution 2.8 Touch Screen LCD Module With All Viewing Direction

LCD Size

2.8 inch IPS LCD Module

Resolution

240(RGB)X320 Resolution

Color Depth

65K/262K

Contrast Ratio

800:1

Outline Dimension

46.80x 65.35 x 2.25mm

Active Area(HxV mm)

43.20x57.60mm

Viewing Direction

All

Interface

RGB, 40 Pin

Backlight

4 LED

Brightness

200cd/m2

Operating Temperature

-20℃~70℃

Backlight Supply Current/Voltage

60mA, 3.3V

Driver IC

ILI9341

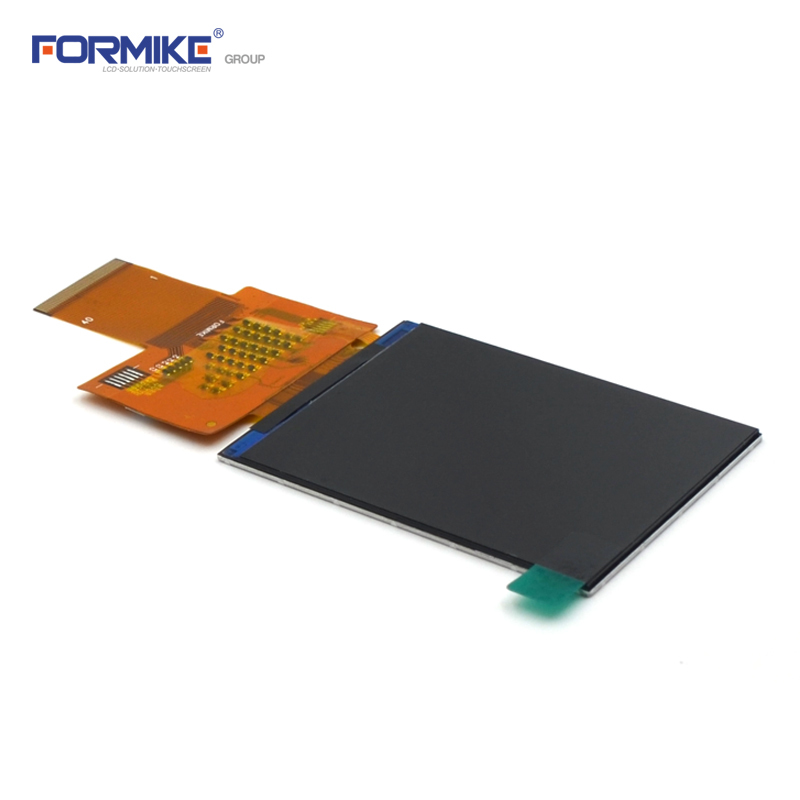

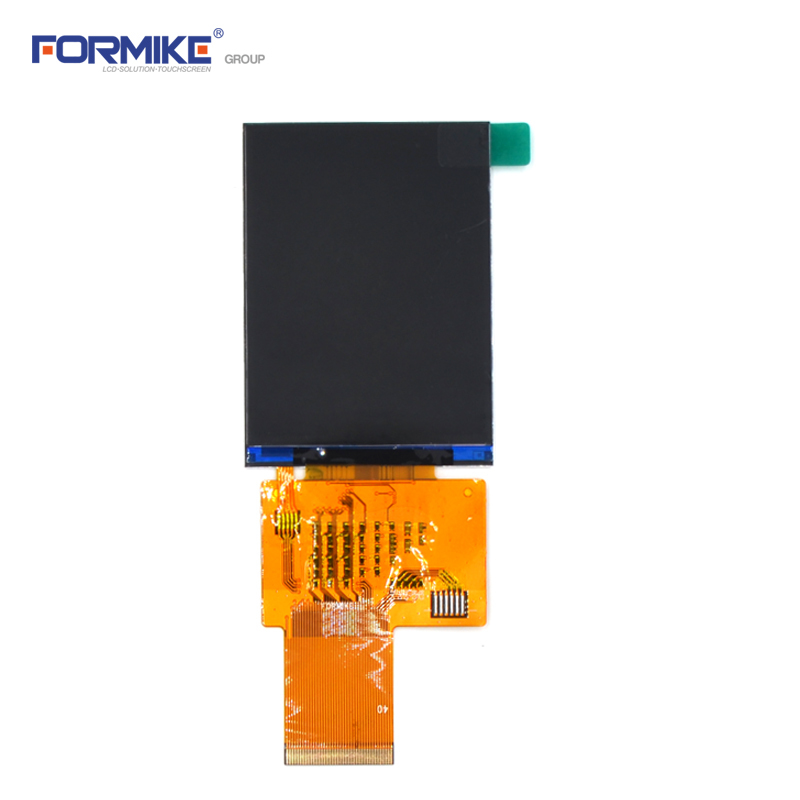

* KWH028Q34-C01 is a small Transmissive type color active matrix liquid crystal display (LCD).

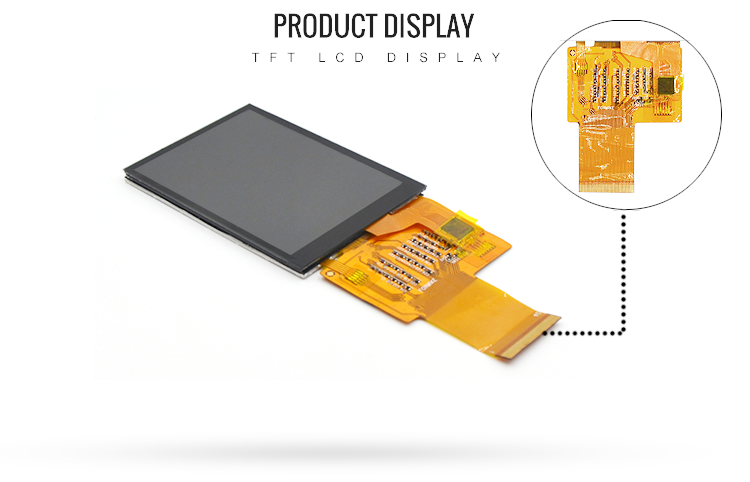

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.

* It is 240x320 resolution TFT LCD module.

* Backlight with different brightness options from 200 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
