Specifications
Supply Ability :
5000000000 pieces/year
Touch Screen :
Without (Optional with touch screen)
Operating Temperature :
-20°C to 70°C
MOQ :
1 piece
Product Name :
240*320 QVGA TFT 2.8 Inch Display Small LCD Screen
Interface :
37Pin, 8/16 BIT MCU
Supply Voltage :
3.2V
Viewing Angle :
6 O'Clock
Controller Ic :
ILI9341
Place of Origin :
China
Payment Terms :
T/T, L/C, Credit card, Cash
Color :
Color
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Display Type :
Small TFT LCD Screen Display
Display Size :
2.8inch
Model Number :
KWH028Q27-F01
Packaging Details :
Tray + Inner Box + Carton
Resolution :
240*320
Brand Name :
Formike
Dimensions :
50.00mm x 69.20mm x 2.45mm
Description

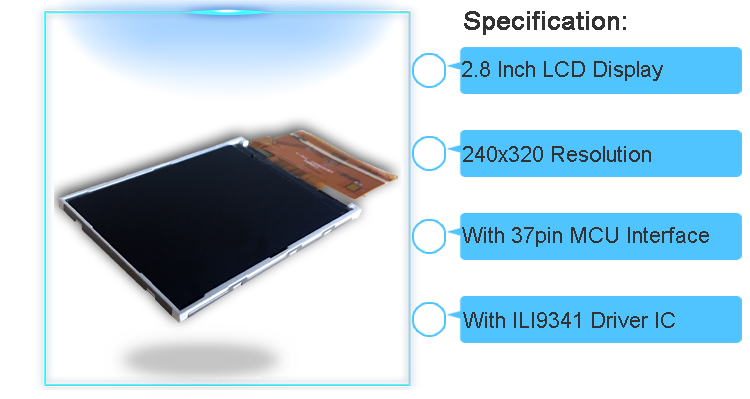

240*320 QVGA TFT 2.8 Inch Display Small LCD Screen

240x320 QVGA monochrome 2.8 Inch TFT Display Small LCD Screen 3.2V

Product Name 240*320 QVGA TFT 2.8 Inch Display Small LCD Screen
LCD Size 2.8 Inch TFT LCD Display Module
Display Mode Transmissive
Resolution 240x320
Outline Dimension (mm) 50.00x69.20x2.45
Active Area (mm) 43.20x57.60
Dot pitch (mm) 0.18x0.18
Viewing Direction 6 O'Clock
Interface 8 / 16 BIT MCU Interface, 37 Pin
Driver IC ILI9341
Brightness (Cd/m2) 320
Contrast Ratio 300:1
Backlight 4 White LED In Parallel

Backlight Supply

(Current/Voltage)

 60mA 3.2V
Touch Screen Without (Optional with)

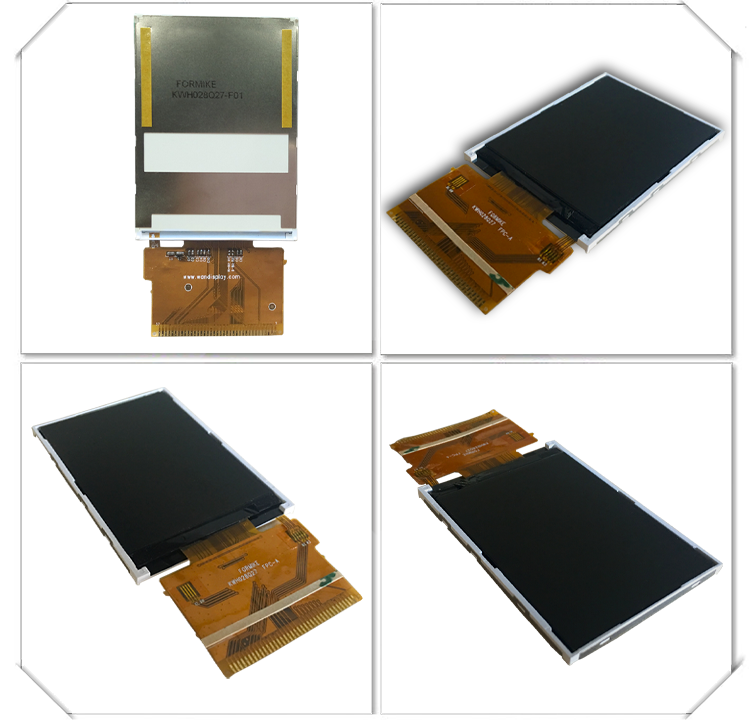

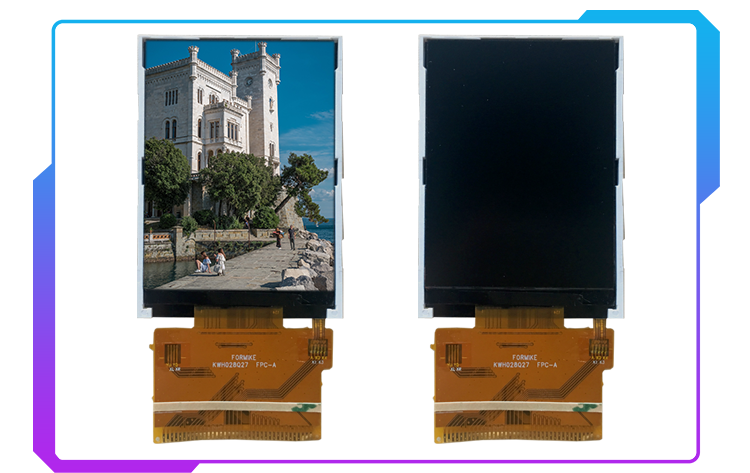

* KWH028Q27-F01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 240x320 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
